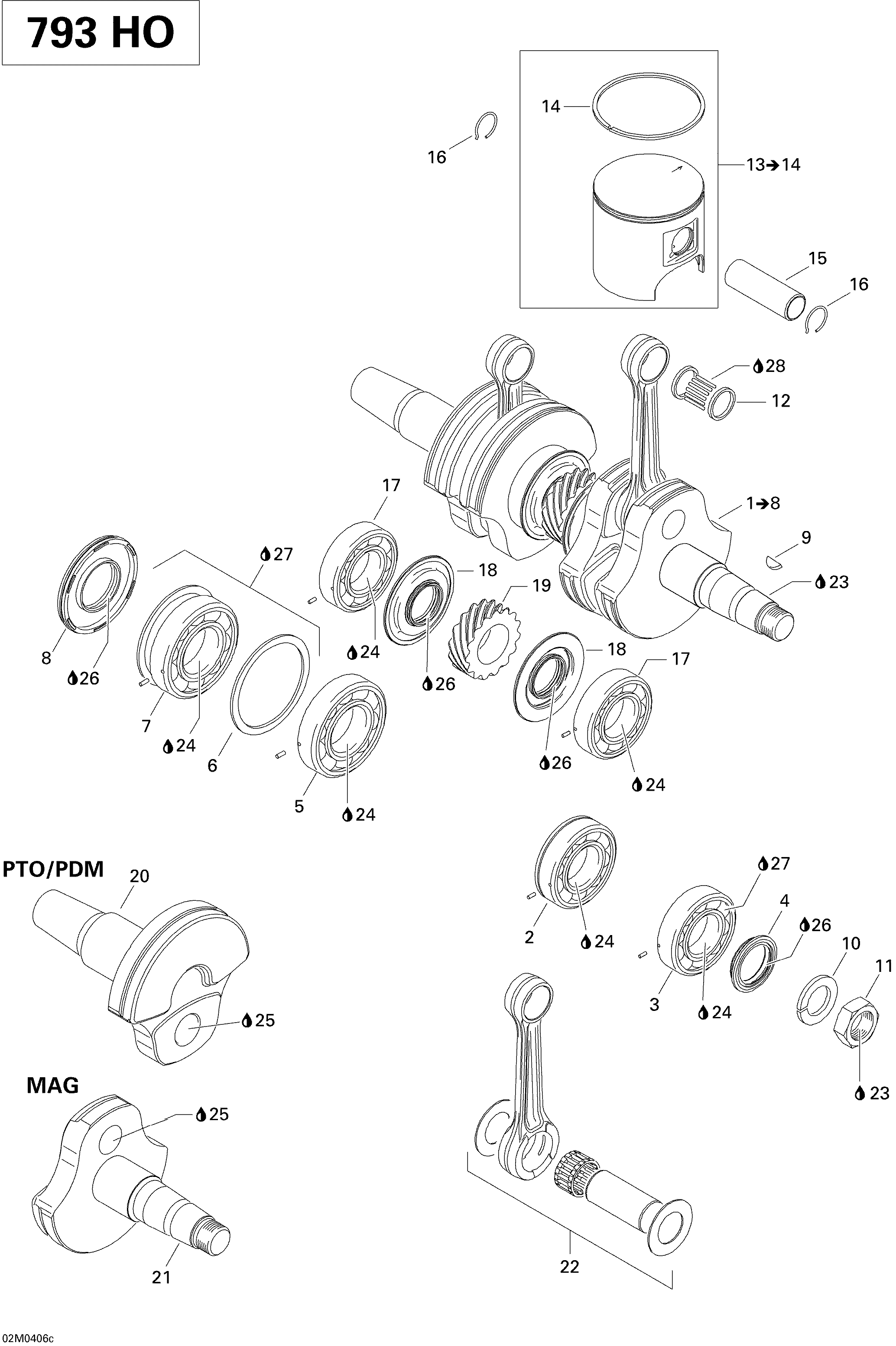

01- Crankshaft And Pistons (793 HO) для BRP Ski-Doo GSX 800 HO - 2004
![](/wa-data/public/shop/sheme/bombardier/ski-doo/e4e0b773-4b6b-469a-a1c6-a226b1d0e5f6.png)
-
№АртикулНазвание
-
1420889673 Crankshaft. INCLUDES ITEMS 1 TO 8Crankshaft. INCLUDES ITEMS 1 TO 8
-
2420832638 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931792 Oil SealOil Seal
-
5420832608 Ball BearingBall Bearing
-
6420926190 WasherWasher
-
7420832700 Ball BearingBall Bearing
-
8420931285 Oil SealOil Seal
-
9420246015 Woodruff KeyWoodruff Key
-
10420945759 Lock WasherLock Washer
-
11420842230 Hex Nut M22 X 1,5Hex Nut M22 X 1,5
-
12420832425 Needle BearingNeedle Bearing
-
13420889451 Piston Ass'Y (81,87). INCLUDES ITEMS 13 TO 14Piston Ass'Y (81,87). INCLUDES ITEMS 13 TO 14
-
14420815218 Semi Trapez RingSemi Trapez Ring
-
15420916370 Gudgeon PinGudgeon Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
20420819032 Crankshaft (PTO)Crankshaft (PTO)
-
21420819061 Crankshaft (Mag)Crankshaft (Mag)
-
22420889108 Rod Repair Kit (Mag)Rod Repair Kit (Mag)
-
420889109 Rod Repair Kit (PTO)Rod Repair Kit (PTO)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26420899271 Petamo Grease, Ghy133N, 400 GPetamo Grease, Ghy133N, 400 G
-
27293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
-
28413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
