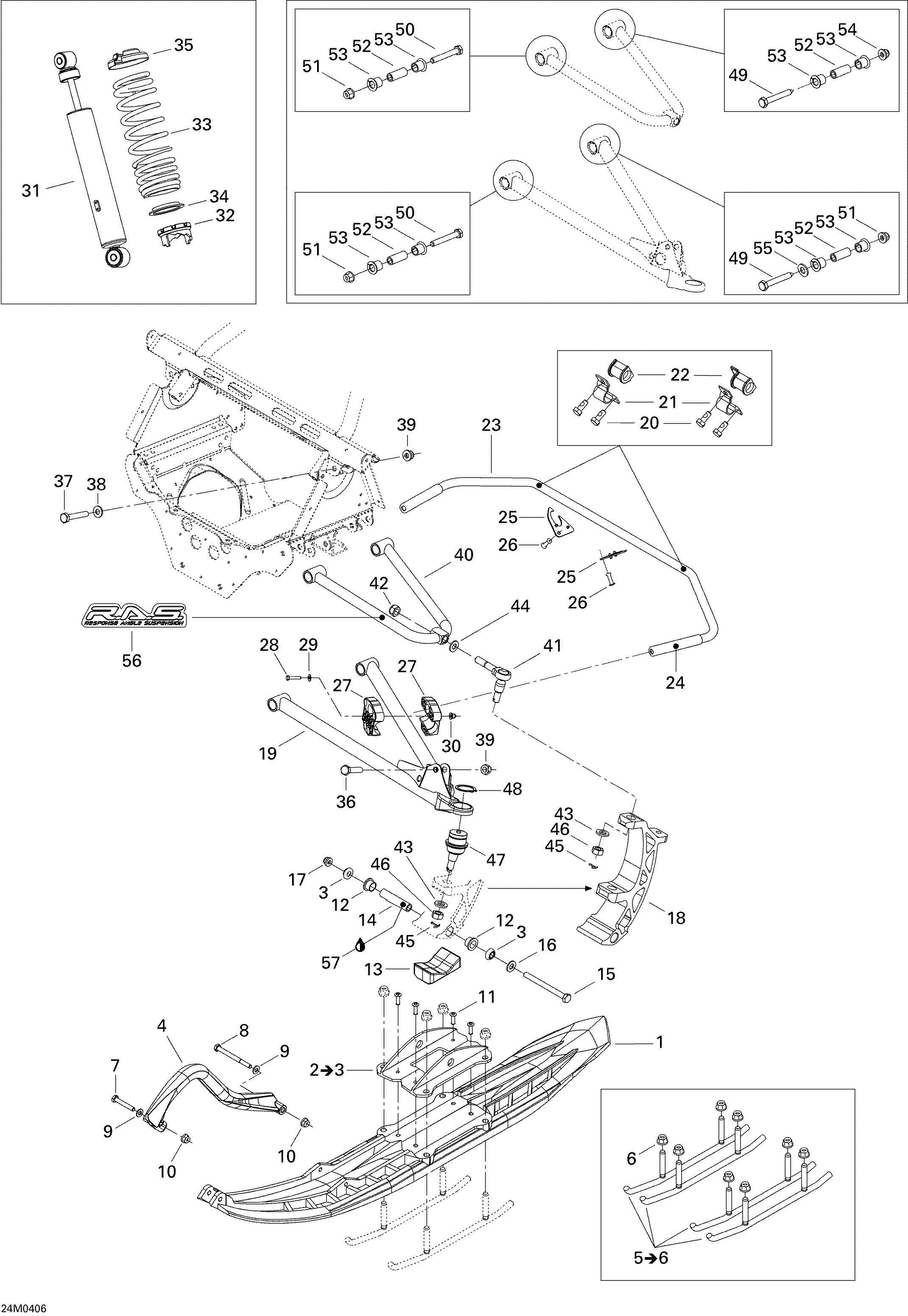

07- Front Suspension And Ski для BRP Ski-Doo GSX 800 HO - 2004
-
№АртикулНазвание
-
1505070727 Precision Ski (Black)Precision Ski (Black)
-
505071031 Precision Ski (Blue). GSX LTD 800 HO (SILVER)Precision Ski (Blue). GSX LTD 800 HO (SILVER)
-
505071031 Precision Ski (Blue). GSX LTD 1+1 800 HO (SILVER)Precision Ski (Blue). GSX LTD 1+1 800 HO (SILVER)
-
2505070764 Bridge Ass'Y. INCLUDES ITEMS 2 TO 3Bridge Ass'Y. INCLUDES ITEMS 2 TO 3
-
3505070001 BushingBushing
-
4505070963 Handle (Black)Handle (Black)
-
860507600 Handle (Blue). GSX LTD 800 HO (SILVER)Handle (Blue). GSX LTD 800 HO (SILVER)
-
860507600 Handle (Blue). GSX LTD 1+1 800 HO (SILVER)Handle (Blue). GSX LTD 1+1 800 HO (SILVER)
-
5860504900 Runner 6 Carbides Kit (Precision Ski). INCLUDES ITEMS 5 TO 6Runner 6 Carbides Kit (Precision Ski). INCLUDES ITEMS 5 TO 6
-
6233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
7207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
8207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11293150090 Pop Rivet 1/4''Pop Rivet 1/4''
-
12505070954 CushionCushion
-
13505070671 Ski StopperSki Stopper
-
14506133300 SpacerSpacer
-
15250000001 Hex Screw M10 X 110Hex Screw M10 X 110
-
16732900049 WasherWasher
-
17732610084 Flanged Nut M10Flanged Nut M10
-
18505071232 Ski LegSki Leg
-
19860509700 RH Lower Arm Ass'Y. Includes 19, 47 and 48RH Lower Arm Ass'Y. Includes 19, 47 and 48
-
505071290 RH Lower ArmRH Lower Arm
-
19860509600 LH Lower Arm Ass'Y. Includes 19, 47 and 48LH Lower Arm Ass'Y. Includes 19, 47 and 48
-
505071293 LH Lower ArmLH Lower Arm
-
20250000118 Hex Screw With NylonHex Screw With Nylon
-
21506095800 ClampClamp
-
22505070664 LH Torsion Bar BushingLH Torsion Bar Bushing
-
505070912 RH Torsion Bar BushingRH Torsion Bar Bushing
-
23505070948 StabilisatorStabilisator
-
24505071039 Bar End SwayBar End Sway
-
25505071253 PlugPlug
-
26293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
27505071268 RH Slider HalfRH Slider Half
-
505071269 LH Slider HalfLH Slider Half
-
28207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
29391301700 Flat WasherFlat Washer
-
30233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
31505071202 Front ShockFront Shock
-
32503183700 CamCam
-
33505071264 SpringSpring
-
34503187500 Spring GuideSpring Guide
-
35503140600 Spring StopperSpring Stopper
-
36207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
37207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
38732900049 WasherWasher
-
39233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
40505071276 Upper ArmUpper Arm
-
41505071483 Ball Upper JointBall Upper Joint
-
42250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
43234021410 Flat Washer 12 mmFlat Washer 12 mm
-
44503189276 WasherWasher
-
45211400017 Cotter PinCotter Pin
-
46232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
47505071422 Ball JointBall Joint
-
48293370035 CirclipCirclip
-
49250000114 Cone Screw M10 X 75Cone Screw M10 X 75
-
50207007044 Hex Screw M10 X 70Hex Screw M10 X 70
-
51233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
52505070567 BushingBushing
-
53505070566 Arm BushingArm Bushing
-
54233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
55503189564 WasherWasher
-
56516001704 R.A.S. Suspension DecalR.A.S. Suspension Decal
-
57219700417 Synthetic Grease, 400gSynthetic Grease, 400g
