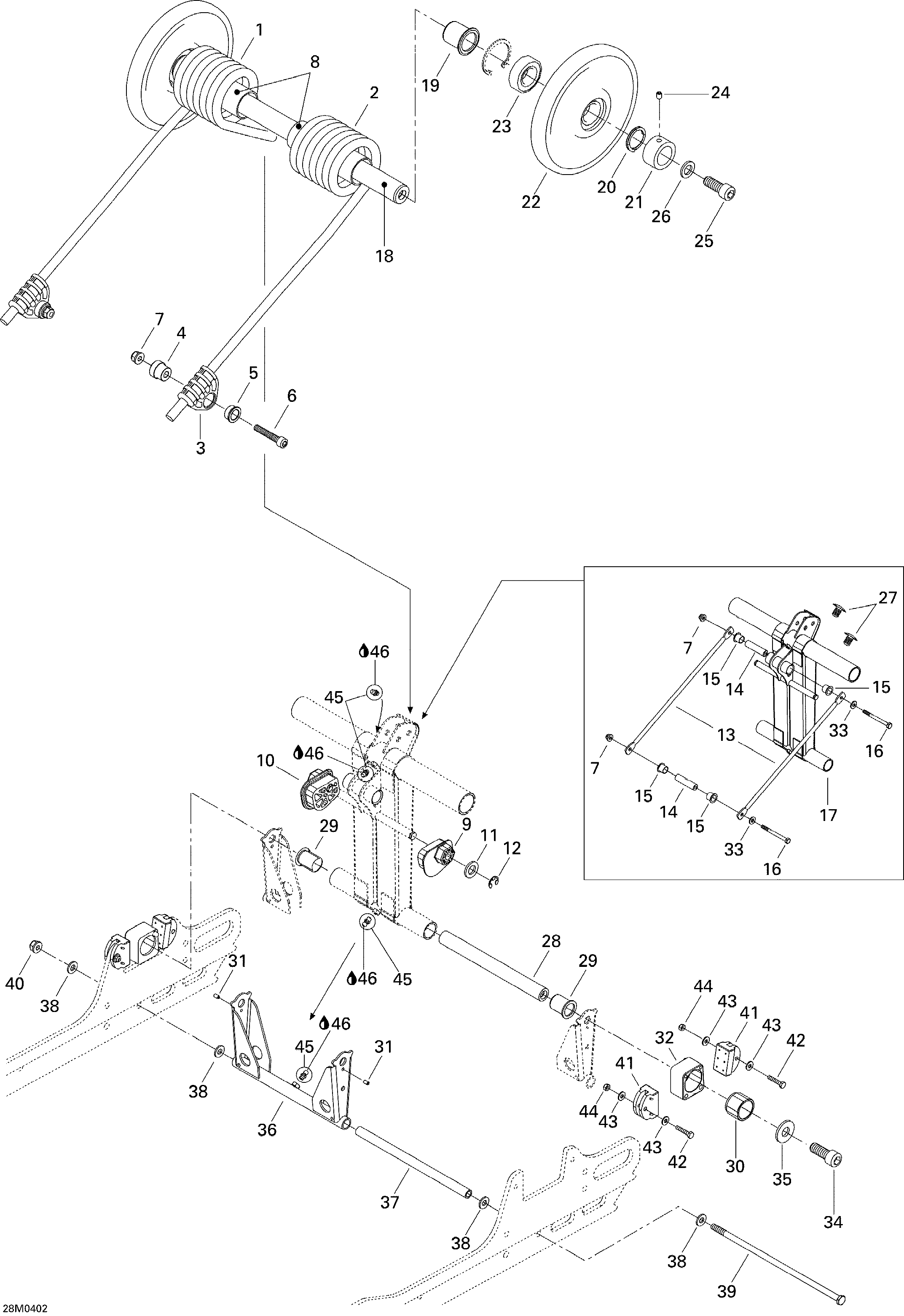

08- Rear Arm Legend для BRP Ski-Doo Legend 550F - 2004
-
№АртикулНазвание
-
1503189902 R.h. SpringR.h. Spring
-
1503189674 R.h. Spring. GTR.h. Spring. GT
-
2503189904 L.h. SpringL.h. Spring
-
2503189675 L.h. Spring. GTL.h. Spring. GT
-
3503189657 Spring supportSpring support
-
4503188934 Spring axle guideSpring axle guide
-
5503188929 Cushion retainerCushion retainer
-
6205084544 Socket head screw M8 x 45Socket head screw M8 x 45
-
7233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
8503189105 Plastic bushingPlastic bushing
-
9503190023 L.h. cam adjusterL.h. cam adjuster
-
10503190022 R.h. cam adjusterR.h. cam adjuster
-
11234021410 Flat washer 12 mmFlat washer 12 mm
-
12293370013 CirclipCirclip
-
13503189726 Throttle rodThrottle rod
-
13503190111 Throttle rod. GTThrottle rod. GT
-
14503189815 Axle barAxle bar
-
15506150200 CushionCushion
-
16207088544 Hex screw M8 x 85Hex screw M8 x 85
-
16207089044 Hex flanged screw M8 x 90. GTHex flanged screw M8 x 90. GT
-
17503190110 Rear armRear arm
-
18503189412 Upper axleUpper axle
-
19503189288 CushionCushion
-
20503189146 Axle springAxle spring
-
21503189147 Retainer ringRetainer ring
-
22503190269 Wheel 165 ass'y. Includes Items 22 to 23Wheel 165 ass'y. Includes Items 22 to 23
-
23503189567 Ball bearing 6205Ball bearing 6205
-
24206260844 Socket head set screw M6 x 8Socket head set screw M6 x 8
-
25205523544 Socket head screw M12 x 35Socket head screw M12 x 35
-
26503189276 WasherWasher
-
27414644300 DartDart
-
28503189413 Rear lower axleRear lower axle
-
29503189286 CushionCushion
-
30503189488 Block guideBlock guide
-
31250400005 Dowel pin 4 x 8 mmDowel pin 4 x 8 mm
-
32503189152 L.h. blockL.h. block
-
32503189170 R.h. blockR.h. block
-
33224081201 Flat washerFlat washer
-
34205523544 Socket head screw M12 x 35 (scotch grip)Socket head screw M12 x 35 (scotch grip)
-
35503189276 Flat washer 12 mmFlat washer 12 mm
-
36503189819 Pivot armPivot arm
-
37503189156 Pivot arm axlePivot arm axle
-
38503189157 WasherWasher
-
39732601198 Long bolt M8Long bolt M8
-
40233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
41503189608 Block stopperBlock stopper
-
42207053044 Hex screw M5 x 30Hex screw M5 x 30
-
43250200016 Flat washer 5 mmFlat washer 5 mm
-
44232551414 Elastic stop nut M5Elastic stop nut M5
-
45408200700 Grease fittingGrease fitting
-
46219700417 Synthetic Grease, 400gSynthetic Grease, 400g
