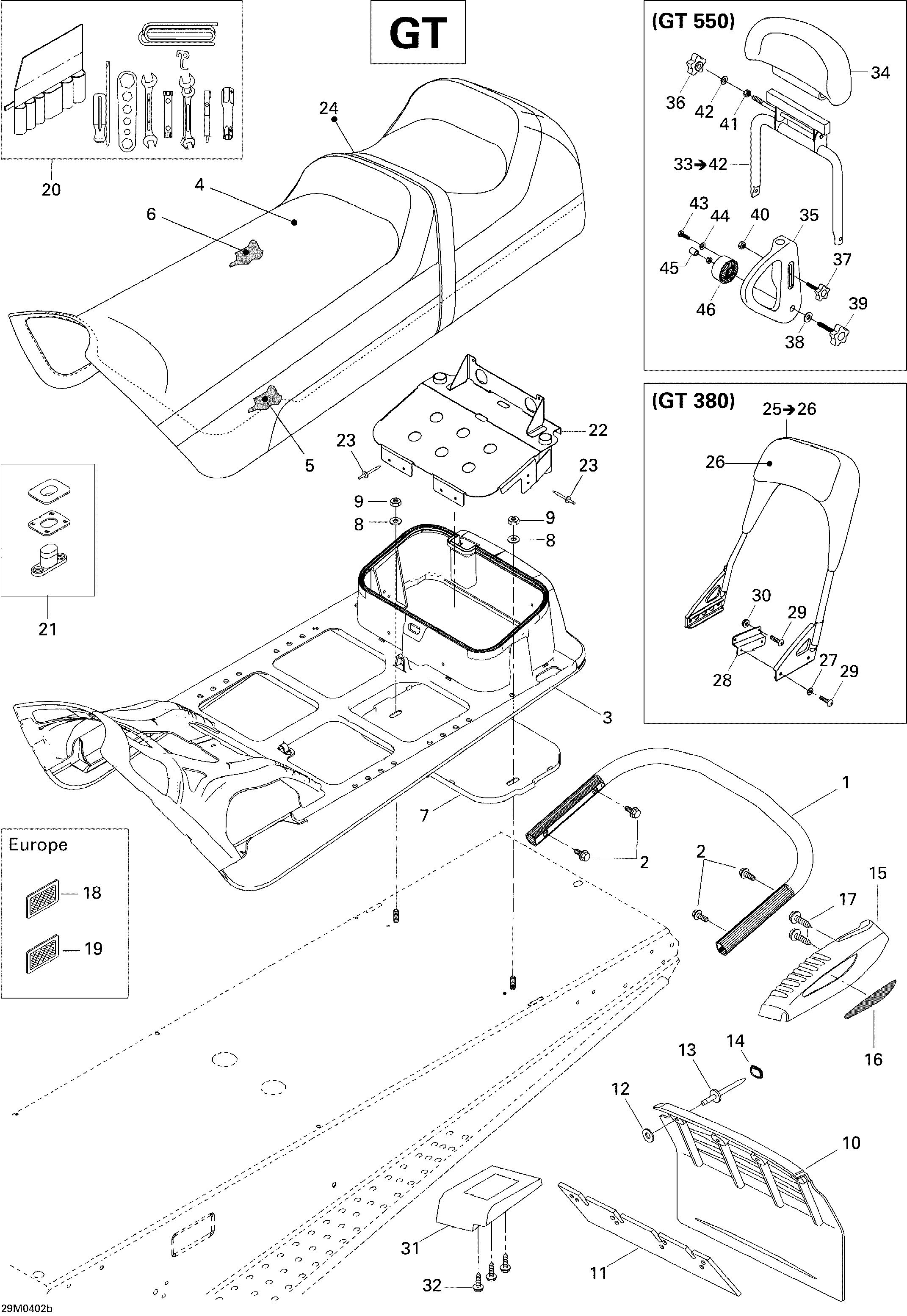

09- Seat (550F GT) для BRP Ski-Doo Legend 550F - 2004
-
№АртикулНазвание
-
1517243800 Rear BumperRear Bumper
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3510003980 Seat BaseSeat Base
-
4510004070 Seat CoverSeat Cover
-
5510003944 Seat FoamSeat Foam
-
6510004256 Seat FoamSeat Foam
-
7572107601 Under ChestUnder Chest
-
8234082410 Flat Washer 8 mmFlat Washer 8 mm
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10520000228 Snow Guard (Full Moon)Snow Guard (Full Moon)
-
11572108200 ReinforcementReinforcement
-
12517225900 Flat WasherFlat Washer
-
13293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
14415073300 CapCap
-
15861780300 R.H. MouldingR.H. Moulding
-
15861780400 L.H. MouldingL.H. Moulding
-
16516000237 R.H. Reflector (Red)R.H. Reflector (Red)
-
16516000241 R.H. Rear Reflector (Yellow). EuropeR.H. Rear Reflector (Yellow). Europe
-
16516000238 LH Reflector (Red)LH Reflector (Red)
-
16516000242 L.H. Rear Reflector (Yellow). EuropeL.H. Rear Reflector (Yellow). Europe
-
17243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
18520000271 Amber Reflector. EuropeAmber Reflector. Europe
-
19529035881 Tool KitTool Kit
-
20415037900 White Reflector. EuropeWhite Reflector. Europe
-
21414728000 Seat BuckleSeat Buckle
-
22510003976 Seat SupportSeat Support
-
24510004038 Seat BeltSeat Belt
-
31572088700 Footrest RHFootrest RH
-
31572088800 Footrest LHFootrest LH
-
32243141640 Hex. Plastite Screw M5 x 16Hex. Plastite Screw M5 x 16
-
33510004072 Backrest Ass'y. GT 550F, Includes Items 33 to 42Backrest Ass'y. GT 550F, Includes Items 33 to 42
-
34510004073 Cover. GT 550FCover. GT 550F
-
35510003542 Arm RH. GT 550FArm RH. GT 550F
-
35510003607 Arm LH. GT 550FArm LH. GT 550F
-
36510003532 Fem. Handle M8 x 1.25 mm. GT 550FFem. Handle M8 x 1.25 mm. GT 550F
-
37510003533 Male Handle M8 x 35 mm. GT 550FMale Handle M8 x 35 mm. GT 550F
-
38732900050 Washer. GT 550FWasher. GT 550F
-
39510003534 Male Handle M12 x 50 mm. GT 550FMale Handle M12 x 50 mm. GT 550F
-
40510003576 Hex. Nut. GT 550FHex. Nut. GT 550F
-
41510003578 Hex. Nut. GT 550FHex. Nut. GT 550F
-
42510003584 Lock Washer. GT 550FLock Washer. GT 550F
-
43207182544 Hex Screw M8 x 25. GT 550FHex Screw M8 x 25. GT 550F
-
44234181601 Lock Washer 8 mm. GT 550FLock Washer 8 mm. GT 550F
-
45510003628 Hose. GT 550FHose. GT 550F
-
46510003543 Pivot (40 Tooth). GT 550FPivot (40 Tooth). GT 550F
