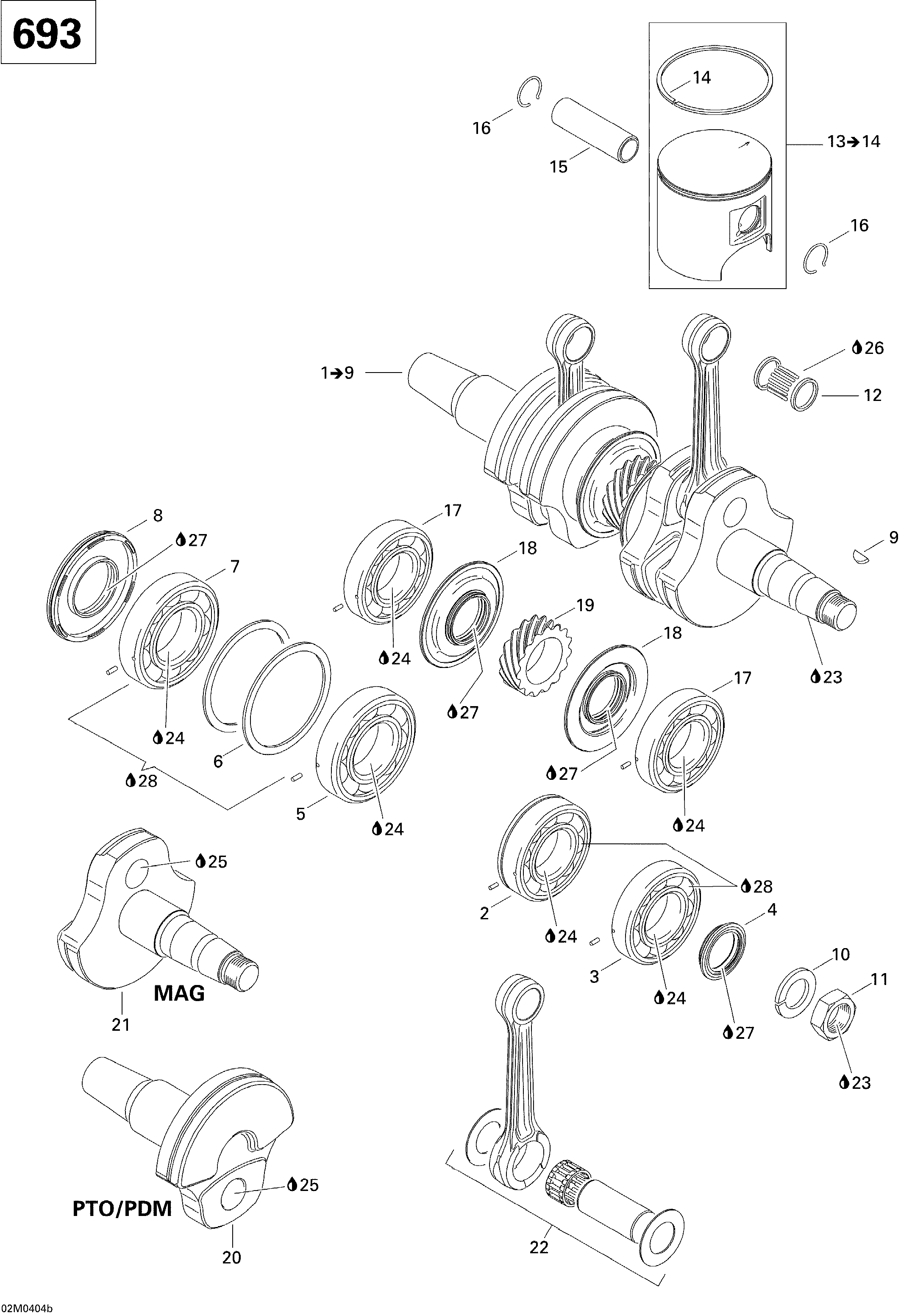

01- Crankshaft And Pistons (693) для BRP Ski-Doo Legend 700 - 2004
-
№АртикулНазвание
-
1420889091 Crankshaft Ass'Y. INCLUDES ITEMS 1 TO 9Crankshaft Ass'Y. INCLUDES ITEMS 1 TO 9
-
2420832634 Ball BearingBall Bearing
-
3420832575 Ball Bearing 6207Ball Bearing 6207
-
4420931792 Oil SealOil Seal
-
5420832606 Ball Bearing 6207Ball Bearing 6207
-
6420926190 WasherWasher
-
7420832600 Ball Bearing 6208Ball Bearing 6208
-
8420931285 Oil SealOil Seal
-
9420246015 Woodfuff KeyWoodfuff Key
-
10420945759 Lock Washer 22 mmLock Washer 22 mm
-
11420842234 Hex Nut M22Hex Nut M22
-
12420832425 Needle BearingNeedle Bearing
-
13420888298 Piston Ass'Y (1 Ring 77.88 mm). INCLUDES ITEMS 13 TO 14Piston Ass'Y (1 Ring 77.88 mm). INCLUDES ITEMS 13 TO 14
-
14420815226 Semi-Trapez RingSemi-Trapez Ring
-
15420916370 Gudgeon PinGudgeon Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball Bearing 6207Ball Bearing 6207
-
18420931455 Oil SealOil Seal
-
19420834355 Central Gear 15 TeethCentral Gear 15 Teeth
-
20420818709 Crankshaft (PTO Side)Crankshaft (PTO Side)
-
21420818739 Crankshaft (Mag Side)Crankshaft (Mag Side)
-
22420889093 Rod Repair Kit (Mag Side)Rod Repair Kit (Mag Side)
-
420889094 Rod Repair Kit (PTO Side)Rod Repair Kit (PTO Side)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413707000 Molykote 111Molykote 111
-
27420899271 Petamo Grease, Ghy133N, 400 GPetamo Grease, Ghy133N, 400 G
-
28293550021 Isoflex Grease, 45 GIsoflex Grease, 45 G
