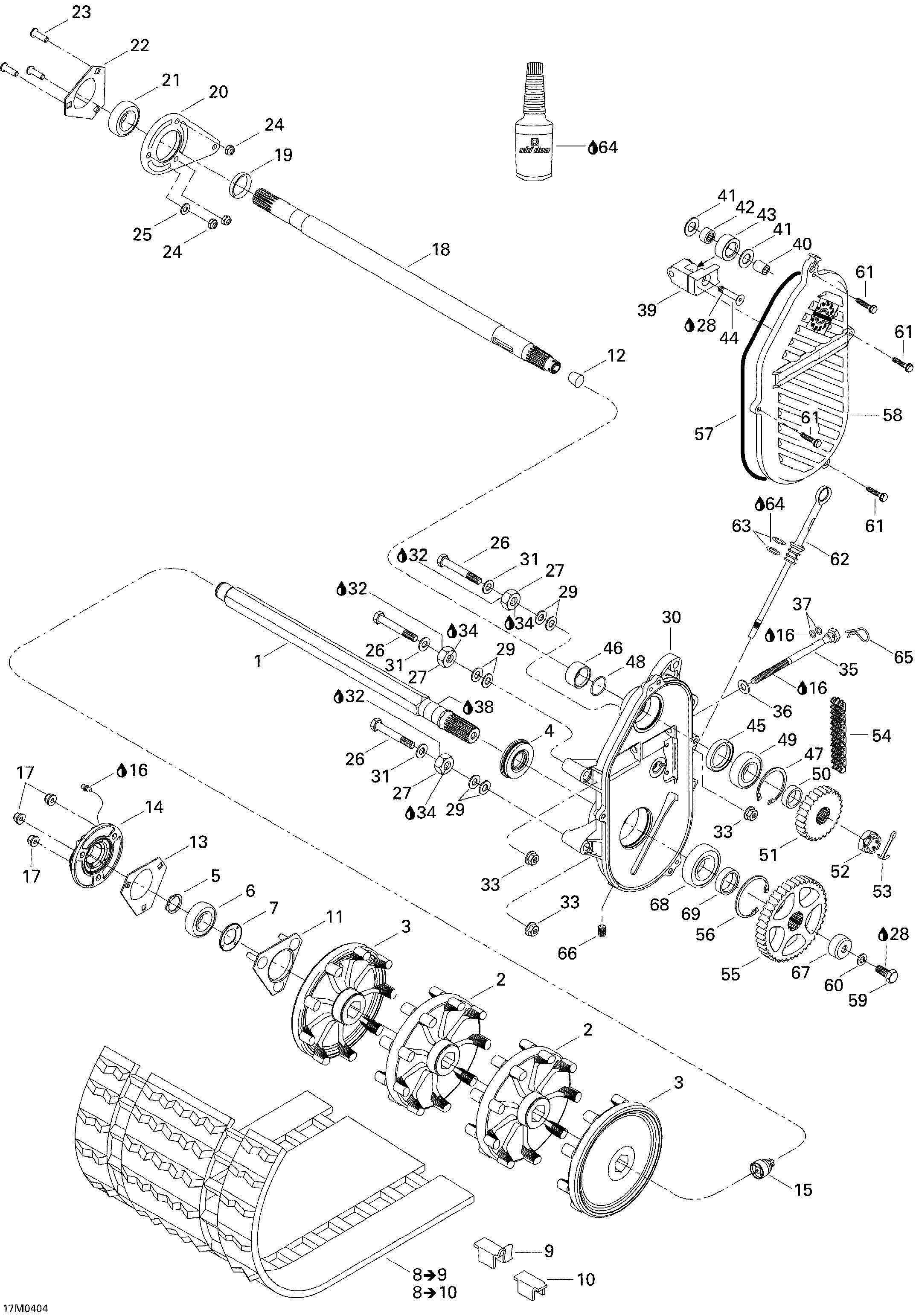

05- Drive System для BRP Ski-Doo Legend 700 - 2004
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket 9-TeethSprocket 9-Teeth
-
3504151782 Half Sprocket 9-TeethHalf Sprocket 9-Teeth
-
4504151918 Oil Seal Ass'YOil Seal Ass'Y
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8504151802 Track Ass'Y (15''X121''X 0.88''). Includes 8 to 10 / Legend SE, Legend Sport. TRACK (15'' X 121'' X 0.88'')Track Ass'Y (15''X121''X 0.88''). Includes 8 to 10 / Legend SE, Legend Sport. TRACK (15'' X 121'' X 0.88'')
-
504151935 Track Ass'Y. Includes 8 to 9 / Legend Se GT, Legend Sport GT. TRACK (15'' X 136'' X 0.88'')Track Ass'Y. Includes 8 to 9 / Legend Se GT, Legend Sport GT. TRACK (15'' X 136'' X 0.88'')
-
504152028 Track Ass'Y (15''X136''X 1.250''). Includes 8 to 9 / Legend Sport GT (Europe). TRACK (15'' X 136'' X 1.250'')Track Ass'Y (15''X136''X 1.250''). Includes 8 to 9 / Legend Sport GT (Europe). TRACK (15'' X 136'' X 1.250'')
-
9500003400 Guide Cleat. Legend SE, Legend SportGuide Cleat. Legend SE, Legend Sport
-
500003400 Guide Cleat. Legend Se GT, Legend Sport GT, Legend Sport Gt (Europe)Guide Cleat. Legend Se GT, Legend Sport GT, Legend Sport Gt (Europe)
-
10504151828 Cleat. Legend SE, Legend SportCleat. Legend SE, Legend Sport
-
11504151860 Bearing HousingBearing Housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152173 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
15504152040 Magnetic AdaptatorMagnetic Adaptator
-
16219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
17233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
18501026300 CountershaftCountershaft
-
19504149100 SpacerSpacer
-
2080044200 Casting SpacerCasting Spacer
-
21504152026 Ball BearingBall Bearing
-
22501025000 FlangeFlange
-
23205482546 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25234081410 Flat Washer 8 mmFlat Washer 8 mm
-
26207108044 Hex Screw M10 X 80Hex Screw M10 X 80
-
27504083800 SpacerSpacer
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29504073700 WasherWasher
-
30504152064 ChaincaseChaincase
-
31503183800 WasherWasher
-
32293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
33233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35732601314 Adjusting ScrewAdjusting Screw
-
36234001410 Flat Washer 10 mmFlat Washer 10 mm
-
37414484400 O-RingO-Ring
-
38219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
39504151951 Chain TensionerChain Tensioner
-
40504080200 SpacerSpacer
-
41504080300 WasherWasher
-
42405403000 Needle BearingNeedle Bearing
-
43414531300 RollerRoller
-
44732601144 ScrewScrew
-
45415049300 SealSeal
-
46507031500 SpacerSpacer
-
47371901700 Circlip (Interior)Circlip (Interior)
-
48414876700 O-RingO-Ring
-
49504152006 Ball BearingBall Bearing
-
50504147200 ShimShim
-
51504084300 25 Teeth Sprocket (Large). 25 TEETH / Legend SE25 Teeth Sprocket (Large). 25 TEETH / Legend SE
-
504139700 Sprocket Large (24 Teeth). 24 TEETH / Legend SportSprocket Large (24 Teeth). 24 TEETH / Legend Sport
-
504091000 Sprocket (23 Teeth). 23 TEETH / Legend SE GT, Legend GTSprocket (23 Teeth). 23 TEETH / Legend SE GT, Legend GT
-
52250000012 Hex Castellated Nut M20Hex Castellated Nut M20
-
53371006300 Cotter PinCotter Pin
-
54504151856 Drive Chain Large (76 Links). 76 LINKS / Legend SE, Legend Sport 700Drive Chain Large (76 Links). 76 LINKS / Legend SE, Legend Sport 700
-
504151857 Drive Chain Large (74 Links). 74 LINKS / Legend SE GT, Legend Sport GT, Legend Sport 500 SSDrive Chain Large (74 Links). 74 LINKS / Legend SE GT, Legend Sport GT, Legend Sport 500 SS
-
55504148500 43 Teeth Sprocket (Large)43 Teeth Sprocket (Large)
-
56415064300 Circlip (Interior)Circlip (Interior)
-
57415046400 O-RingO-Ring
-
58504152027 Chaincase CoverChaincase Cover
-
59207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
60234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
61210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
62504151703 Filler Cap Ass'YFiller Cap Ass'Y
-
63414969400 O-RingO-Ring
-
64413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
65414575600 Hair PinHair Pin
-
66504151921 Plug 1/8-27Plug 1/8-27
-
67504152104 CapCap
-
68504152005 Ball BearingBall Bearing
-
69504152058 ShimShim
