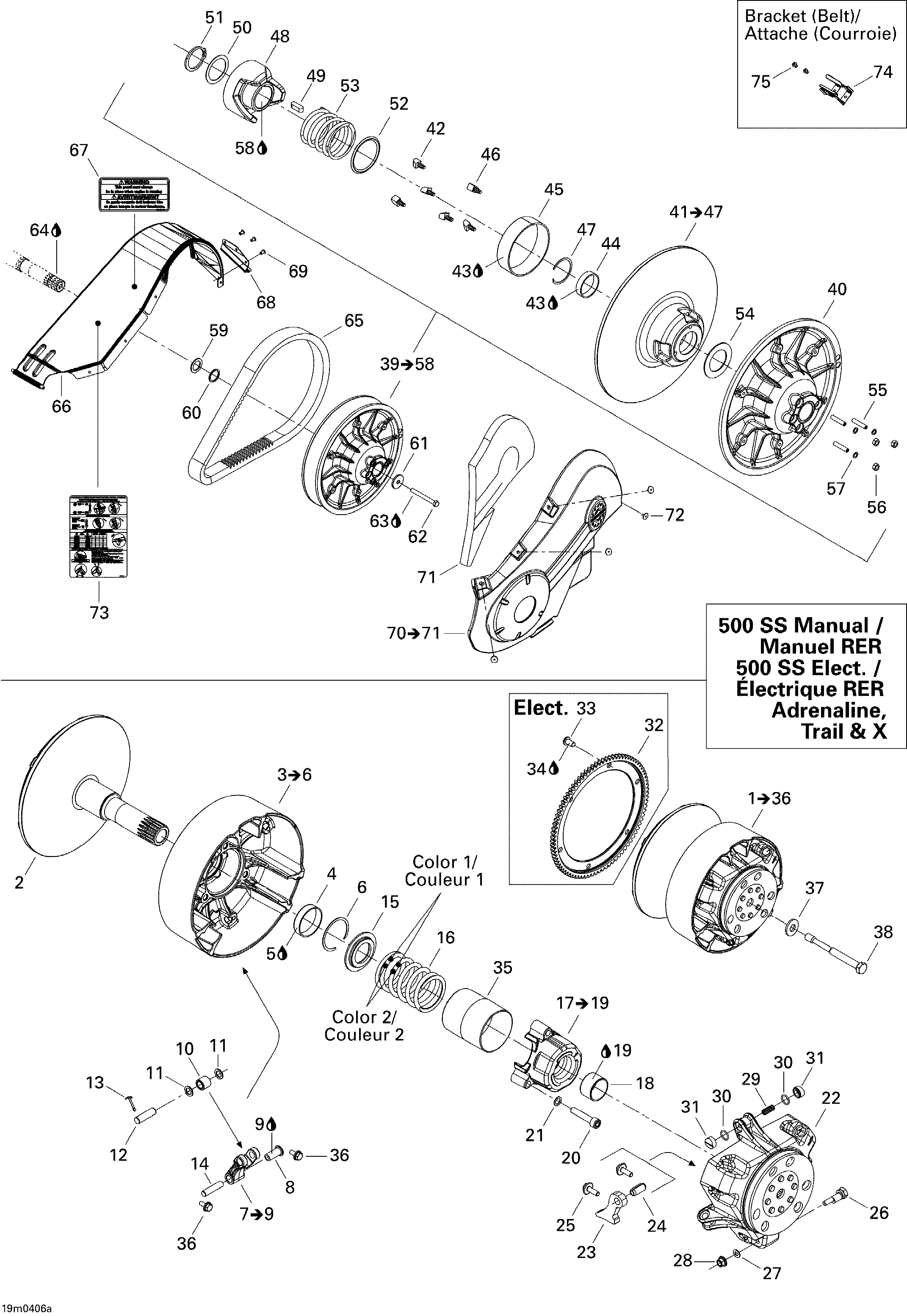

05- Pulley System 500 Ss Rer для BRP Ski-Doo MX Z 500SS Trail/Adrenaline - 2004
-
№АртикулНазвание
-
2417222294 Fixed Flange Ass'YFixed Flange Ass'Y
-
3417222181 Sliding Flange Ass'Y. Includes items 3 to 6Sliding Flange Ass'Y. Includes items 3 to 6
-
4417006900 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'Y. Includes items 7 to 9Lever Ass'Y. Includes items 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'YRoller Ass'Y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16417222371 Spring (Green/White)Spring (Green/White)
-
17417007500 Spring Cover Ass'Y. Includes items 17 to 19Spring Cover Ass'Y. Includes items 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor CupGovernor Cup
-
23417222515 Rampe 412Rampe 412
-
24250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
25250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
26417005500 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
29417005700 SpringSpring
-
30732401030 O-RingO-Ring
-
31417005800 Slider ShoeSlider Shoe
-
32417222669 Ring Gear. Electric startingRing Gear. Electric starting
-
33236281684 Hex Screw M8 X 16. Electric startingHex Screw M8 X 16. Electric starting
-
34293800005 Loctite 271, 10 ml. Electric startingLoctite 271, 10 ml. Electric starting
-
35417009205 Guard. Electric startingGuard. Electric starting
-
417009205 Guard. Manual startingGuard. Manual starting
-
36210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126499 Fixed FlangeFixed Flange
-
41417126763 Sliding Flange Ass'Y. Includes items 41 to 47Sliding Flange Ass'Y. Includes items 41 to 47
-
42417126538 Slider Shoe (Front)Slider Shoe (Front)
-
43413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
44417126772 CoussinetCoussinet
-
45417126562 CoussinetCoussinet
-
46417126539 Slider Shoe (Rear)Slider Shoe (Rear)
-
47371911200 CirclipCirclip
-
48417126747 CamCam
-
49414820800 KeyKey
-
50417126555 WasherWasher
-
51371903100 CirclipCirclip
-
52417126771 Abutment SwivelAbutment Swivel
-
53417126801 Spring (Green/Green)Spring (Green/Green)
-
54504141900 Thrust WasherThrust Washer
-
55206263044 Pressure Screw M6 X 30Pressure Screw M6 X 30
-
56232061414 Hex-Nut M6Hex-Nut M6
-
57420245370 WasherWasher
-
58293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
59504149100 SpacerSpacer
-
60504112000 ShimShim
-
61517302322 WasherWasher
-
62207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
63293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
64293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
65417300197 Drive Belt. 500 SSDrive Belt. 500 SS
-
66417300213 Belt GuardBelt Guard
-
67516001190 Warning LabelWarning Label
-
68417300216 Belt Guard BracketBelt Guard Bracket
-
69390402200 Rivet 3/16''Rivet 3/16''
-
70417300248 Side Protector Ass'Y. Includes items 70 to 71Side Protector Ass'Y. Includes items 70 to 71
-
71417300246 FoamFoam
-
72293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
73516001639 Suspension Adjustment DecalSuspension Adjustment Decal
-
74517281905 BracketBracket
-
75390402200 Rivet 3/16''Rivet 3/16''
