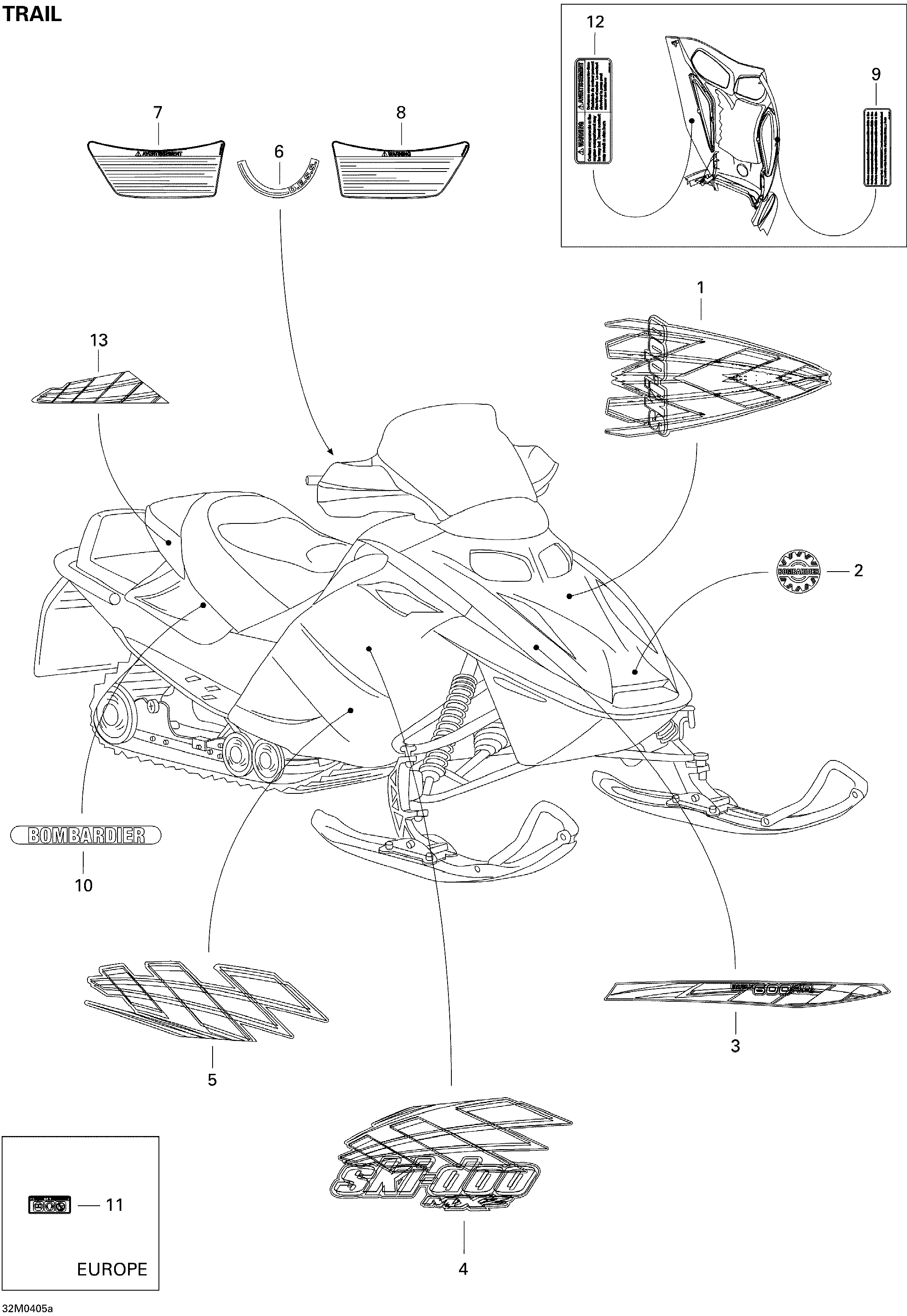

09- Decals (trail) для BRP Ski-Doo MX Z 500SS Trail/Adrenaline - 2004
-
№АртикулНазвание
-
1516001843 Hood DecalHood Decal
-
2516000983 Bombardier LogoBombardier Logo
-
3516001849 LH Hood Decal 600 H.O.. 600 H.O.LH Hood Decal 600 H.O.. 600 H.O.
-
516001851 LH Hood Decal 500 SS. 500 SSLH Hood Decal 500 SS. 500 SS
-
516001848 RH Hood Decal 600 H.O.. 600 H.O.RH Hood Decal 600 H.O.. 600 H.O.
-
516001850 RH Hood Decal 500 SS. 500 SSRH Hood Decal 500 SS. 500 SS
-
4516001852 RH Side DecalRH Side Decal
-
516001853 LH Side DecalLH Side Decal
-
5516001854 RH Lower Side DecalRH Lower Side Decal
-
516001855 LH Lower Side DecalLH Lower Side Decal
-
6516001335 DESS DecalDESS Decal
-
7516002023 Label Security (Starting) (English)Label Security (Starting) (English)
-
8516002024 Label Security (Starting) (French)Label Security (Starting) (French)
-
9516001928 Pending LabelPending Label
-
10516001980 Bombardier DecalBombardier Decal
-
11516001296 Decal (Europe). EuropeDecal (Europe). Europe
-
12516001297 Security LabelSecurity Label
-
13516001865 RH Cover DecalRH Cover Decal
-
516001866 LH Cover DecalLH Cover Decal
