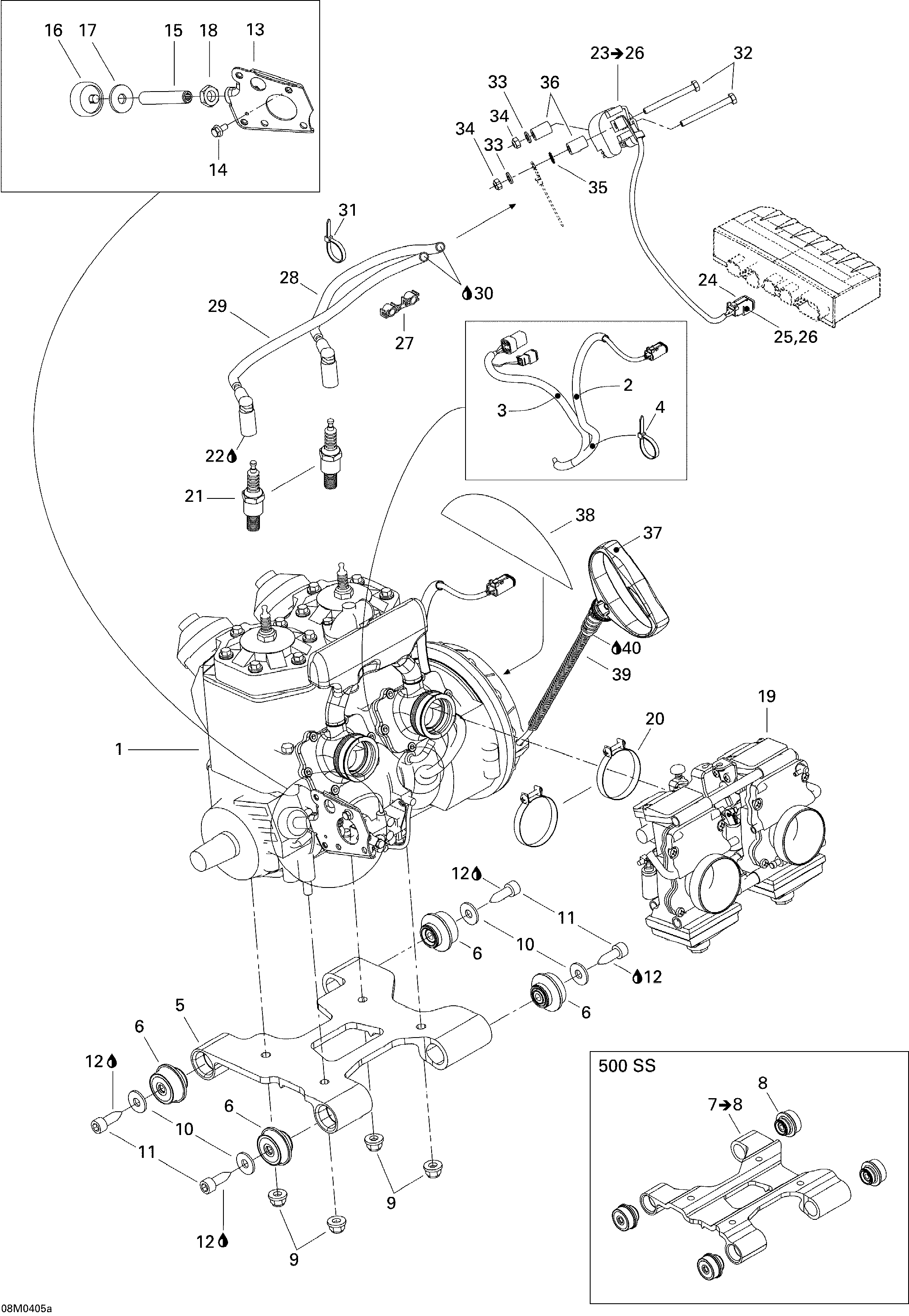

01- Engine Assembly And Support для BRP Ski-Doo MX Z 600 HO Renegade/Renegade X - 2004

№

Артикул

Название
1

400509747 Engine 593 H.O.. 600 H.O. Standard

Engine 593 H.O.. 600 H.O. Standard

0 ₽
400509748 Engine 593 H.O. (Rer). 600 H.O. RER

Engine 593 H.O. (Rer). 600 H.O. RER

0 ₽
400509749 Engine 593. 500 SS Standard

Engine 593. 500 SS Standard

0 ₽
400509750 Engine 593 (Rer). 500 SS RER

Engine 593 (Rer). 500 SS RER

0 ₽
400702622 Engine 793 H.O. (Rer). 800 H.O. RER

Engine 793 H.O. (Rer). 800 H.O. RER

0 ₽
2

409901800 Tubing

Tubing

530 ₽
3

415079900 Tubing

Tubing

980 ₽
4

293750002 Tie Rap 130 mm

Tie Rap 130 mm

380 ₽
5

512059754 Engine Support. 600 H.O. & 800 H.O.

Engine Support. 600 H.O. & 800 H.O.

0 ₽
6

512059691 Rubber Mount. 600 H.O. & 800 H.O.

Rubber Mount. 600 H.O. & 800 H.O.

16 700 ₽
7

512059841 Engine Support. 500 SS / Includes items 7 to 8

Engine Support. 500 SS / Includes items 7 to 8

0 ₽
8

512059691 Rubber Mount. 500 SS

Rubber Mount. 500 SS

16 700 ₽
9

233201414 Elastic Flanged Stop Nut M10

Elastic Flanged Stop Nut M10

810 ₽
10

506151251 Washer

Washer

430 ₽
11

250000094 Screw M10 X 30

Screw M10 X 30

2 100 ₽
12

413703400 Loctite 222, 10 Cc

Loctite 222, 10 Cc

1 810 ₽
13

512059840 Plate

Plate

2 400 ₽
14

207561244 Hex Flanged Screw M6 X 12 (Scotch Grip)

Hex Flanged Screw M6 X 12 (Scotch Grip)

670 ₽
15

250500007 Stopper Screw

Stopper Screw

2 590 ₽
16

512059610 Stopper

Stopper

1 500 ₽
17

512059057 Washer

Washer

130 ₽
18

232170411 Hex. Jam Nut M14

Hex. Jam Nut M14

540 ₽
19

403138740 Carburetor Kit Tm40-B238. 600 H.O.

Carburetor Kit Tm40-B238. 600 H.O.

93 500 ₽
403138760 Carburetor Kit Tm40-B289. 500 SS

Carburetor Kit Tm40-B289. 500 SS

95 340 ₽
403138761 Carburetor Kit Tm40-B292. 800 H.O.

Carburetor Kit Tm40-B292. 800 H.O.

110 060 ₽
20

512059835 Gemi Clamp

Gemi Clamp

990 ₽
21

512059552 Spark Plug NGK BR9ECS 0.5mm

Spark Plug NGK BR9ECS 0.5mm

6 110 ₽
22

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g

5 900 ₽
23

512059564 Ignition Coil. Includes items 23 to 26

Ignition Coil. Includes items 23 to 26

8 540 ₽
24

515175670 Female Terminal Housing (2 Circuits)

Female Terminal Housing (2 Circuits)

790 ₽
25

515175707 Female Lock (2 Circuits)

Female Lock (2 Circuits)

0 ₽
26

278000632 Female Terminal

Female Terminal

200 ₽
27

410914600 Plastic Clip (Spark Plug Wire)

Plastic Clip (Spark Plug Wire)

1 980 ₽
28

512059695 Cable Ass'Y (300 mm)

Cable Ass'Y (300 mm)

5 020 ₽
29

512059696 Cable Ass'Y (375 mm)

Cable Ass'Y (375 mm)

28 180 ₽
30

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g

5 900 ₽
31

414115200 Tie Rap 180 mm

Tie Rap 180 mm

60 ₽
32

207066044 Hex Screw M6 X 60

Hex Screw M6 X 60

240 ₽
33

234061410 Flat Washer

Flat Washer

690 ₽
34

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
35

394001900 External Tooth Lock Washer

External Tooth Lock Washer

20 ₽
36

517203200 Spacer

Spacer

1 510 ₽
37

572084400 Starter Grip

Starter Grip

4 830 ₽
38

512059893 Reflective Sheet. 800 H.O.

Reflective Sheet. 800 H.O.

270 ₽
39

512059535 Rope Guide

Rope Guide

1 180 ₽
40

413803200 Injection Oil (205 Liter)

Injection Oil (205 Liter)

0 ₽
