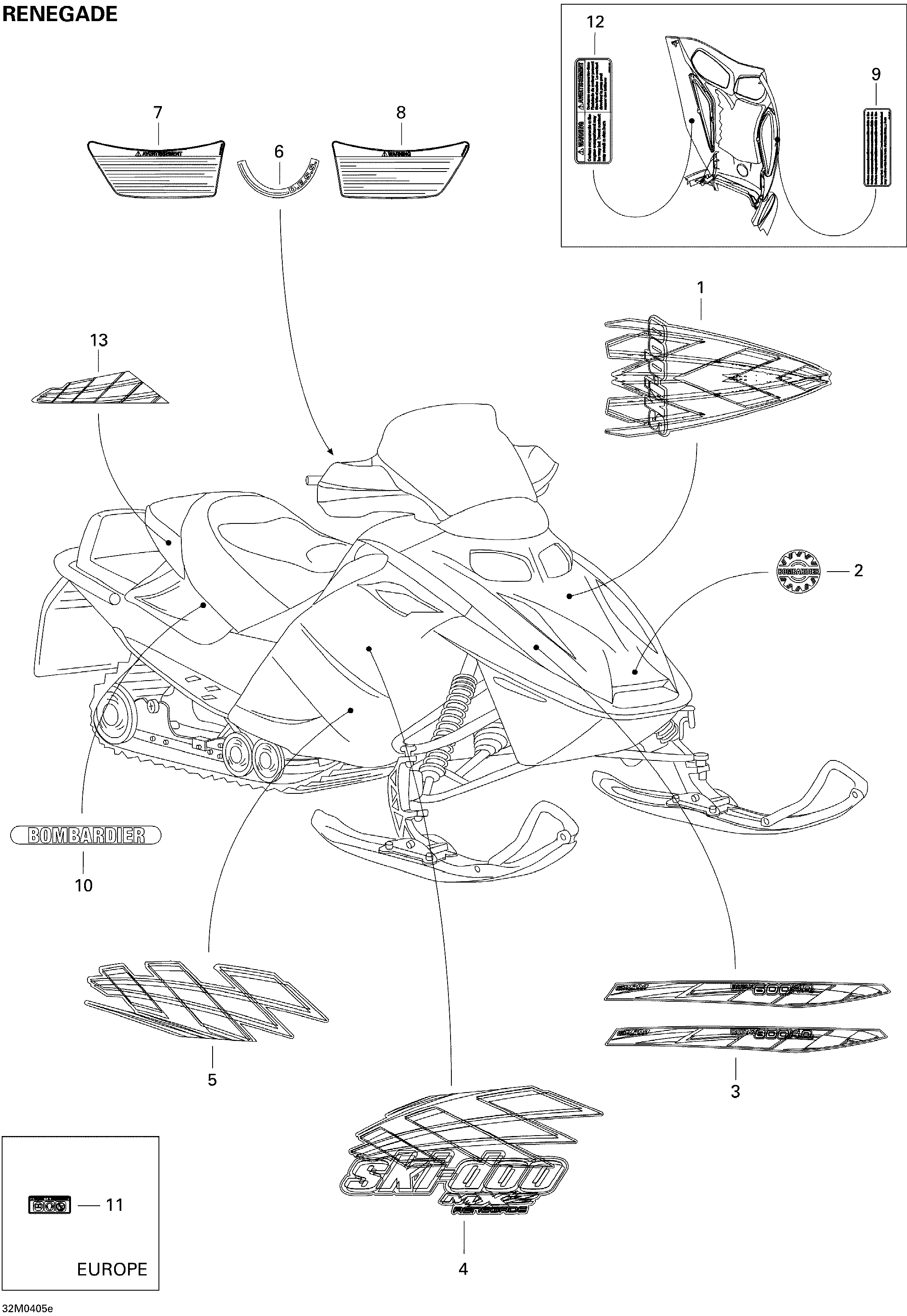

09- Decals (renegade) для BRP Ski-Doo MX Z 600 HO Renegade/Renegade X - 2004
-
№АртикулНазвание
-
1516001843 Hood Decal. (Black (B-160))Hood Decal. (Black (B-160))
-
516001856 Hood Decal. (Yellow (B-190))Hood Decal. (Yellow (B-190))
-
2516000983 Bombardier LogoBombardier Logo
-
3516001985 LH Hood Decal 600 H.O.. 600 H.O. With DPM & (Yellow (B-190))LH Hood Decal 600 H.O.. 600 H.O. With DPM & (Yellow (B-190))
-
516001987 LH Hood Decal 800 H.O.. 800 H.O. With DPM & (Yellow (B-190))LH Hood Decal 800 H.O.. 800 H.O. With DPM & (Yellow (B-190))
-
516001989 LH Hood Decal 600 H.O.. 600 H.O. With DPM & (Black (B-160))LH Hood Decal 600 H.O.. 600 H.O. With DPM & (Black (B-160))
-
516001991 LH Hood Decal 800 H.O.. 800 H.O. With DPM & (Black (B-160))LH Hood Decal 800 H.O.. 800 H.O. With DPM & (Black (B-160))
-
516001984 RH Hood Decal 600 H.O.. 600 H.O. With DPM & (Yellow (B-190))RH Hood Decal 600 H.O.. 600 H.O. With DPM & (Yellow (B-190))
-
516001986 RH Hood Decal 800 H.O.. 800 H.O. With DPM & (Yellow (B-190))RH Hood Decal 800 H.O.. 800 H.O. With DPM & (Yellow (B-190))
-
516001988 RH Hood Decal 600 H.O.. 600 H.O. With DPM & (Black (B-160))RH Hood Decal 600 H.O.. 600 H.O. With DPM & (Black (B-160))
-
516001990 RH Hood Decal 800 H.O.. 800 H.O. With DPM & (Black (B-160))RH Hood Decal 800 H.O.. 800 H.O. With DPM & (Black (B-160))
-
4516001992 RH Side DecalRH Side Decal
-
516001993 LH Side DecalLH Side Decal
-
5516001854 RH Lower Side DecalRH Lower Side Decal
-
516001855 LH Lower Side DecalLH Lower Side Decal
-
6516001335 DESS DecalDESS Decal
-
7516002023 Label Security (Starting) (English)Label Security (Starting) (English)
-
8516002024 Label Security (Starting) (French)Label Security (Starting) (French)
-
9516001928 Pending LabelPending Label
-
10516001980 Bombardier DecalBombardier Decal
-
11516001296 Decal (Europe). EuropeDecal (Europe). Europe
-
12516001297 Security LabelSecurity Label
-
13516001865 RH Cover Decal. (Black (B-160))RH Cover Decal. (Black (B-160))
-
516001867 RH Cover Decal. (Yellow (B-190))RH Cover Decal. (Yellow (B-190))
-
516001866 LH Cover Decal. (Black (B-160))LH Cover Decal. (Black (B-160))
-
516001868 LH Cover Decal. (Yellow (B-190))LH Cover Decal. (Yellow (B-190))
