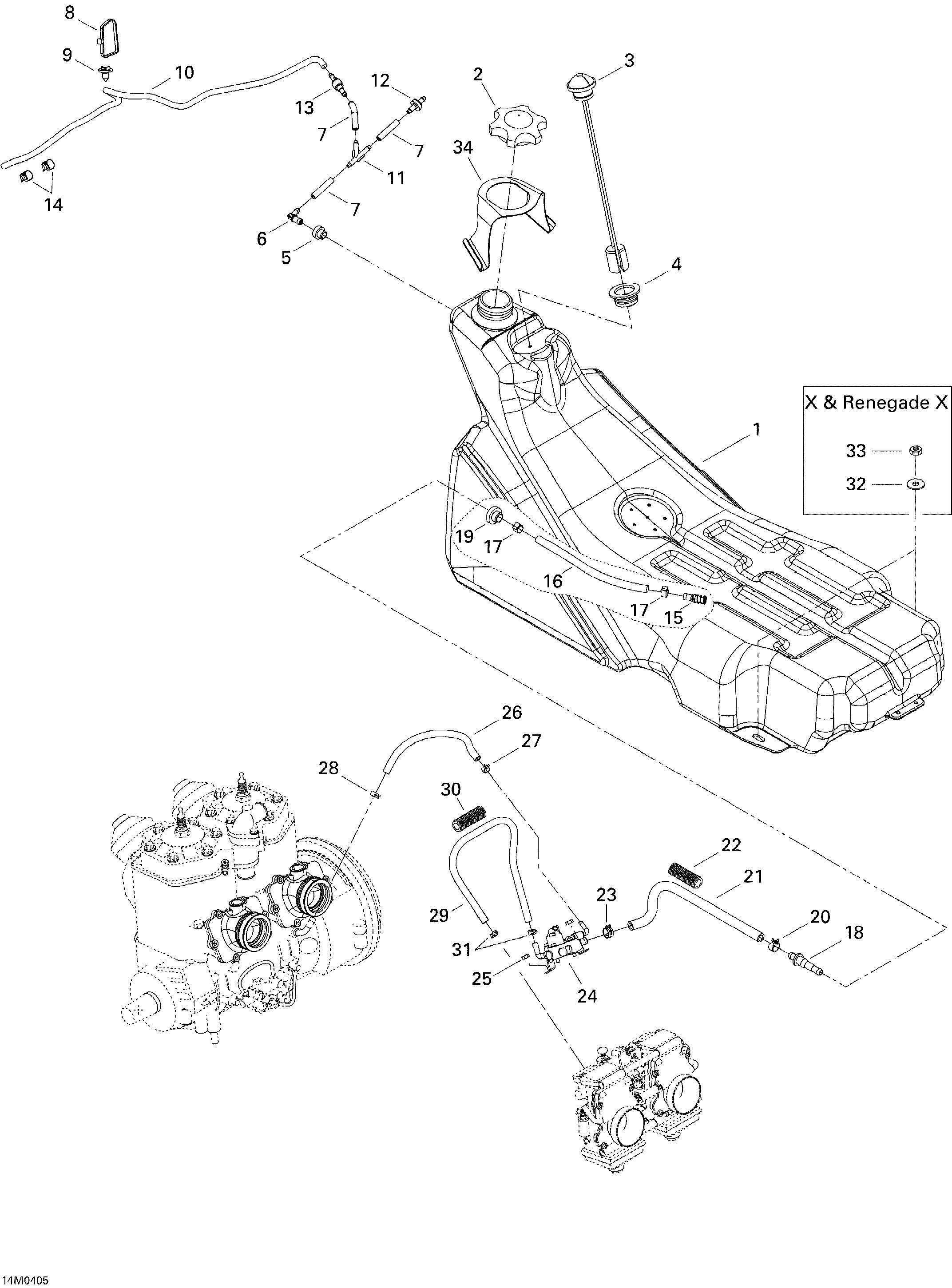

02- Fuel System для BRP Ski-Doo MX Z 800 HO Renegade/Renegade X - 2004
-
№АртикулНазвание
-
1513033080 Fuel TankFuel Tank
-
2513033024 Fuel Tank Cap. 800 H.O.Fuel Tank Cap. 800 H.O.
-
513033025 Fuel Tank Cap. 500 SS & 600 H.O.Fuel Tank Cap. 500 SS & 600 H.O.
-
3513033092 Fuel GaugeFuel Gauge
-
4293720058 GrommetGrommet
-
5513032908 GrommetGrommet
-
6414580700 Elbow Male ConnectorElbow Male Connector
-
7415080200 LineLine
-
8414115200 Tie Rap 180 mmTie Rap 180 mm
-
9293730018 Dart MountDart Mount
-
10415080200 LineLine
-
11293710059 Y-FittingY-Fitting
-
12275500398 Check ValveCheck Valve
-
13275500505 Check-ValveCheck-Valve
-
14414554800 Spring ClampSpring Clamp
-
15414872100 Fuel FilterFuel Filter
-
16513033070 HoseHose
-
17513033010 Spring ClampSpring Clamp
-
18414872700 Male ConnectorMale Connector
-
19570273900 GrommetGrommet
-
20513032979 Spring ClampSpring Clamp
-
21513033027 HoseHose
-
22415080000 Tubing 16 mmTubing 16 mm
-
23513032979 Spring ClampSpring Clamp
-
24403901811 Fuel Pump. Manual startingFuel Pump. Manual starting
-
403901812 Fuel Pump. Electric startingFuel Pump. Electric starting
-
25233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26513033035 HoseHose
-
27414415200 Spring ClampSpring Clamp
-
28513033029 Spring ClampSpring Clamp
-
29415117800 TubeTube
-
30415079900 Tubing 10 mmTubing 10 mm
-
31414420700 Spring ClampSpring Clamp
-
32234082410 Flat Washer 8 mm. X & Renegade XFlat Washer 8 mm. X & Renegade X
-
33232581414 Elastic Stop Nut M8. X & Renegade XElastic Stop Nut M8. X & Renegade X
-
34513033066 SupportSupport
