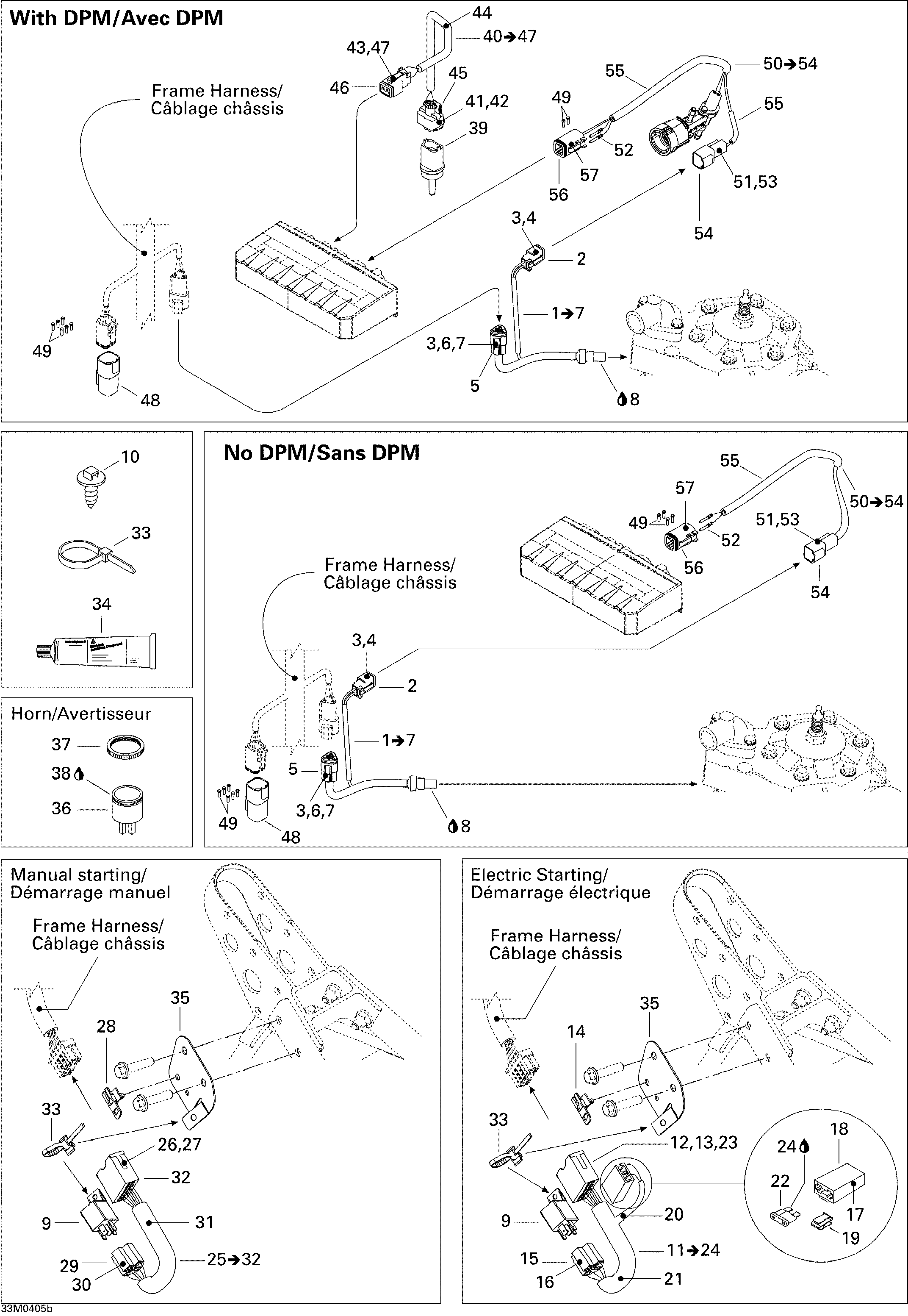

10- Electrical System 2 для BRP Ski-Doo MX Z 800 HO Renegade/Renegade X - 2004
-
№АртикулНазвание
-
1515176041 Temperature Sensor. Includes items 1 to 7Temperature Sensor. Includes items 1 to 7
-
2515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
3278000632 Female TerminalFemale Terminal
-
4515175675 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
5515175671 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
6515175676 Female Lock (3 Circuits)Female Lock (3 Circuits)
-
7293000052 PlugPlug
-
8293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
9410113200 RelayRelay
-
10293730018 Dart MountDart Mount
-
11515175721 Configuration Harness Ass'Y. Includes items 11 to 24 / Electric startingConfiguration Harness Ass'Y. Includes items 11 to 24 / Electric starting
-
12515175232 Male TerminalMale Terminal
-
13515175273 Male TerminalMale Terminal
-
14515175283 Housing SupportHousing Support
-
15409209900 Female Terminal Housing (5 Circuits)Female Terminal Housing (5 Circuits)
-
16561503100 Female TerminalFemale Terminal
-
17409011600 Female TerminalFemale Terminal
-
18409004000 Fuse HolderFuse Holder
-
19409014200 ClipClip
-
20515175442 Tubing (6 mm)Tubing (6 mm)
-
21409901800 Tubing (13 mm)Tubing (13 mm)
-
22278000344 FuseFuse
-
23515175720 Male Terminal HousingMale Terminal Housing
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25515175722 Configuration Harness. Includes items 25 to 32 / Manual startingConfiguration Harness. Includes items 25 to 32 / Manual starting
-
26515175232 Male TerminalMale Terminal
-
27515175273 Male TerminalMale Terminal
-
28515175283 Housing SupportHousing Support
-
29409209900 Female Terminal Housing (5 Circuits)Female Terminal Housing (5 Circuits)
-
30561503100 Female TerminalFemale Terminal
-
31409901800 Tubing (13 mm)Tubing (13 mm)
-
32515175720 Male Terminal HousingMale Terminal Housing
-
33414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35515176020 Harness SupportHarness Support
-
36515176035 Horn. ReverseHorn. Reverse
-
37414805101 Plastic Nut. ReversePlastic Nut. Reverse
-
38296000309 Sealant Silicone, Clear. ReverseSealant Silicone, Clear. Reverse
-
39270600000 Air Sensor. With DPMAir Sensor. With DPM
-
40515175703 Temperature Harness. Includes items 40 to 47 / With DPMTemperature Harness. Includes items 40 to 47 / With DPM
-
41278000998 Female TerminalFemale Terminal
-
42278000999 SealSeal
-
43278000632 Female TerminalFemale Terminal
-
44515175332 TubingTubing
-
45515175588 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
46515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
47515175706 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
48515175668 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
49293000052 Plug. With DPMPlug. With DPM
-
293000052 Plug. Without DPMPlug. Without DPM
-
50515175822 Sensor Harness. Includes items 50 to 54Sensor Harness. Includes items 50 to 54
-
51278000631 Male TerminalMale Terminal
-
52278000632 Female TerminalFemale Terminal
-
53409207500 Male Lock (2 Circuits)Male Lock (2 Circuits)
-
54515175665 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
55409901300 Low Temperature TubingLow Temperature Tubing
-
56515175673 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
57515175678 Female Lock (6 Circuits)Female Lock (6 Circuits)
