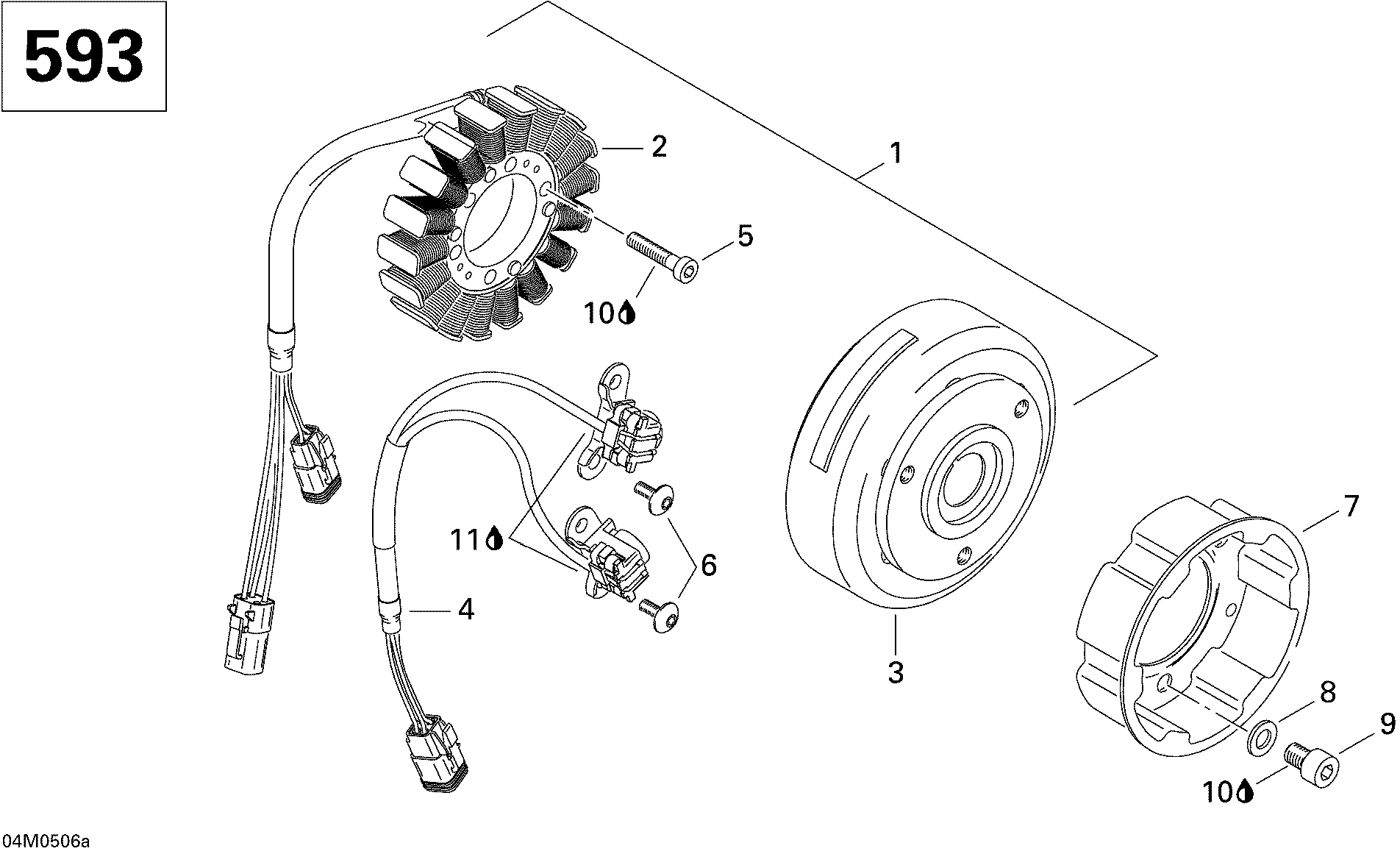

03- Magneto 593 для BRP Ski-Doo GSX 500SS - 2005
-
№АртикулНазвание
-
2410922946 Stator Plate Ass'YStator Plate Ass'Y
-
3410922947 FlywheelFlywheel
-
4410922948 Pickup Ass'YPickup Ass'Y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Taptite ScrewTaptite Screw
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10293800060 Loctite 243, 250 mlLoctite 243, 250 ml
