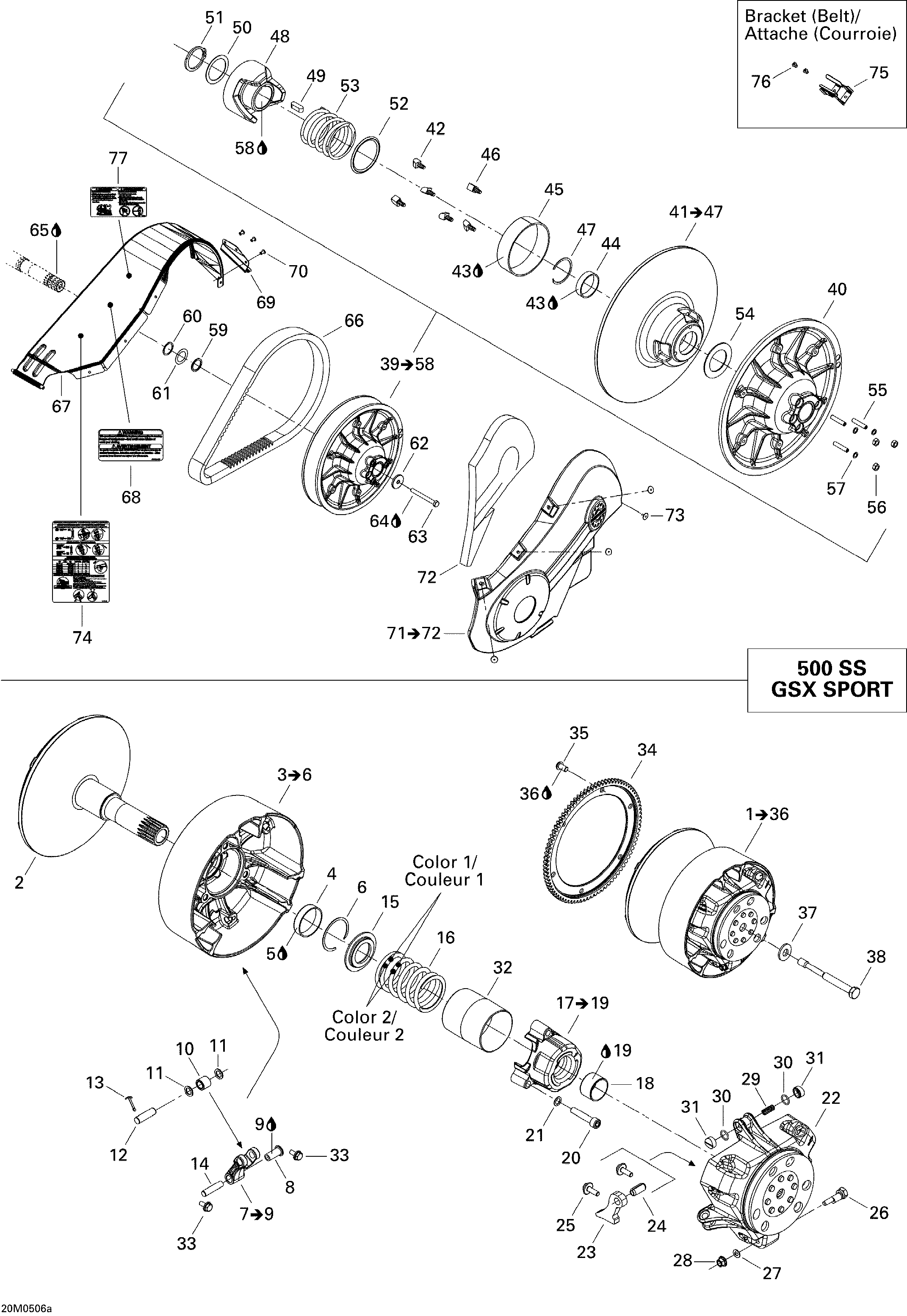

05- Driven Pulley GSX 500 SS для BRP Ski-Doo GSX 500SS - 2005
-
№АртикулНазвание
-
2417222294 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'yRoller Ass'y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414949500 Spring, Violet/pinkSpring, Violet/pink
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor CupGovernor Cup
-
23417222515 Ramp 412Ramp 412
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
26417005500 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
29417005700 SpringSpring
-
30732401030 O-RingO-Ring
-
31417005800 Slider ShoeSlider Shoe
-
32417009205 GuardGuard
-
33210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
34861790500 Gear Ring KitGear Ring Kit
-
35236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
36293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126499 Fixed FlangeFixed Flange
-
41417126763 Sliding Flange Ass'y. Includes 41 to 47Sliding Flange Ass'y. Includes 41 to 47
-
42417126538 Slider Shoe, FrontSlider Shoe, Front
-
43413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
45417126562 BushingBushing
-
46417126539 Slider Shoe, RearSlider Shoe, Rear
-
47371911200 CirclipCirclip
-
48417126747 CamCam
-
49414820800 KeyKey
-
50417126555 WasherWasher
-
51371903100 CirclipCirclip
-
52417126771 Abutment SwivelAbutment Swivel
-
53417126801 Spring, Green/greenSpring, Green/green
-
54504141900 Thrust WasherThrust Washer
-
55206263044 Pressure Screw M6 X 30Pressure Screw M6 X 30
-
56232061414 Hex Nut M6Hex Nut M6
-
57420245370 WasherWasher
-
58293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
59417300252 SpacerSpacer
-
60417300265 SpacerSpacer
-
60504149100 SpacerSpacer
-
61504112000 ShimShim
-
62517302322 Strength WasherStrength Washer
-
63207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
64293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
65293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
66417300197 Drive BeltDrive Belt
-
67417300213 Belt GuardBelt Guard
-
68516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
69417300216 Belt Guard BracketBelt Guard Bracket
-
70390909200 Avex RivetAvex Rivet
-
71417300248 Side Protector Ass'ySide Protector Ass'y
-
72417300246 FoamFoam
-
73293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
74516001639 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
75517281905 BracketBracket
-
76390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
77516002674 Emergency Starting LabelEmergency Starting Label
