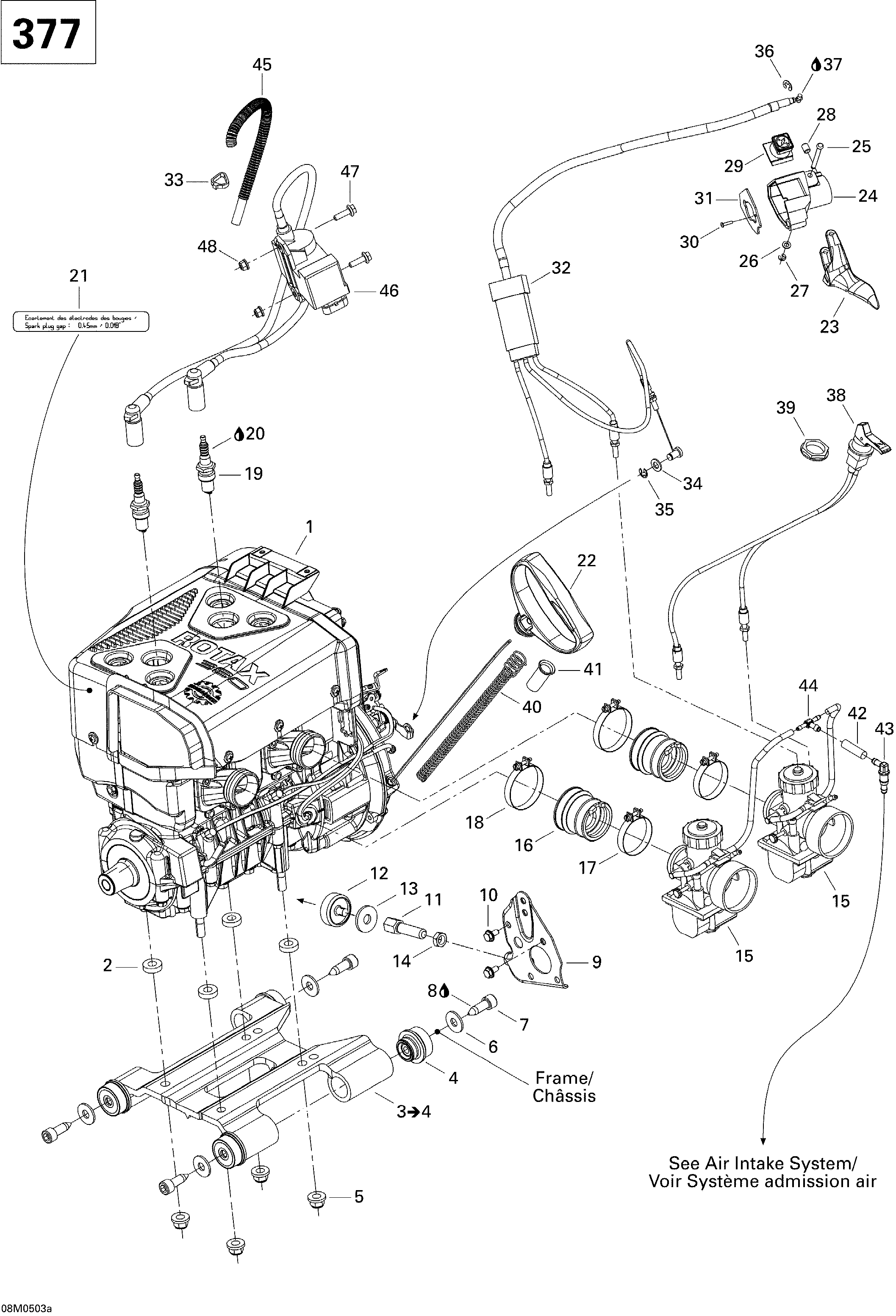

01- Engine And Engine Support 380F для BRP Ski-Doo GTX 380F - 2005
-
№АртикулНазвание
-
1400308913 377 Engine377 Engine
-
2512051800 SpacerSpacer
-
3512059885 Engine Support. Includes 3 to 4Engine Support. Includes 3 to 4
-
4512059691 Rubber MountRubber Mount
-
5233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
6506151251 WasherWasher
-
7250000094 Screw M10 X 30Screw M10 X 30
-
8413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
9512059910 Support PlateSupport Plate
-
10207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
11512058800 Stopper ScrewStopper Screw
-
12512059610 StopperStopper
-
13512059057 WasherWasher
-
14732610019 RH Hex Jam Nut M12RH Hex Jam Nut M12
-
15403138774 Carburetor Vm30-213Carburetor Vm30-213
-
16512059478 Carburetor AdaptorCarburetor Adaptor
-
17293650151 Gemi ClampGemi Clamp
-
18512059834 Gemi ClampGemi Clamp
-
19414961100 Spark Plug, NGK Br9esSpark Plug, NGK Br9es
-
20293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
21516000986 Spark Plug DecalSpark Plug Decal
-
22572084400 Starter GripStarter Grip
-
23512059999 Head Throttle Handle, 30 mmHead Throttle Handle, 30 mm
-
24512059334 Throttle Handle HousingThrottle Handle Housing
-
25414438700 Lever PinLever Pin
-
26234051600 Flat Washer M5Flat Washer M5
-
27414439000 CirclipCirclip
-
28414440800 Set Screw M8 X 10Set Screw M8 X 10
-
29515176091 Kill SwitchKill Switch
-
30250000022 Phillips ScrewPhillips Screw
-
31512059507 PlatePlate
-
32512059973 Throttle CableThrottle Cable
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34234081100 Flat Washer 8 mmFlat Washer 8 mm
-
35414753500 CirclipCirclip
-
36414274500 CirclipCirclip
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38512059914 Choke CableChoke Cable
-
39512060016 Plastic NutPlastic Nut
-
40512059535 Rope GuideRope Guide
-
41512059536 TubeTube
-
42415080200 LineLine
-
43414580600 Elbow Male ConnectorElbow Male Connector
-
44572045500 T-ConnectorT-Connector
-
45409901700 Tubing, 9 mmTubing, 9 mm
-
46512059950 Calibrated ModuleCalibrated Module
-
47207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
48233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
