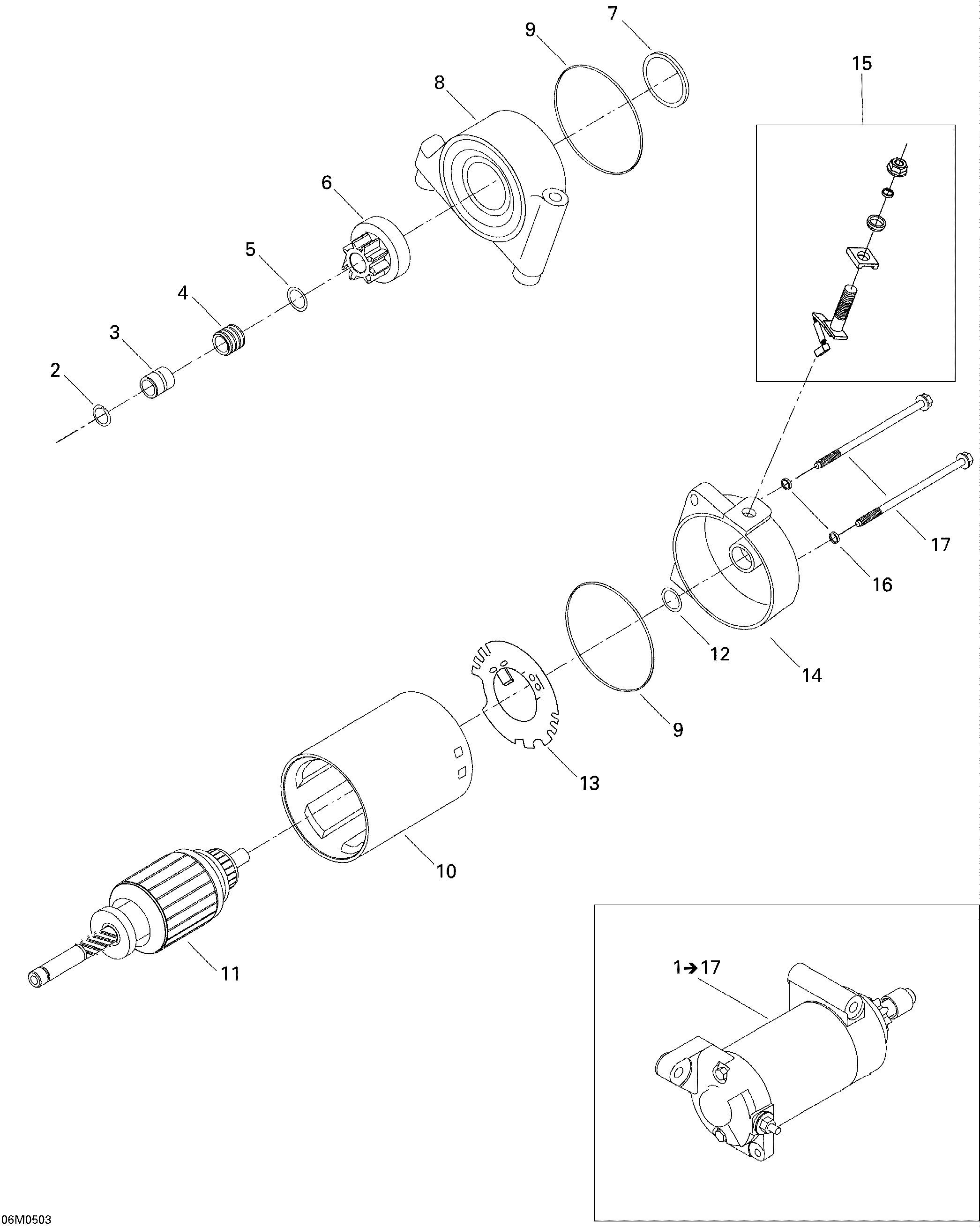

04- Electric Starter 380F для BRP Ski-Doo GTX 380F - 2005
-
№АртикулНазвание
-
1515176138 Starter Ass'Y. 380F, Includes 1 To 17Starter Ass'Y. 380F, Includes 1 To 17
-
2410207700 Snap RingSnap Ring
-
3515175928 Stop NutStop Nut
-
4410922957 SpringSpring
-
5278001105 Washer PlateWasher Plate
-
6410922958 Starter ClutchStarter Clutch
-
7278000696 O-RingO-Ring
-
8410922970 Housing. 380FHousing. 380F
-
9278000695 O-RingO-Ring
-
10410213104 Starter HousingStarter Housing
-
11515175785 Armature Ass'YArmature Ass'Y
-
12410204500 Flat WasherFlat Washer
-
13515175786 Brush HolderBrush Holder
-
14410922971 Housing. 380FHousing. 380F
-
15410212100 Brush KitBrush Kit
-
16278000060 O-RingO-Ring
-
17410922961 BoltBolt
