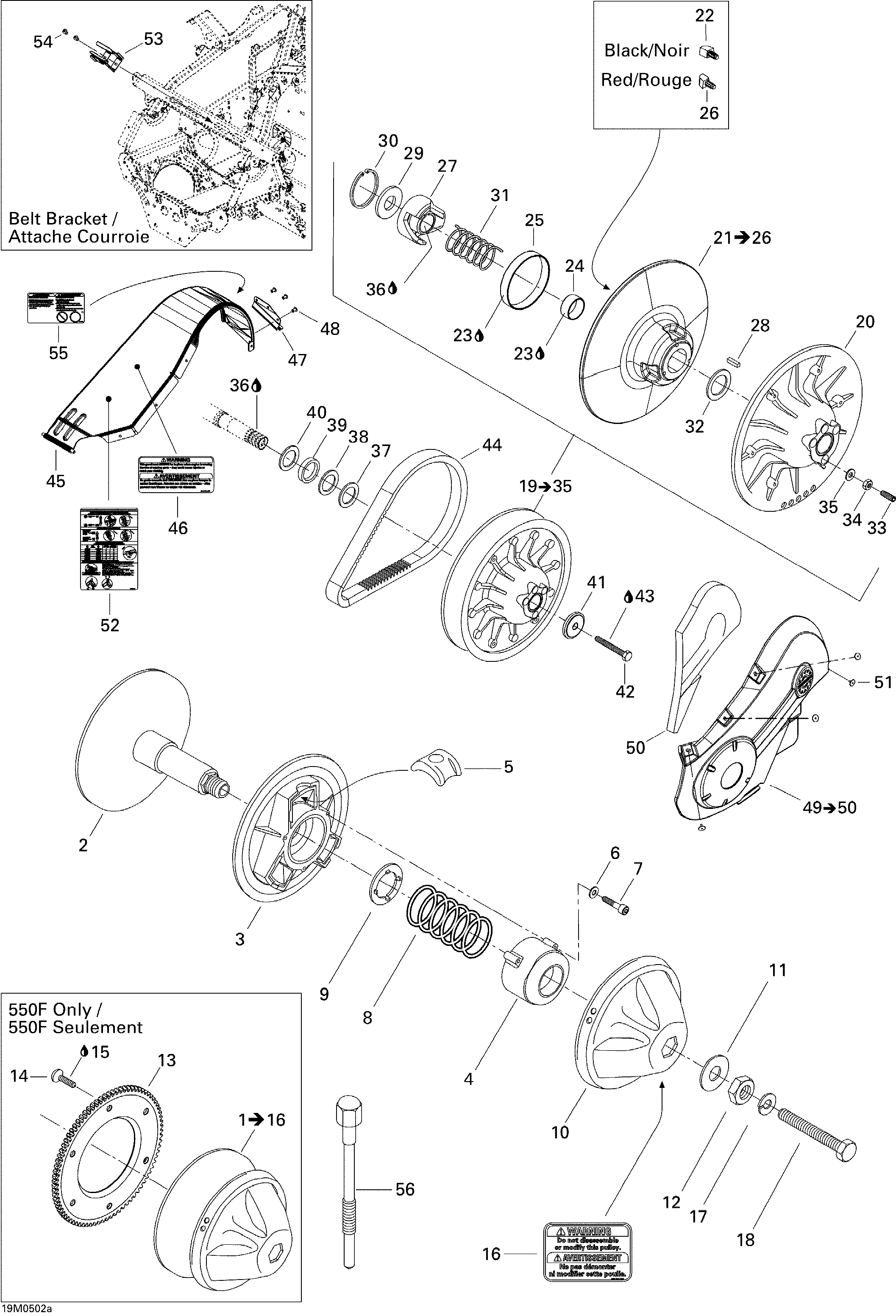

05- Pulley System MX Z 550F для BRP Ski-Doo MX Z 550F - 2005
-
№АртикулНазвание
-
2415128975 Inner Flange. 550FInner Flange. 550F
-
3417126692 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5415128932 Unit. 550FUnit. 550F
-
6420245370 WasherWasher
-
7415128606 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
8415128608 Spring (Violet/Yellow). 550FSpring (Violet/Yellow). 550F
-
9417126694 Spring SeatSpring Seat
-
10415128609 CapCap
-
11415128610 WasherWasher
-
12417118300 NutNut
-
13417300249 Ring Gear. 550FRing Gear. 550F
-
14236281684 Hex Screw M8 X 16. 550FHex Screw M8 X 16. 550F
-
15293800005 Loctite 271, 10 ml. 550FLoctite 271, 10 ml. 550F
-
16516001726 Security LabelSecurity Label
-
17392002800 Lock Spring WasherLock Spring Washer
-
18417113800 BoltBolt
-
20417126663 Fixed FlangeFixed Flange
-
21417126550 Sliding Flange Ass'Y. Includes 21 To 26Sliding Flange Ass'Y. Includes 21 To 26
-
22417126538 Slider Shoe (Front)Slider Shoe (Front)
-
23413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
24417126515 CushionCushion
-
25417126562 CoussinetCoussinet
-
26417126539 Slider Shoe (Rear)Slider Shoe (Rear)
-
27417126715 Cam 44°Cam 44°
-
28414820800 KeyKey
-
29417126555 WasherWasher
-
30371903100 CirclipCirclip
-
31504152070 Release Spring (White) (Ho)Release Spring (White) (Ho)
-
32504141900 Thrust WasherThrust Washer
-
33206263044 Pressure Screw M6 X 30Pressure Screw M6 X 30
-
34232061414 Hex Nut M6Hex Nut M6
-
35420245370 WasherWasher
-
36293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
37417300252 SpacerSpacer
-
38417300265 SpacerSpacer
-
39504149100 SpacerSpacer
-
40504112000 ShimShim
-
41517302322 Strength WasherStrength Washer
-
42207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
44415060600 Drive BeltDrive Belt
-
45417300269 Belt GuardBelt Guard
-
46516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
47417300216 Belt Guard BracketBelt Guard Bracket
-
48390909200 Rivet AvexRivet Avex
-
49417300248 Side Protector Ass'Y. Includes 49 To 50Side Protector Ass'Y. Includes 49 To 50
-
50417300246 FoamFoam
-
51293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
52516001639 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
53517281905 BracketBracket
-
54390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
55516002674 Security Label, Emergency StartingSecurity Label, Emergency Starting
-
56529022400 Puller Inner HalfPuller Inner Half
