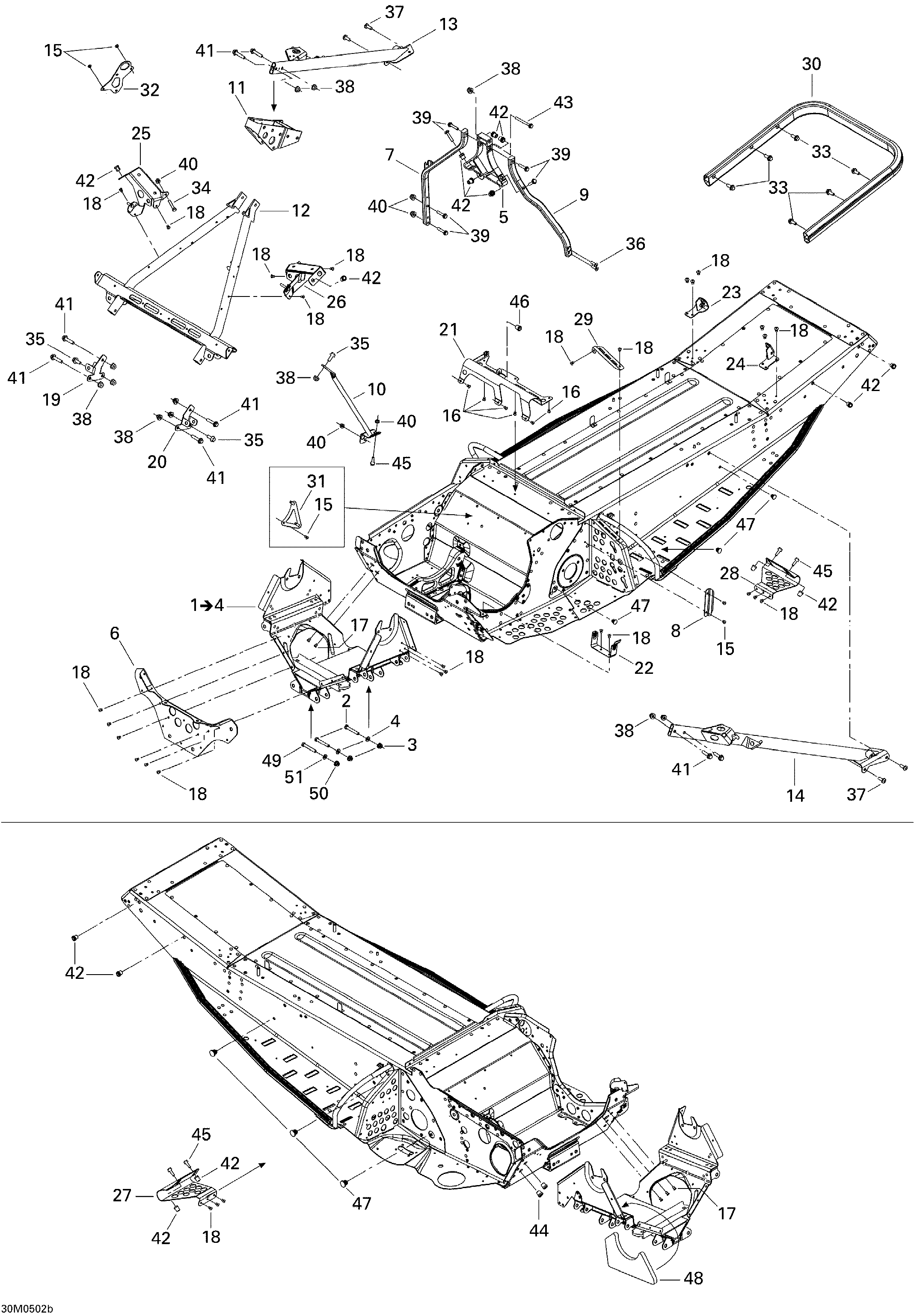

09- Frame and Components для BRP Ski-Doo MX Z 550F - 2005
-
№АртикулНазвание
-
1518324694 Cross Member. Includes 1 to 4Cross Member. Includes 1 to 4
-
2207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518324377 Center StiffenerCenter Stiffener
-
6518324726 Front PlateFront Plate
-
7518324397 RH Handle SupportRH Handle Support
-
8518317504 Cable ProtecteurCable Protecteur
-
9518324376 LH Handle SupportLH Handle Support
-
10518323472 Brace (black)Brace (black)
-
11518324393 Bracket BlockBracket Block
-
12518324739 Upper Cross MemberUpper Cross Member
-
13518323352 RH MemberRH Member
-
14518323354 LH MemberLH Member
-
15390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390909100 Rivet AvexRivet Avex
-
18390909200 Rivet AvexRivet Avex
-
19518322461 RH Shock BracketRH Shock Bracket
-
20518322462 LH Shock BracketLH Shock Bracket
-
21518323532 Intake Air Admission SupportIntake Air Admission Support
-
22518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
23518323769 RH Bracket, BlackRH Bracket, Black
-
24518323770 LH Bracket, BlackLH Bracket, Black
-
25518324513 RH Console SupportRH Console Support
-
26518323536 LH Console SupportLH Console Support
-
27518324391 RH Toe HoldRH Toe Hold
-
28518324392 LH Toe HoldLH Toe Hold
-
29518323105 Plate, BlackPlate, Black
-
30518323788 Rear BumperRear Bumper
-
31518324312 Trunk Bracket BlackTrunk Bracket Black
-
32518324315 PlatePlate
-
33207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
34207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
35207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
36205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
37250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
38233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
39207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
40233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
42415107300 InsertInsert
-
43207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
44293450166 InsertInsert
-
45207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
46293450232 InsertInsert
-
47518321954 Fastener PanelFastener Panel
-
48518323453 RH Front FoamRH Front Foam
-
49207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
50233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
51234081410 Flat Washer 8 mmFlat Washer 8 mm
