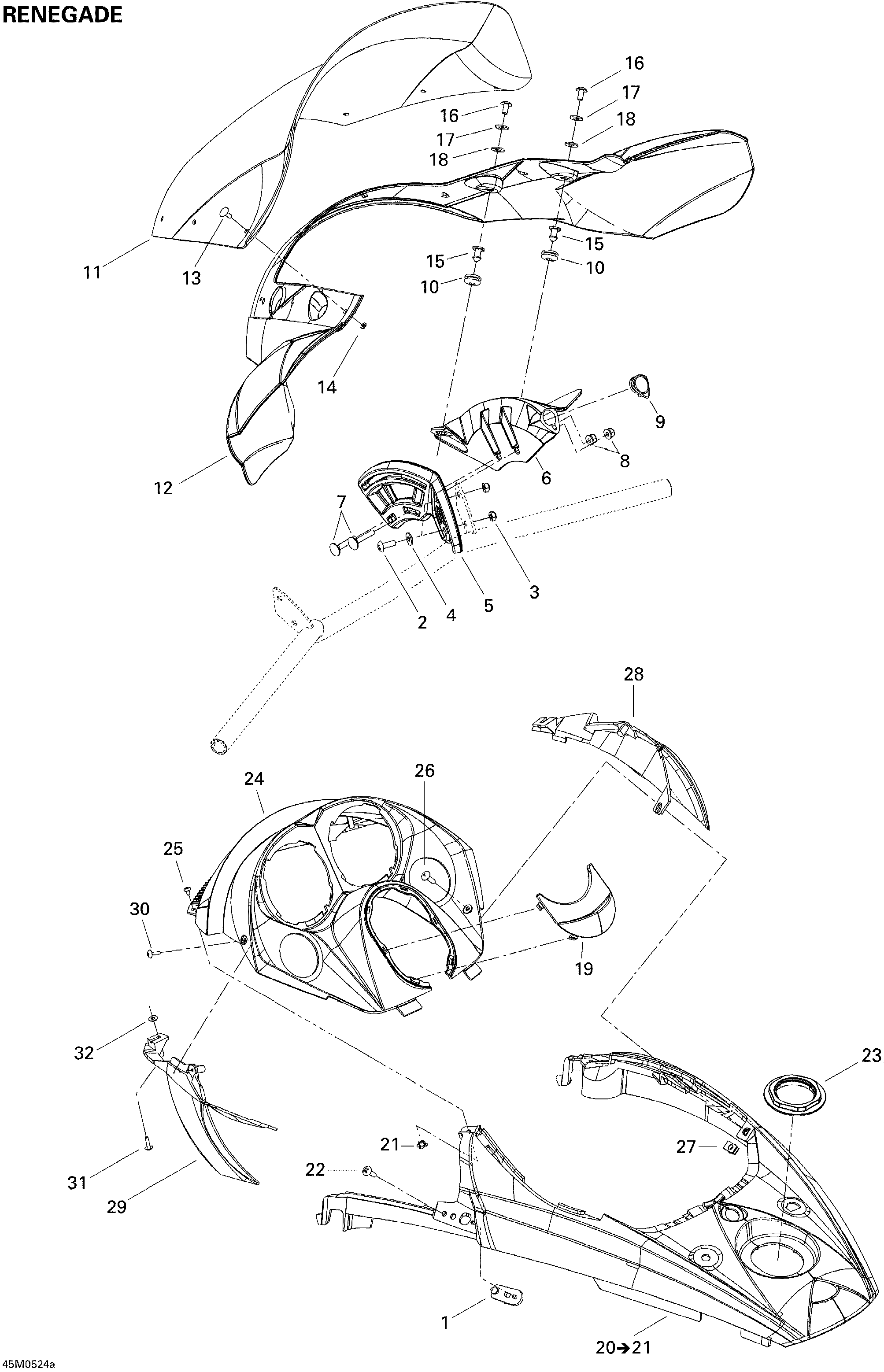

09- Windshield And Console Renegade для BRP Ski-Doo MX Z 600 HO Renegade - 2005
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2250000129 Torx Pan Head Screw M6 X 16Torx Pan Head Screw M6 X 16
-
3250000135 Hex Nut M6Hex Nut M6
-
4517302736 Nylon WasherNylon Washer
-
5517303076 RH Fixing PlateRH Fixing Plate
-
5517303078 LH Fixing PlateLH Fixing Plate
-
6517303077 RH Windshield SupportRH Windshield Support
-
6517303079 LH Windshield SupportLH Windshield Support
-
7207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
8233261494 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9517302806 CapCap
-
10517302841 GrommetGrommet
-
11517302443 Windshield (Medium)Windshield (Medium)
-
12517302816 Air DeflectorAir Deflector
-
13517303070 Windshield DartWindshield Dart
-
14250100034 Push NutPush Nut
-
15517303439 KnobKnob
-
16250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
17250200025 Washer 5 mmWasher 5 mm
-
18250200024 Rubber Washer M5Rubber Washer M5
-
19517302592 Console CapConsole Cap
-
20517302795 Center Console, Black. Includes 20 To 21Center Console, Black. Includes 20 To 21
-
21250100030 '' T'' Flanged Nut M4'' T'' Flanged Nut M4
-
22250000128 Torx Pan Head Screw M6 X 20Torx Pan Head Screw M6 X 20
-
23517302575 Console NutConsole Nut
-
24517303471 Indicator SupportIndicator Support
-
25250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
26250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
27250000079 Nut M5Nut M5
-
28517302546 RH Air DeflectorRH Air Deflector
-
29517302547 LH Air DeflectorLH Air Deflector
-
30250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
31250000113 Screw M4 X 16Screw M4 X 16
-
32234042600 Flat Washer 4 mmFlat Washer 4 mm
