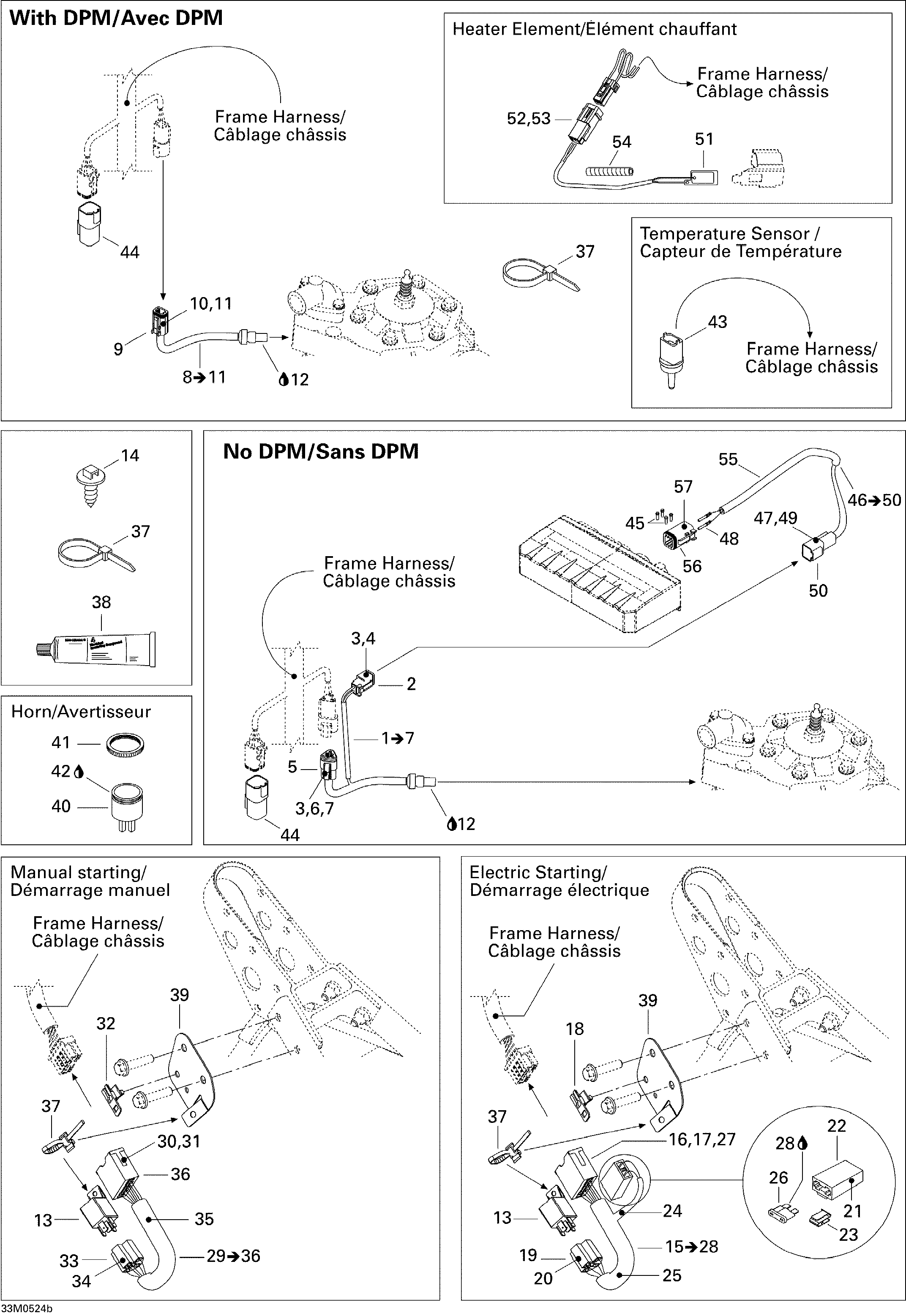

10- Electrical System B для BRP Ski-Doo MX Z 600 HO Renegade - 2005
-
№АртикулНазвание
-
1515176041 Temperature Sensor. No DPM, Includes 1 to 7Temperature Sensor. No DPM, Includes 1 to 7
-
2515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
5515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
6515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
7293000052 Sealing CapSealing Cap
-
8515176043 Temperature Sensor. 800HO With DPM, Includes 8 to 11Temperature Sensor. 800HO With DPM, Includes 8 to 11
-
9278000739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
10278000632 Female TerminalFemale Terminal
-
11515175677 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
12293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
13410113200 RelayRelay
-
14293730018 Mount DartMount Dart
-
15515175721 Configuration Harness Ass'Y. Electric Starter, Includes 15 to 28Configuration Harness Ass'Y. Electric Starter, Includes 15 to 28
-
16515175232 Male TerminalMale Terminal
-
17515175273 Male TerminalMale Terminal
-
18515175283 Housing SupportHousing Support
-
19409209900 Female Terminal Housing (5 Circuits)Female Terminal Housing (5 Circuits)
-
20561503100 Female TerminalFemale Terminal
-
21409011600 Female TerminalFemale Terminal
-
22409004000 Fuse HolderFuse Holder
-
23409014200 ClipClip
-
24515175442 Tubing (6 mm)Tubing (6 mm)
-
25409901800 Tubing, 13 mmTubing, 13 mm
-
26278000344 Fuse (5 Amperes)Fuse (5 Amperes)
-
27515175720 Male Terminal Housing (11 Circuits)Male Terminal Housing (11 Circuits)
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
29515176175 Configuration Harness. Manual Starter, Includes 29 to 36Configuration Harness. Manual Starter, Includes 29 to 36
-
30515175232 Male TerminalMale Terminal
-
31515175273 Male TerminalMale Terminal
-
32515175283 Housing SupportHousing Support
-
33409209900 Female Terminal Housing (5 Circuits)Female Terminal Housing (5 Circuits)
-
34561503100 Female TerminalFemale Terminal
-
35409901800 Tubing, 13 mmTubing, 13 mm
-
36515175720 Male Terminal Housing (11 Circuits)Male Terminal Housing (11 Circuits)
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37293750001 Tie-Rap 94 mm. 800HO With DPMTie-Rap 94 mm. 800HO With DPM
-
37293750009 Tie Rap 160 mmTie Rap 160 mm
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39515176020 Harness SupportHarness Support
-
40515176035 HornHorn
-
41414805101 Plastic NutPlastic Nut
-
42296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
43270600000 Air Sensor. 800HO With DPMAir Sensor. 800HO With DPM
-
44515176234 Housing Tab (6 Circuits)Housing Tab (6 Circuits)
-
45293000052 Sealing Cap. No DPMSealing Cap. No DPM
-
46515175822 Sensor Harness. No DPM, Includes 46 to 50Sensor Harness. No DPM, Includes 46 to 50
-
47278000631 Male TerminalMale Terminal
-
48278000632 Female TerminalFemale Terminal
-
49409207500 Male Lock (2 Circuits)Male Lock (2 Circuits)
-
50515175665 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
51515176256 Heater. 800HO With DPMHeater. 800HO With DPM
-
52515175654 Male Terminal Housing (2 Circuits). 800HO With DPMMale Terminal Housing (2 Circuits). 800HO With DPM
-
53515175232 Male Terminal. 800HO With DPMMale Terminal. 800HO With DPM
-
54515175332 Low Temperature Tubing, Vinyl. 800HO With DPMLow Temperature Tubing, Vinyl. 800HO With DPM
-
55409901300 Low Temperature Tubing. No DPMLow Temperature Tubing. No DPM
-
56515175673 Female Terminal Housing (6 Circuits). No DPMFemale Terminal Housing (6 Circuits). No DPM
-
57515175678 Lock Female (6 Circuits). No DPMLock Female (6 Circuits). No DPM
