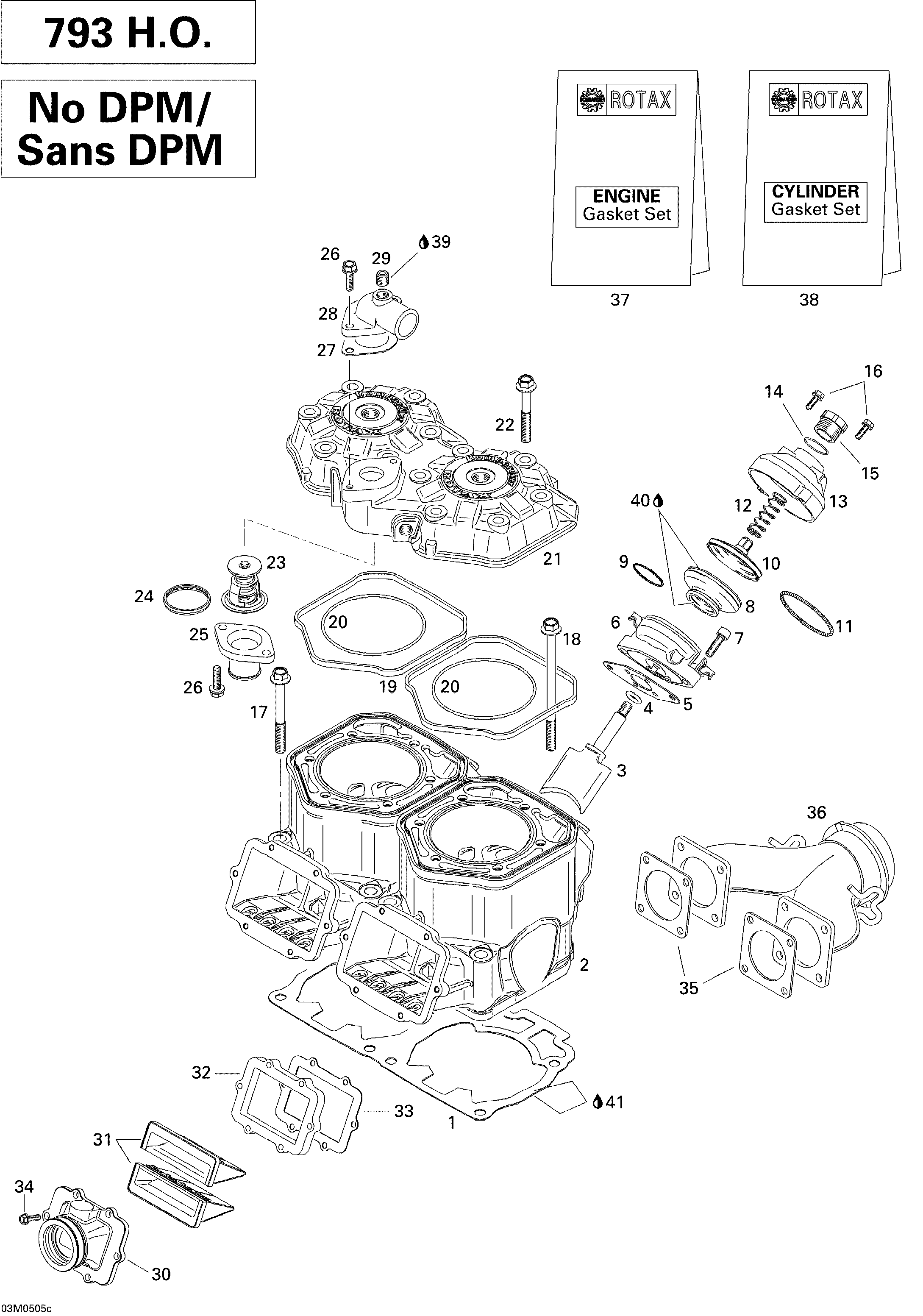

01- Cylinder, Exhaust Manifold And Reed Valve 793HO No PDM для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2005
-
№АртикулНазвание
-
1420931838 Gasket 0.5 mmGasket 0.5 mm
-
1420931837 Gasket 0.6Gasket 0.6
-
1420931964 Gasket 0.7Gasket 0.7
-
1420931839 Gasket 0.8Gasket 0.8
-
2420613852 Nicasil CylinderNicasil Cylinder
-
3420854465 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420931542 GasketGasket
-
6420854455 Valve HousingValve Housing
-
7205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8420260729 BellowsBellows
-
9420838255 Hose SpringHose Spring
-
10420854449 Exhaust ValveExhaust Valve
-
11420939280 Hose SpringHose Spring
-
12420239941 SpringSpring
-
13420911558 Valve CoverValve Cover
-
14420430220 O-RingO-Ring
-
15420241221 Adjuster ScrewAdjuster Screw
-
16420241270 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
17420640524 Hex Collar ScrewHex Collar Screw
-
18420640534 Hex Collar ScrewHex Collar Screw
-
19420931590 Rubber RingRubber Ring
-
20420931410 O-RingO-Ring
-
21420923827 Cylinder Head CoverCylinder Head Cover
-
22420941621 Hex Collar Screw M8 X 56.5Hex Collar Screw M8 X 56.5
-
23420922518 ThermostateThermostate
-
24420931272 Sealing RingSealing Ring
-
25420922025 Bent Outlet SocketBent Outlet Socket
-
26420941250 Tapping Screw M6 X 20Tapping Screw M6 X 20
-
27420850338 GasketGasket
-
28420922062 Bent Outlet SocketBent Outlet Socket
-
29420240480 Plug Screw 1/8''-27 NptPlug Screw 1/8''-27 Npt
-
30420667105 Intake SocketIntake Socket
-
31420924790 Reed Valve Ass'yReed Valve Ass'y
-
32420924820 Distance FlangeDistance Flange
-
33420630815 GasketGasket
-
34420641840 Taptite Screw M5 X 35Taptite Screw M5 X 35
-
35420931850 GasketGasket
-
36420973713 Exhaust ManifoldExhaust Manifold
-
37420888741 Gasket Engine KitGasket Engine Kit
-
38420888745 Cylinder GasketCylinder Gasket
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
41293800038 Loctite 518, 50 mlLoctite 518, 50 ml
