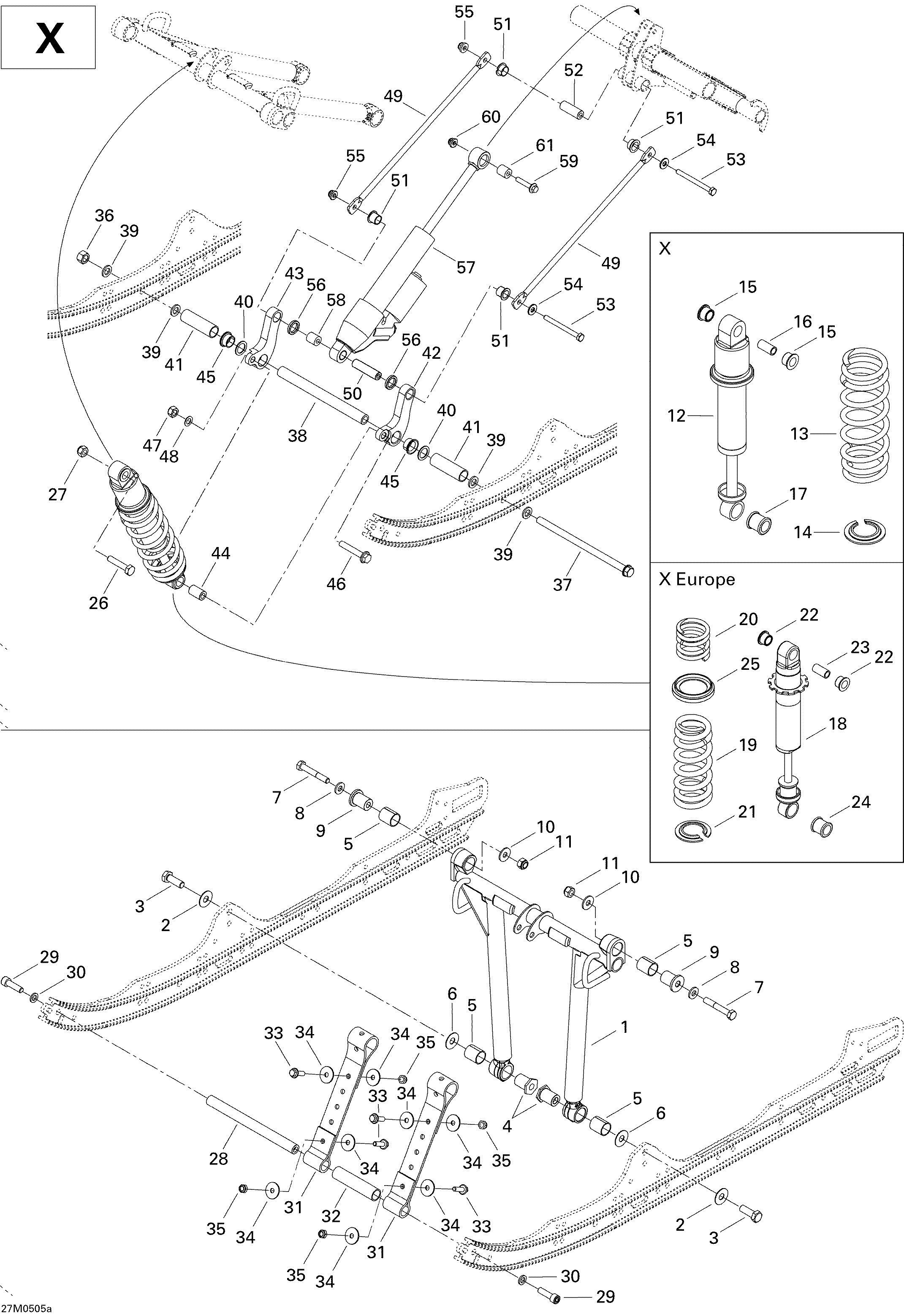

08- Front Arm X для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2005
-
№АртикулНазвание
-
1503190566 Front ArmFront Arm
-
2503189148 WasherWasher
-
3250000225 Hex. Screw (scotch Grip) M12 X 35Hex. Screw (scotch Grip) M12 X 35
-
4503190727 Inferior AxleInferior Axle
-
5503190974 BushingBushing
-
6503190656 WasherWasher
-
7207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
8732900049 WasherWasher
-
9503190698 AxleAxle
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503191043 Center Shock. XCenter Shock. X
-
13503189325 Spring. XSpring. X
-
14503189912 Spring Stopper. XSpring Stopper. X
-
15503189117 Cushion. XCushion. X
-
16503189282 Bushing. XBushing. X
-
17503189271 Cushion. XCushion. X
-
18503190747 Center Shock. X EuropeCenter Shock. X Europe
-
19503190854 Spring. X EuropeSpring. X Europe
-
20503190471 Spring. X EuropeSpring. X Europe
-
21503189912 Spring Stopper. X EuropeSpring Stopper. X Europe
-
22503189117 Cushion. X EuropeCushion. X Europe
-
23503189282 Bushing. X EuropeBushing. X Europe
-
24503189271 Cushion. X EuropeCushion. X Europe
-
25505070538 Spring Spacer. X EuropeSpring Spacer. X Europe
-
26207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28503189562 AxleAxle
-
29205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
30503189564 WasherWasher
-
31503190782 Stopper StrapStopper Strap
-
32503189265 SpacerSpacer
-
33207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
34224081301 Flat WasherFlat Washer
-
35233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36232021416 Hex. Nut M12Hex. Nut M12
-
37250000229 Hexagonal Screw M12 X 252Hexagonal Screw M12 X 252
-
38503191044 Center ShaftCenter Shaft
-
39503189148 WasherWasher
-
40503190697 WasherWasher
-
41503190600 SpacerSpacer
-
42503190965 LH Rocker ArmLH Rocker Arm
-
43503190966 RH Rocker ArmRH Rocker Arm
-
44503190604 Central Shock AxleCentral Shock Axle
-
45503190605 Central Rocker Axle CushionCentral Rocker Axle Cushion
-
46207606044 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
47232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
48503175800 WasherWasher
-
49503190606 Throttle RodThrottle Rod
-
50503190643 Bar AxleBar Axle
-
51506150200 Bushing SwivelBushing Swivel
-
52503189815 Axle RodAxle Rod
-
53207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
54224081201 Flat WasherFlat Washer
-
55233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
56503190694 Plastic SpacerPlastic Spacer
-
57503190987 Rear Shock. X EuropeRear Shock. X Europe
-
57503190306 Rear Shock. XRear Shock. X
-
58503190706 BushingBushing
-
59207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
60233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
61414936000 CushionCushion
