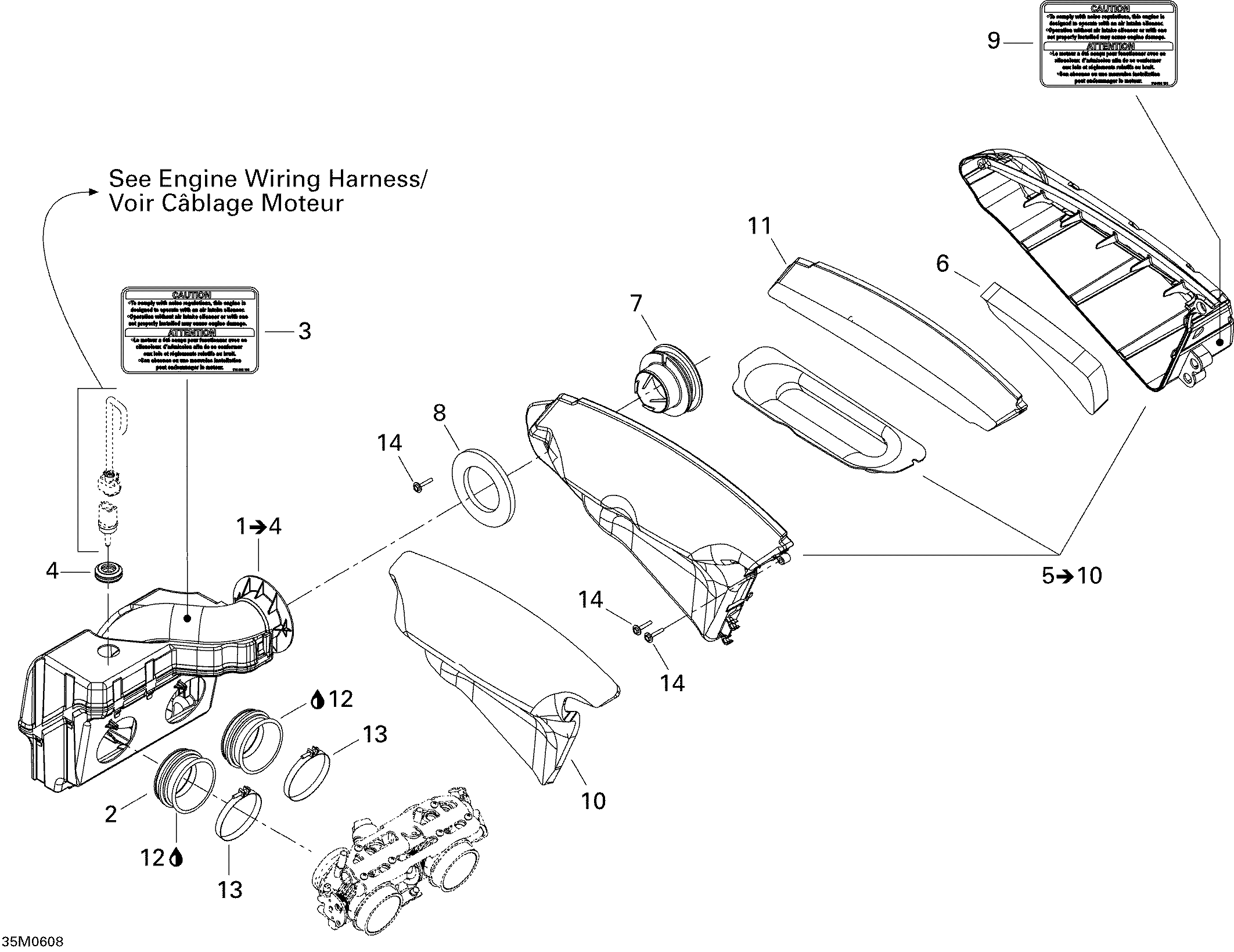

02- Air Silencer для BRP Ski-Doo GTX 600 HO SDI - 2006
-
№АртикулНазвание
-
1508000459 Chamber Ass'y. Includes 1 to 4Chamber Ass'y. Includes 1 to 4
-
2508000374 Air Intake AdaptorAir Intake Adaptor
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4570065500 GrommetGrommet
-
5508000392 Secondary Chamber Assy. Includes 5 to 10Secondary Chamber Assy. Includes 5 to 10
-
6508000145 Inner FoamInner Foam
-
7508000240 GuideGuide
-
8508000199 Outer FoamOuter Foam
-
9516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
10508000310 Outer FoamOuter Foam
-
11508000394 Air FilterAir Filter
-
12293600071 Semi-synthetic Oil (12 X 1 Liter)Semi-synthetic Oil (12 X 1 Liter)
-
12293600072 Semi-synthetic Oil (3 X 4 Liters)Semi-synthetic Oil (3 X 4 Liters)
-
12293600073 Semi-synthetic Oil (205 Liters)Semi-synthetic Oil (205 Liters)
-
13508000346 Gemi ClampGemi Clamp
-
14250000101 Screw M4 X 25Screw M4 X 25
