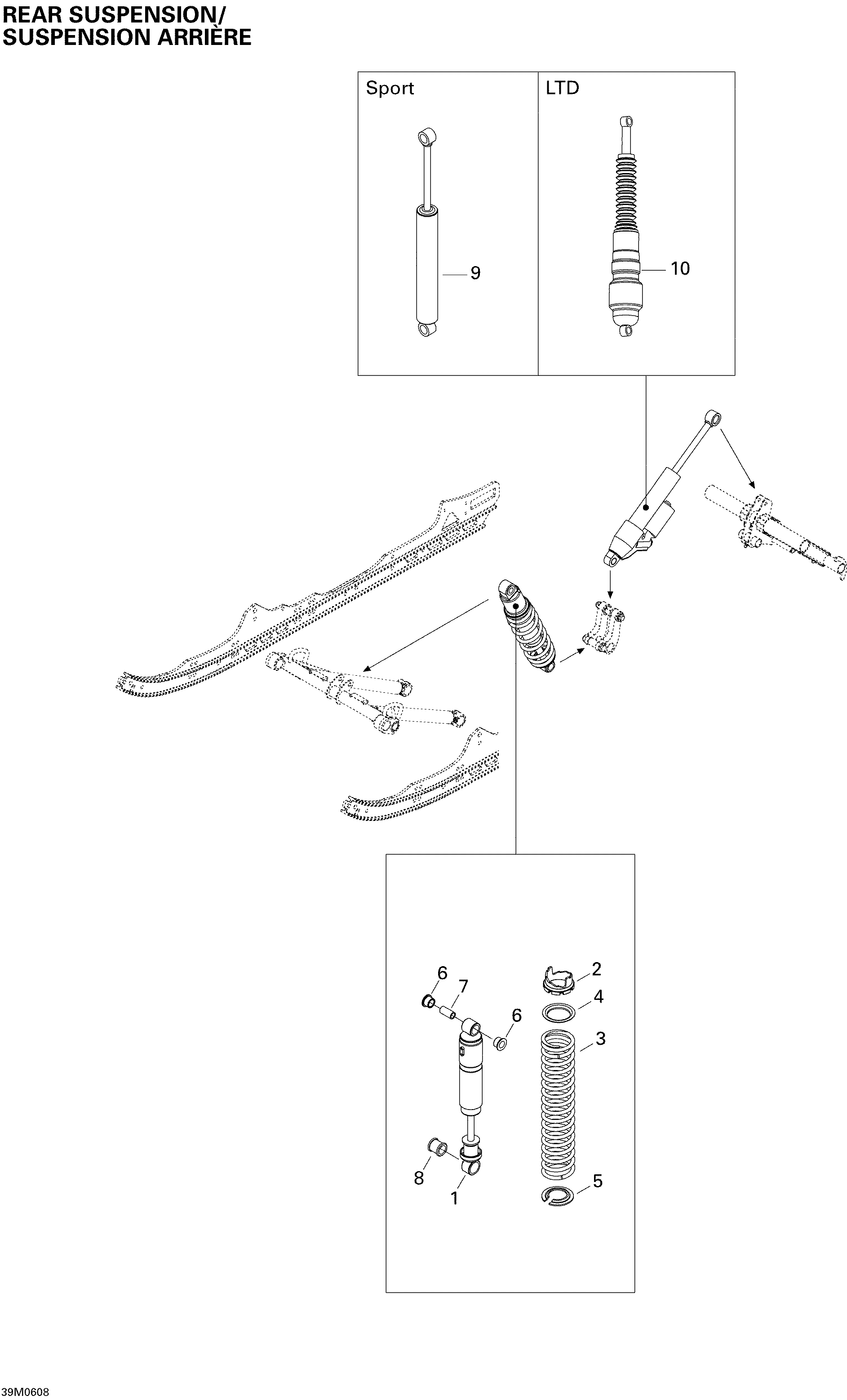

08- Rear Suspension Shocks для BRP Ski-Doo GTX 600 HO SDI - 2006
-
№АртикулНазвание
-
1503190663 Center ShockCenter Shock
-
2505070150 Cam 45°Cam 45°
-
3415070100 SpringSpring
-
4517184300 Spring GuideSpring Guide
-
5503189912 Spring StopperSpring Stopper
-
6503189117 CushionCushion
-
7503189282 BushingBushing
-
8503189271 CushionCushion
-
9503190979 Rear Shock. SportRear Shock. Sport
-
10503191051 Rear Shock SLS. LTDRear Shock SLS. LTD
