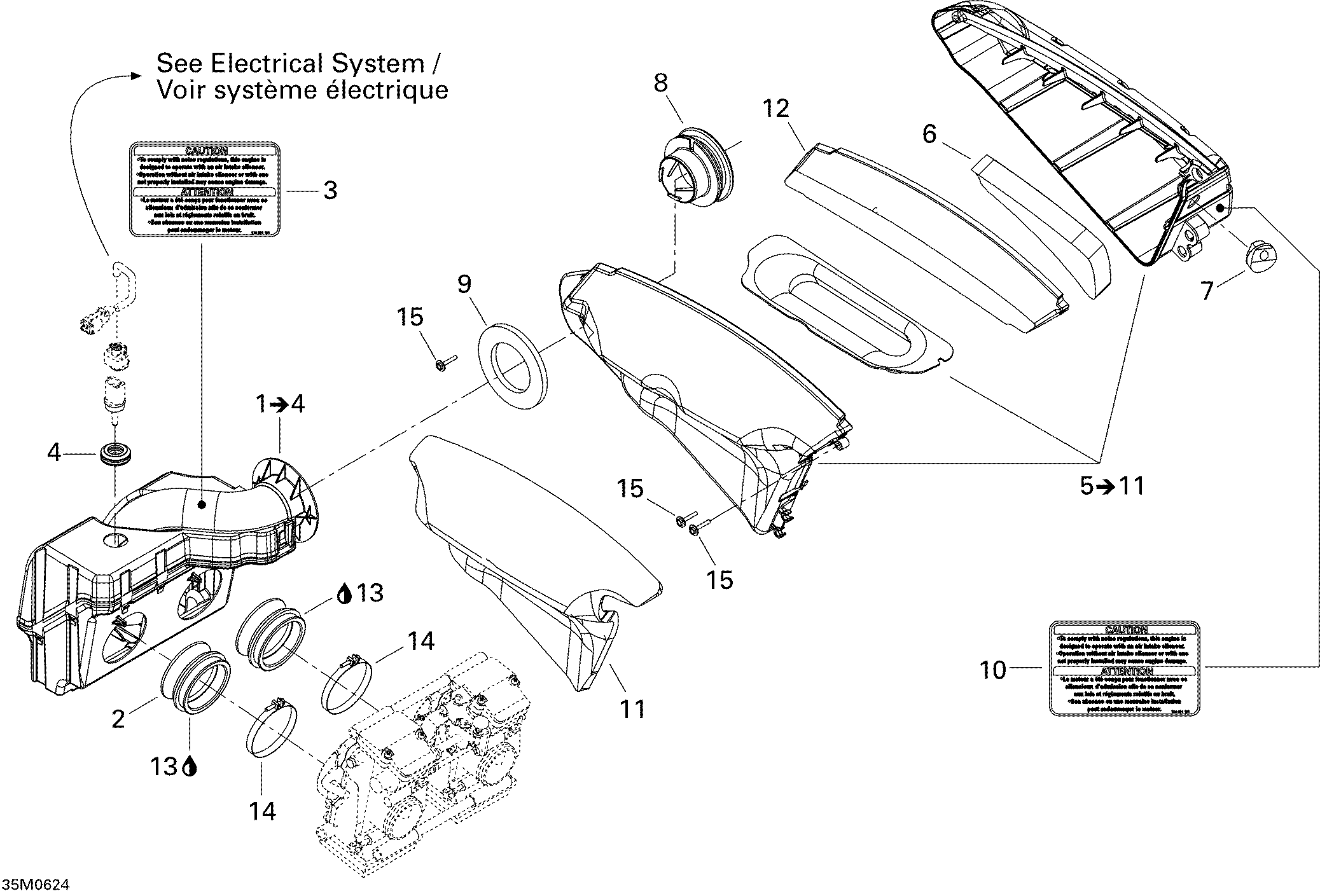

02- Air Intake System для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1508000388 Primary Chamber Ass'y. Includes 1 To 4Primary Chamber Ass'y. Includes 1 To 4
-
2508000132 Air Intake AdaptorAir Intake Adaptor
-
3516002715 Label (air Intake Installation)Label (air Intake Installation)
-
4570065500 GrommetGrommet
-
5508000431 Secondary Chamber Ass'y. Includes 5 To 11Secondary Chamber Ass'y. Includes 5 To 11
-
6508000145 Inner FoamInner Foam
-
7512059931 GrommetGrommet
-
8508000240 GuideGuide
-
9508000199 Outer FoamOuter Foam
-
10516002715 Label (air Intake Installation)Label (air Intake Installation)
-
11508000310 Outer FoamOuter Foam
-
12508000394 Air FilterAir Filter
-
13413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
13413803000 Injection Oil (3 X 4 Liters)Injection Oil (3 X 4 Liters)
-
13413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
14508000346 Gemi ClampGemi Clamp
-
15250000101 Screw M4 X 25Screw M4 X 25
