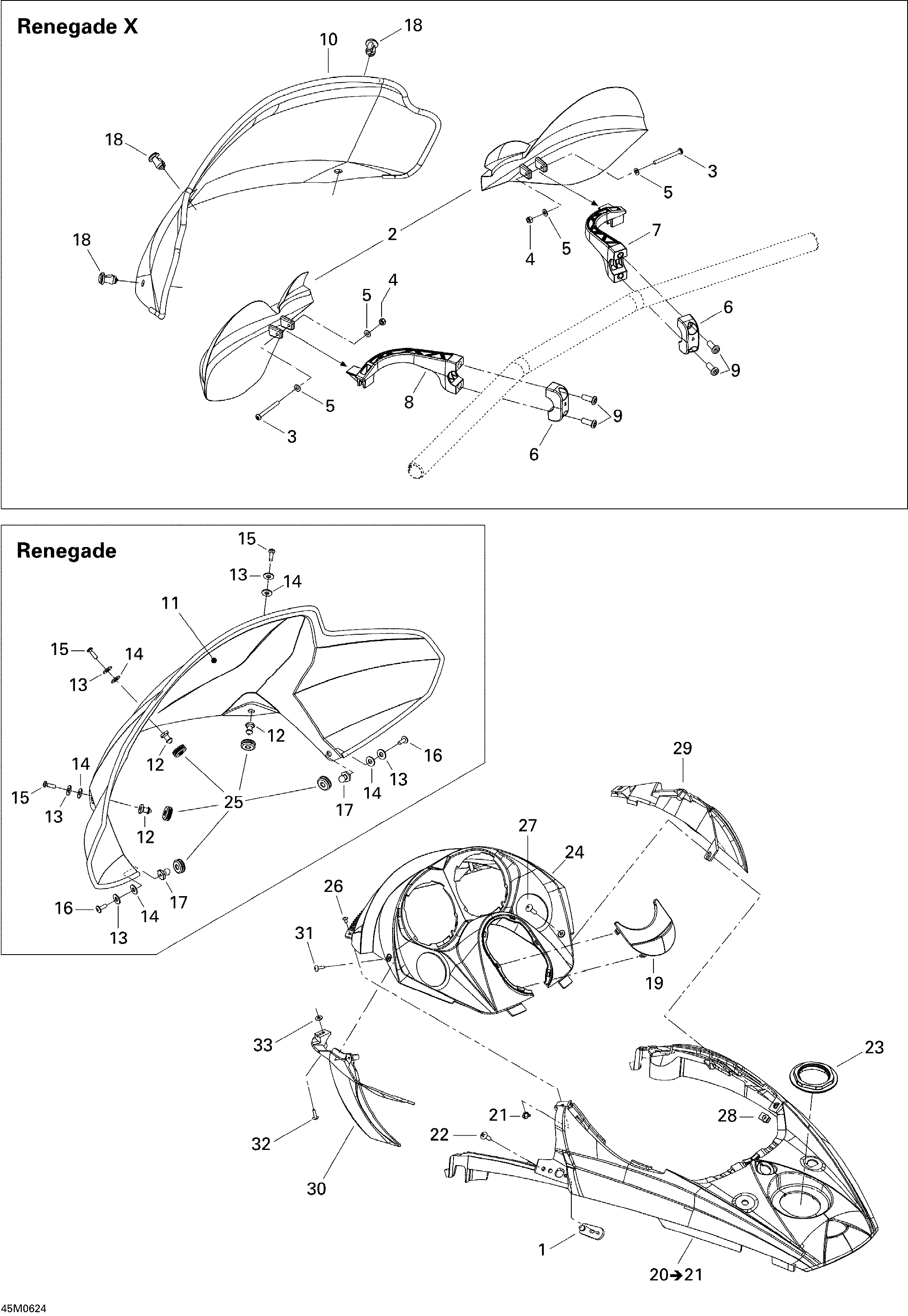

09- Windshield And Console для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2006
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2415128768 Air Deflector Kit, Yellow. Renegade XAir Deflector Kit, Yellow. Renegade X
-
3205444086 Socket Head Screw M4 X 40. Renegade XSocket Head Screw M4 X 40. Renegade X
-
4232541484 Elastic Stop Nut M6. Renegade XElastic Stop Nut M6. Renegade X
-
5234041480 Flat Washer 4 mm. Renegade XFlat Washer 4 mm. Renegade X
-
6517303264 U-Clamp. Renegade XU-Clamp. Renegade X
-
7517303590 RH Deflector Support. Renegade XRH Deflector Support. Renegade X
-
8517303591 LH Deflector Support. Renegade XLH Deflector Support. Renegade X
-
9250000172 Socket Head Screw M6 X 16. Renegade XSocket Head Screw M6 X 16. Renegade X
-
10517303045 Medium Windshield. Renegade XMedium Windshield. Renegade X
-
11517303511 Windshield With Trim, Medium. RenegadeWindshield With Trim, Medium. Renegade
-
12517303439 Knob. RenegadeKnob. Renegade
-
13250200025 Washer 5 mm. RenegadeWasher 5 mm. Renegade
-
14250200024 Rubber Washer 5 mm. RenegadeRubber Washer 5 mm. Renegade
-
15250000146 Torx Screw K50 X 16. RenegadeTorx Screw K50 X 16. Renegade
-
16250000145 Torx Screw M5 X 14. RenegadeTorx Screw M5 X 14. Renegade
-
17517245800 Knob. RenegadeKnob. Renegade
-
18293150089 Tuflok Plastique Rivet. Renegade XTuflok Plastique Rivet. Renegade X
-
19517302592 Console CapConsole Cap
-
20517302795 Center Console, Black. Includes 20 to 21, Renegade & Renegade XCenter Console, Black. Includes 20 to 21, Renegade & Renegade X
-
20517302845 Center Console, Yellow. Includes 20 to 21, RenegadeCenter Console, Yellow. Includes 20 to 21, Renegade
-
21250100030 T Flanged Nut, M4. Renegade & Renegade XT Flanged Nut, M4. Renegade & Renegade X
-
21250100030 T Flanged Nut, M4. RenegadeT Flanged Nut, M4. Renegade
-
22250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
23517302575 Console NutConsole Nut
-
24517303472 Indicator Support. Renegade XIndicator Support. Renegade X
-
24517303538 Indicator Support. RenegadeIndicator Support. Renegade
-
25517302841 Grommet. RenegadeGrommet. Renegade
-
26250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
27250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
28250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
29517302798 RH Air Deflector. Renegade XRH Air Deflector. Renegade X
-
29517303413 RH Air Deflector. RenegadeRH Air Deflector. Renegade
-
30517302799 LH Air Deflector. Renegade XLH Air Deflector. Renegade X
-
30517303414 LH Air Deflector. RenegadeLH Air Deflector. Renegade
-
31250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
32250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
33234042600 Flat Washer 4 mmFlat Washer 4 mm
