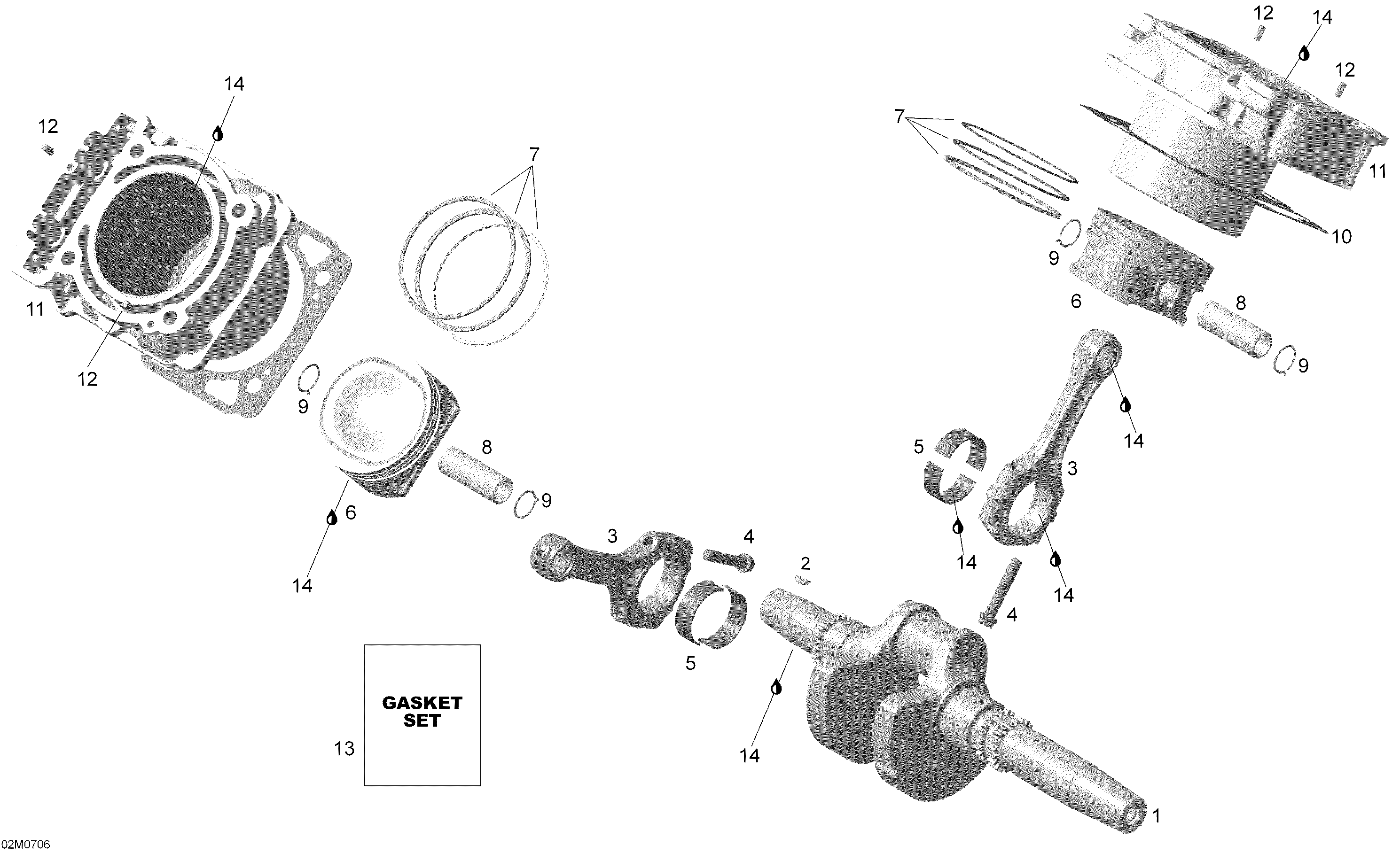

01- Crankshaft And Pistons для BRP Ski-Doo Expedition TUV V800 - 2007
-
№АртикулНазвание
-
1420819355 Crankshaft Ass'yCrankshaft Ass'y
-
2420246570 Woodruff KeyWoodruff Key
-
3420217425 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6420296775 Piston Ass'y, 90.958 mm. Includes 6 to 7Piston Ass'y, 90.958 mm. Includes 6 to 7
-
6420296776 piston with rings, oversize, 91.20mmpiston with rings, oversize, 91.20mm
-
7420296774 Piston Ring SetPiston Ring Set
-
8420216270 Piston PinPiston Pin
-
9420845106 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420613586 Cylinder Ass'y. Includes 11 to 12Cylinder Ass'y. Includes 11 to 12
-
12420929650 Drive Pin, 5 X 10Drive Pin, 5 X 10
-
13420684132 Engine Gasket SetEngine Gasket Set
-
14420929650 Drive Pin, 5 X 10Drive Pin, 5 X 10
