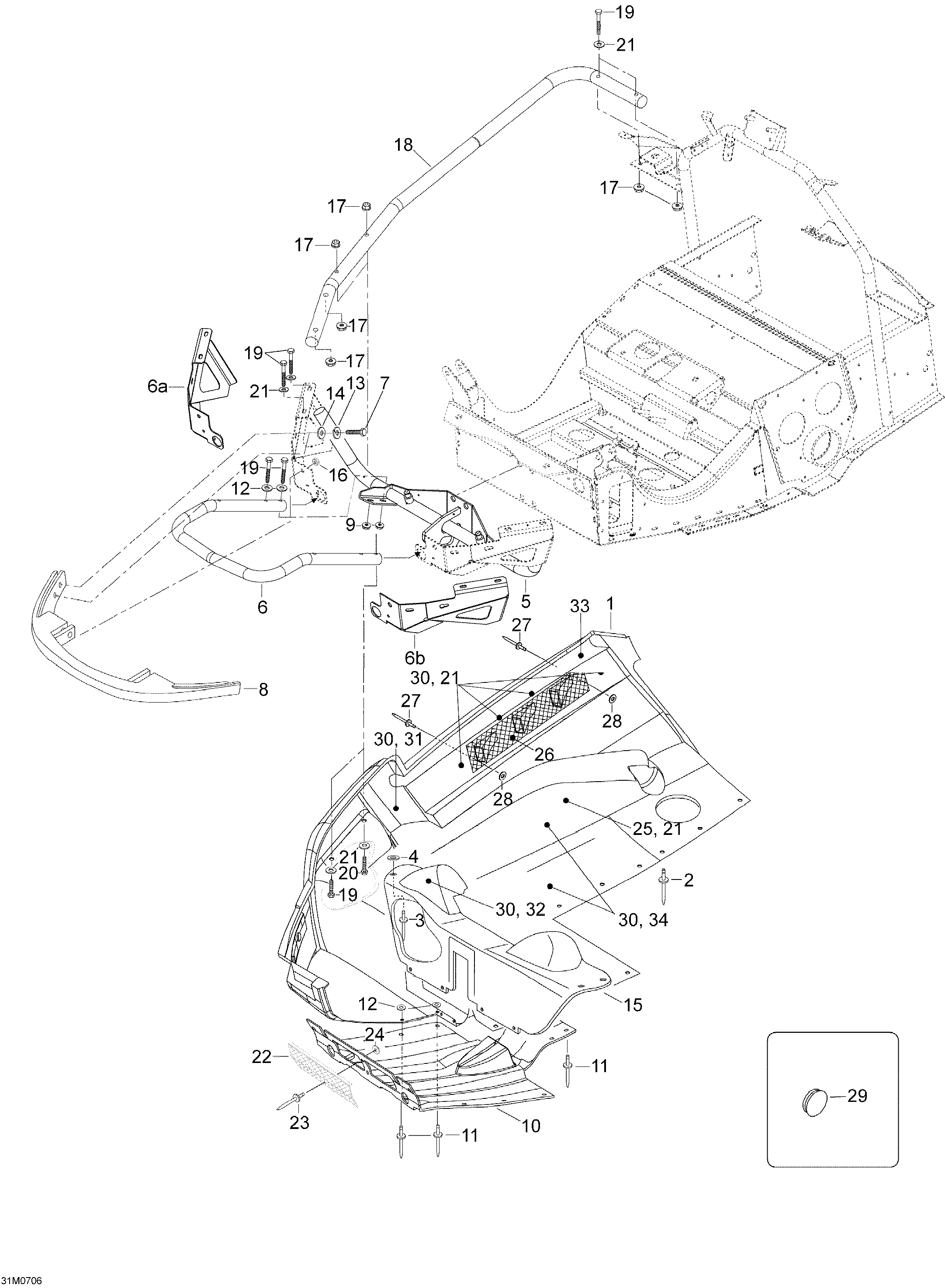

09- Bottom Pan для BRP Ski-Doo Expedition TUV V800 - 2007
-
№АртикулНазвание
-
1605152528 RH Bottom PanRH Bottom Pan
-
1605149805 LH Bottom PanLH Bottom Pan
-
2M36037 RivetRivet
-
3M36083 RivetRivet
-
4M20008 Washer 5 mmWasher 5 mm
-
5605253916 Bumper SupportBumper Support
-
6605351509 Bumper FrontBumper Front
-
6a604250848 RH Bumper SupportRH Bumper Support
-
6b604250847 LH Bumper SupportLH Bumper Support
-
7207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
8502006719 Bumper, BlackBumper, Black
-
9M33200 Nut M6Nut M6
-
10605152620 Bottom Pan, MiddleBottom Pan, Middle
-
11M36072 RivetRivet
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13234161471 Lock Washer M6, BlackLock Washer M6, Black
-
14M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
15605254459 CoverCover
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17M33200 Nut M6Nut M6
-
18605152371 Side BumperSide Bumper
-
19207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
20M40084 Screw M6 X 45Screw M6 X 45
-
21M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
22605252587 GrillGrill
-
23M36037 RivetRivet
-
24M20008 Washer 5 mmWasher 5 mm
-
25605351367 L.h Acoustic FoamL.h Acoustic Foam
-
26605352541 GrillGrill
-
27M36037 RivetRivet
-
28M20008 Washer 5 mmWasher 5 mm
-
29570277300 Bottom Pan CapBottom Pan Cap
-
30M44001 Reflective SheetReflective Sheet
-
31605352835 Reflective SheetReflective Sheet
-
32605352836 Reflective SheetReflective Sheet
-
33605352837 Heat ProtectorHeat Protector
-
34605352838 Reflective SheetReflective Sheet
