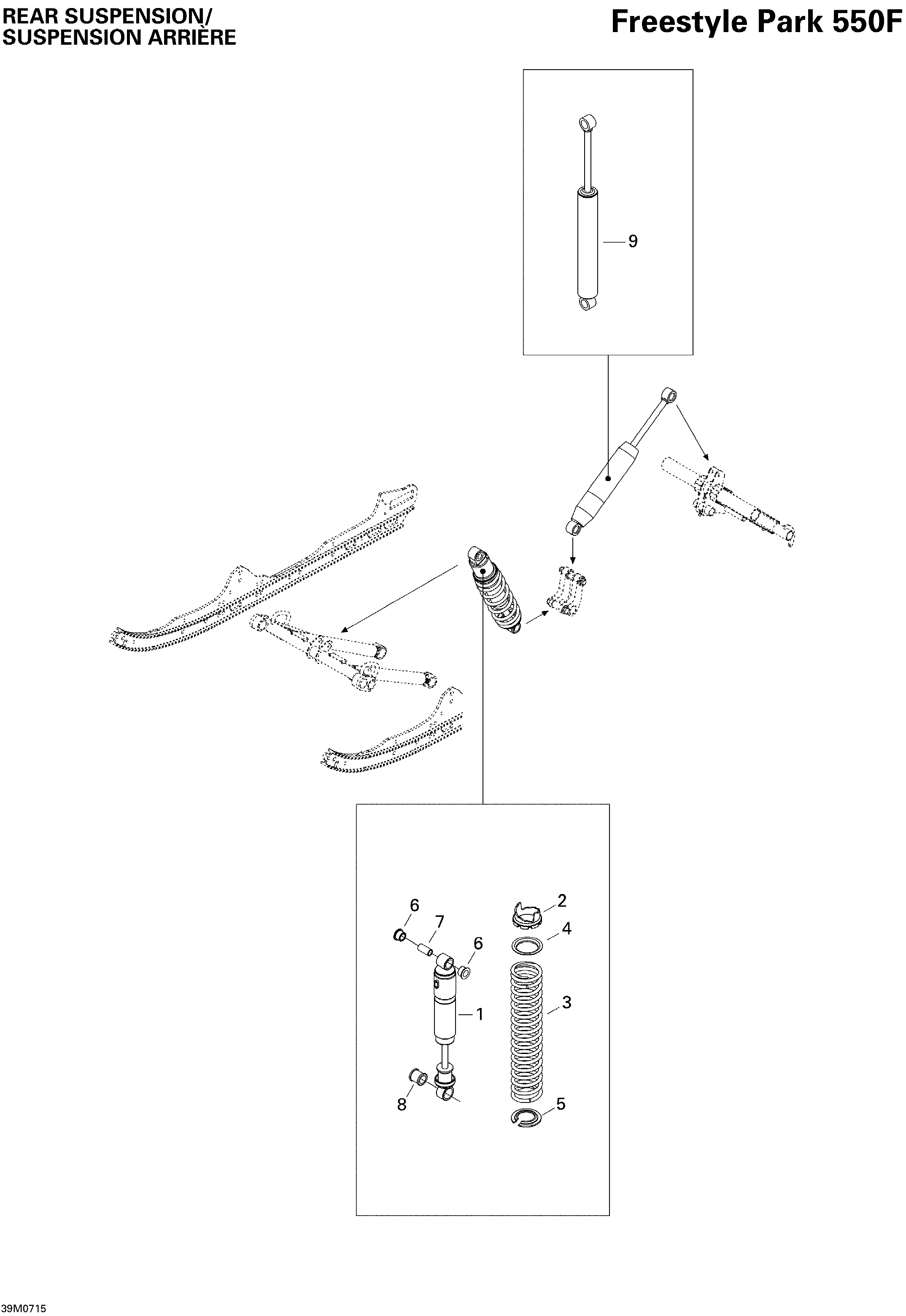

08- Rear Suspension Shocks для BRP Ski-Doo Freestyle Park 550F - 2007
-
№АртикулНазвание
-
1503190663 Center Shock. EuropeCenter Shock. Europe
-
1503191464 Center ShockCenter Shock
-
2505070150 Adjustment CamAdjustment Cam
-
3503191356 Spring. EuropeSpring. Europe
-
3503191476 SpringSpring
-
4517184300 Spring GuideSpring Guide
-
5503189912 Spring StopperSpring Stopper
-
6503189117 CushionCushion
-
7503189282 BushingBushing
-
8503189271 CushionCushion
-
9503190809 Rear Shock. EuropeRear Shock. Europe
-
9503191470 Rear ShockRear Shock
