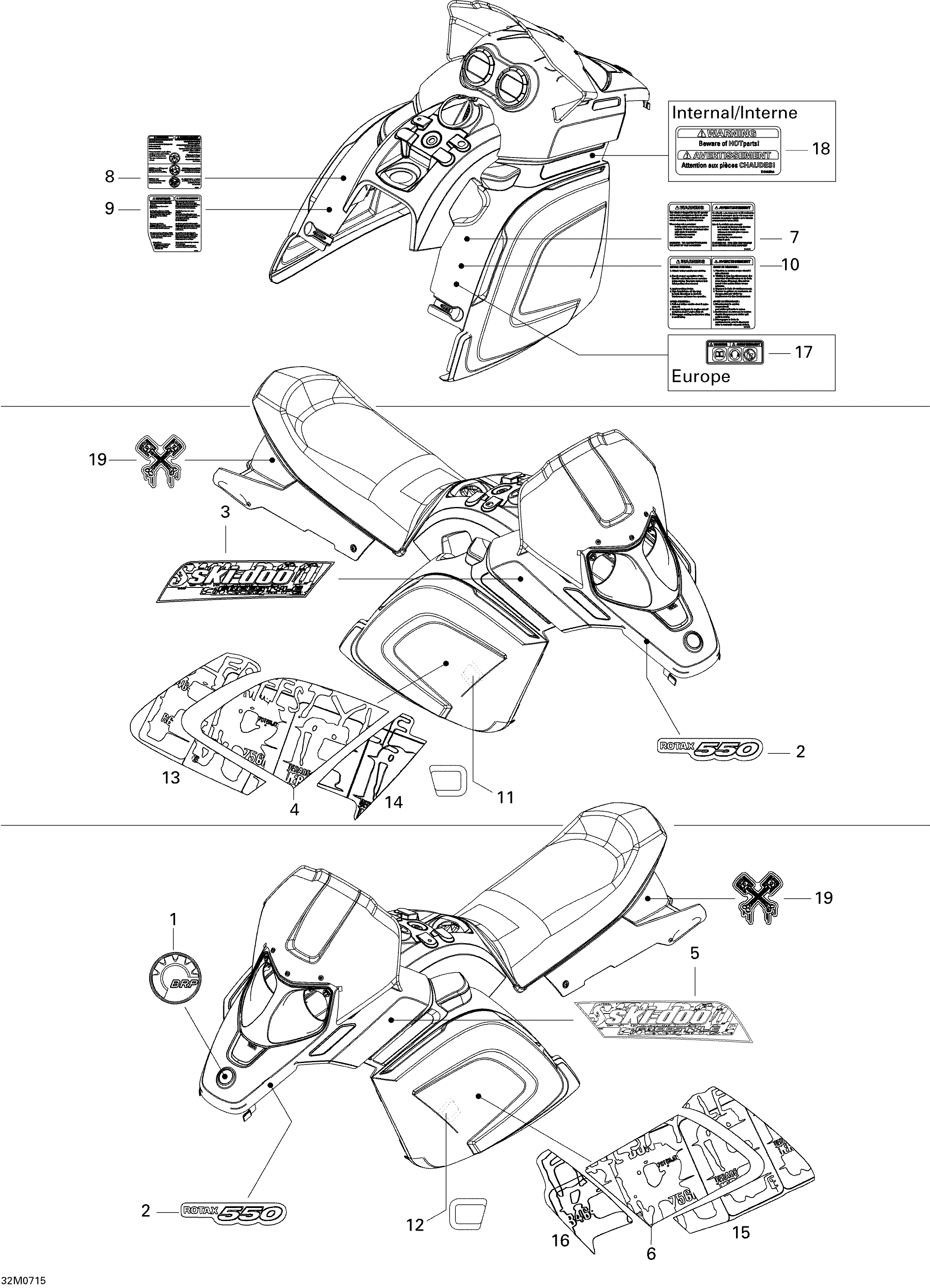

09- Decals для BRP Ski-Doo Freestyle Park 550F - 2007
-
№АртикулНазвание
-
1219902468 Logo BRPLogo BRP
-
2516003273 Hood Decal, Rotax 550Hood Decal, Rotax 550
-
3516003186 RH Upper Side Decal, Ski-Doo FreestyleRH Upper Side Decal, Ski-Doo Freestyle
-
4516003189 RH Side DecalRH Side Decal
-
5516003185 LH Upper Side Decal, Ski-Doo FreestyleLH Upper Side Decal, Ski-Doo Freestyle
-
6516003263 LH Side DecalLH Side Decal
-
7516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
8516002908 Security Label, GeneralSecurity Label, General
-
9516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
10516003024 Security Label, StartingSecurity Label, Starting
-
11516001910 RH Protector DecalRH Protector Decal
-
12516001911 LH Protector DecalLH Protector Decal
-
13516003191 RH External Side DecalRH External Side Decal
-
14516003193 RH Front Side DecalRH Front Side Decal
-
15516003266 LH External Side DecalLH External Side Decal
-
16516003192 LH Front Side DecalLH Front Side Decal
-
17516003027 Europe Pictogram Decal. EuropeEurope Pictogram Decal. Europe
-
18516002965 Security Label, Hot PartsSecurity Label, Hot Parts
-
19516003187 Side Decal, X PistonSide Decal, X Piston
