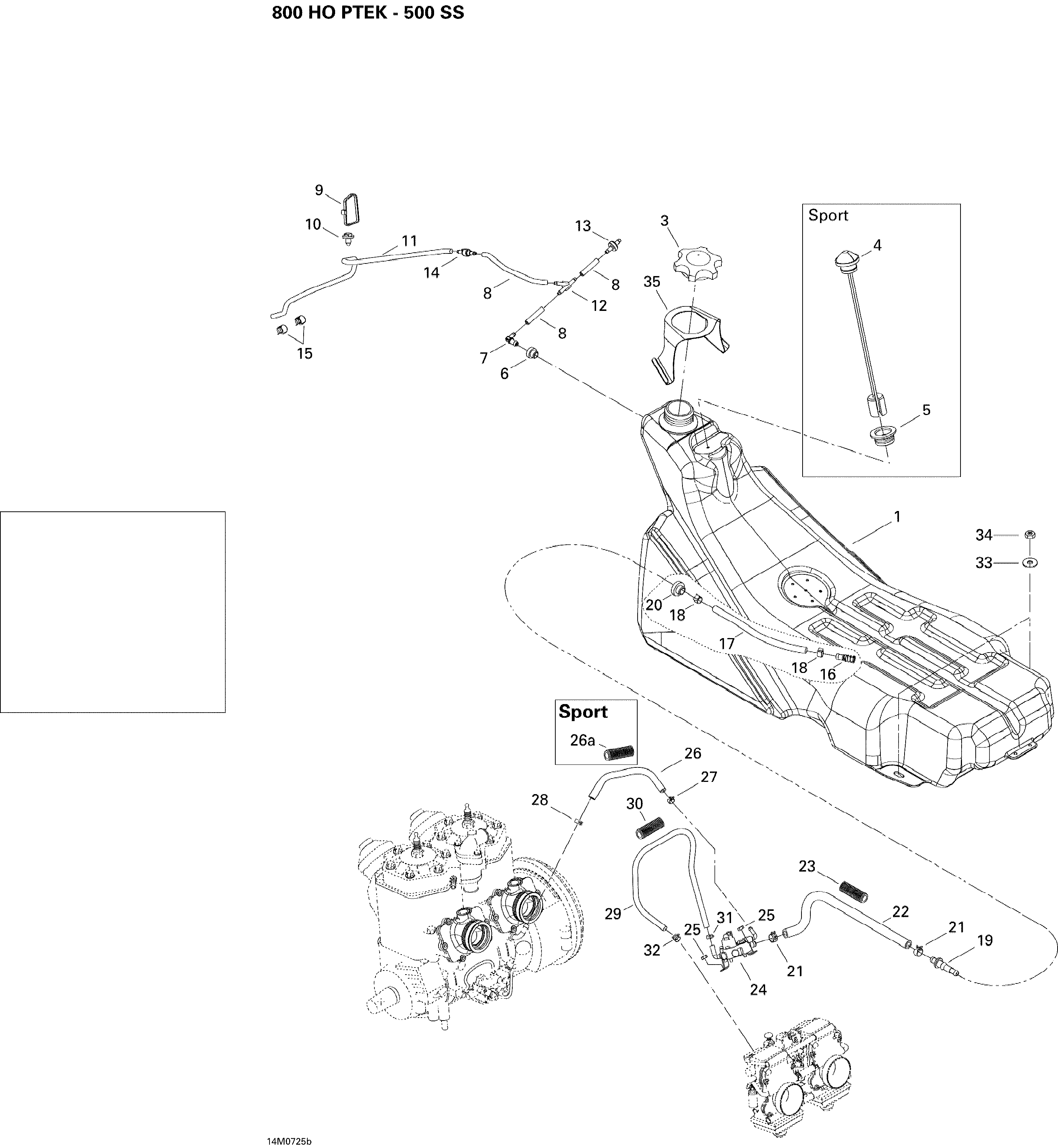

02- Fuel System 500 SS для BRP Ski-Doo GSX Sport 500 SS - 2007
-
№АртикулНазвание
-
1513033171 Fuel TankFuel Tank
-
3513033025 CapCap
-
4513033358 Fuel GaugeFuel Gauge
-
5293720058 GrommetGrommet
-
6513032908 GrommetGrommet
-
7414580700 Elbow Male ConnectorElbow Male Connector
-
8415080200 Polyurethane HosePolyurethane Hose
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10293730018 Mount DartMount Dart
-
11415080200 Polyurethane HosePolyurethane Hose
-
12293710059 Y FittingY Fitting
-
13275500398 Check ValveCheck Valve
-
14275500505 Check ValveCheck Valve
-
15414554800 Spring ClampSpring Clamp
-
16414872100 Fuel FilterFuel Filter
-
17513033070 HoseHose
-
18513033010 Norma Spring ClampNorma Spring Clamp
-
19414872700 Male ConnectorMale Connector
-
20570273900 GrommetGrommet
-
21293650053 Crimp ClampCrimp Clamp
-
22513033027 HoseHose
-
23415080000 Tubing 16 mmTubing 16 mm
-
24403901812 Fuel PumpFuel Pump
-
25233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
26513033035 HoseHose
-
26a409901800 Tubing 13 mmTubing 13 mm
-
27414415200 Universal Spring ClampUniversal Spring Clamp
-
28513033029 Spring ClampSpring Clamp
-
29415117800 TubeTube
-
30415079900 Tubing 10 mmTubing 10 mm
-
31293650042 Oetiker ClampOetiker Clamp
-
32414420700 Spring ClipSpring Clip
-
33234082410 Flat Washer 8 mmFlat Washer 8 mm
-
34232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
35513033066 SupportSupport
