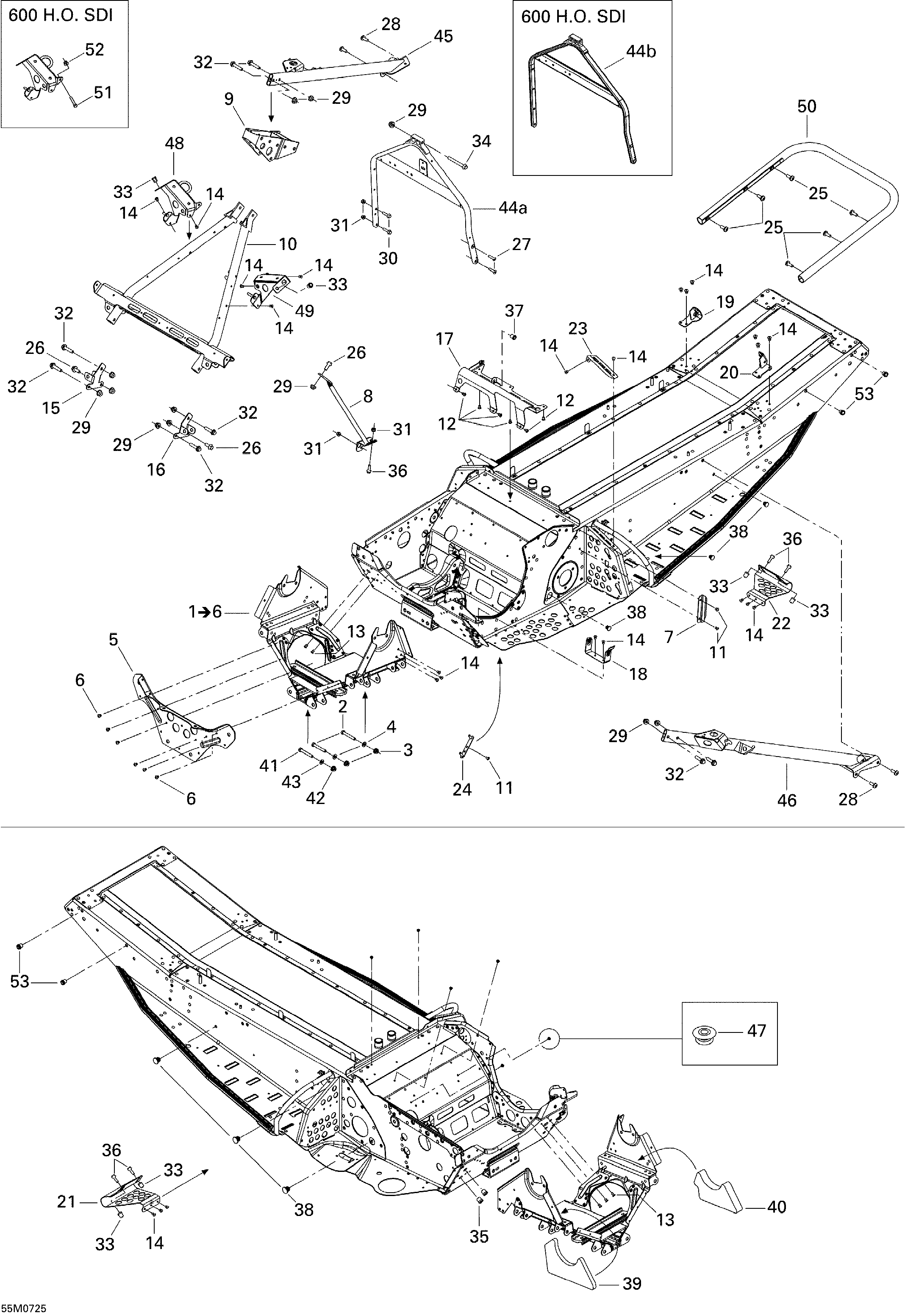

09- Frame and Components 500 SS для BRP Ski-Doo GSX Sport 500 SS - 2007
-
№АртикулНазвание
-
1518325423 Cross Member. Includes 1 to 6Cross Member. Includes 1 to 6
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6390909100 Avex RivetAvex Rivet
-
7518317504 Cable ProtectorCable Protector
-
8518323472 Brace, BlackBrace, Black
-
9518323854 Bracket BlockBracket Block
-
10518324739 Upper Cross MemberUpper Cross Member
-
11390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390909100 Avex RivetAvex Rivet
-
14390909200 Avex RivetAvex Rivet
-
15518322461 RH Shock BracketRH Shock Bracket
-
16518322462 LH Shock BracketLH Shock Bracket
-
17518323532 Intake Air Admission SupportIntake Air Admission Support
-
18518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
19518323535 RH Console SupportRH Console Support
-
20518323536 LH Console SupportLH Console Support
-
21518324391 RH Toe HoldRH Toe Hold
-
22518324392 LH Toe HoldLH Toe Hold
-
23518323105 Plate, BlackPlate, Black
-
24518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
25236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
26207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
27205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
28250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
29233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
30207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
31233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
32207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
33415107300 InsertInsert
-
34207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
35293450166 InsertInsert
-
36207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
37293450232 InsertInsert
-
38518321954 Fastener PanelFastener Panel
-
39518323453 RH Front FoamRH Front Foam
-
40518323007 LH Front FoamLH Front Foam
-
41207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
42233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
43234081410 Flat Washer 8 mmFlat Washer 8 mm
-
44a518323979 Handle SupportHandle Support
-
45518323352 RH MemberRH Member
-
46518323354 LH MemberLH Member
-
48518323769 RH Bracket, BlackRH Bracket, Black
-
49518323770 LH Bracket, BlackLH Bracket, Black
-
50518325216 Rear BumperRear Bumper
-
53415107300 InsertInsert
