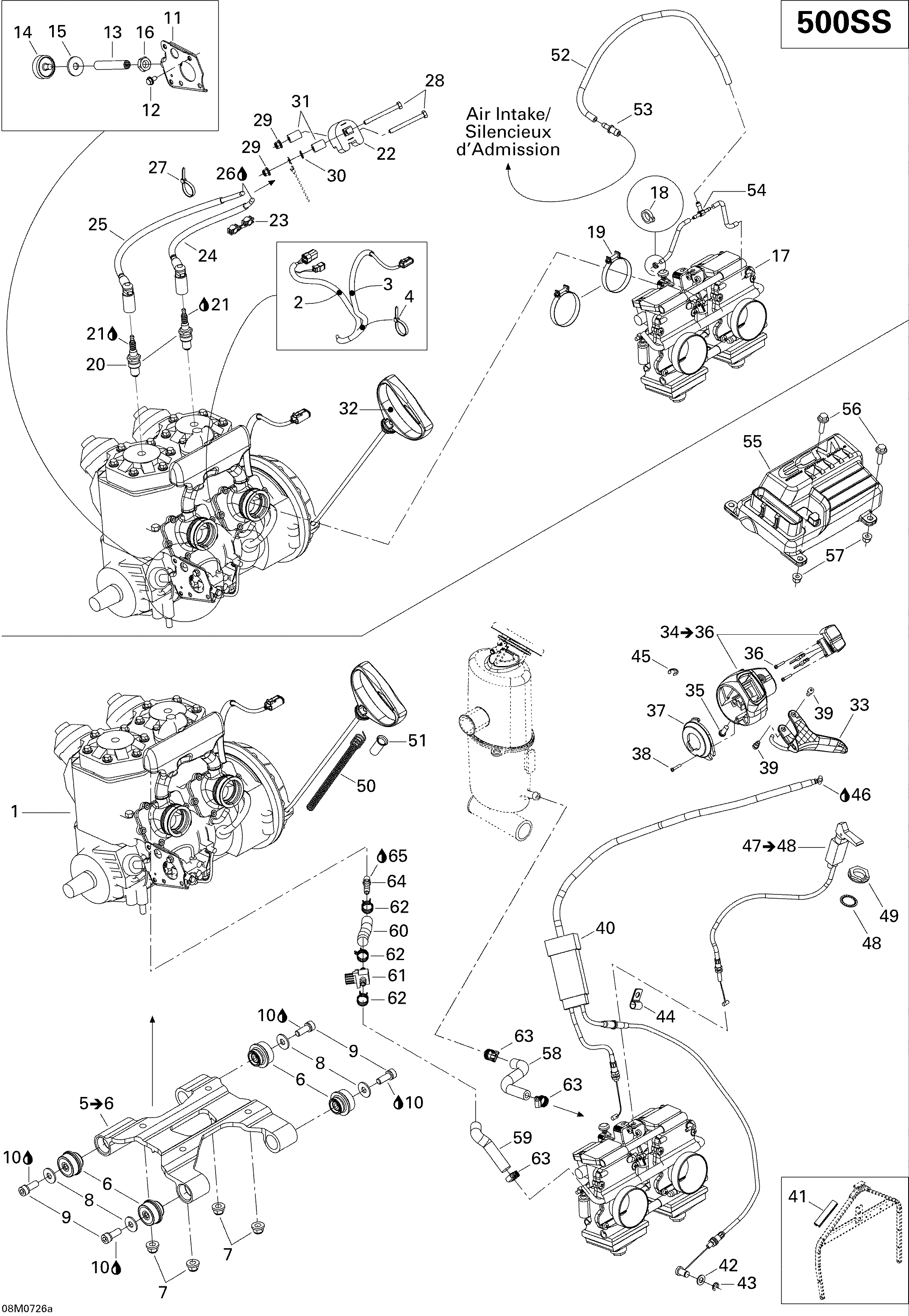

01- Engine 500SS для BRP Ski-Doo GTX Sport 500 SS - 2007
-
№АртикулНазвание
-
1400509771 Engine 593Engine 593
-
2409901800 Tubing 13 mmTubing 13 mm
-
3415079900 Tubing 10 mmTubing 10 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5512060047 Engine Support Ass'y. Includes 5 to 6Engine Support Ass'y. Includes 5 to 6
-
6512059691 Rubber MountRubber Mount
-
7233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
8506151251 WasherWasher
-
9235202544 Torx Low Head Socket Screw M10 X 25Torx Low Head Socket Screw M10 X 25
-
10413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
11512059840 PlatePlate
-
12207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
13250500007 Stopper ScrewStopper Screw
-
14512059610 StopperStopper
-
15512059057 WasherWasher
-
16232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
17403138788 Carburetor Kit TM40-B352Z1Carburetor Kit TM40-B352Z1
-
18293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
19512059835 Gemi ClampGemi Clamp
-
20415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
22512059968 Ignition CoilIgnition Coil
-
23410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
24512059695 Cable Ass'y, 300 mmCable Ass'y, 300 mm
-
25512059696 Cable Ass'y, 375 mmCable Ass'y, 375 mm
-
26293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28207066044 Hex Screw M6 X 60Hex Screw M6 X 60
-
29233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
30394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
31517203200 SpacerSpacer
-
32572084400 Starter GripStarter Grip
-
33512060302 Throttle Handle Ass'yThrottle Handle Ass'y
-
34512060121 Housing Throttle Ass'y. Includes 34 to 36Housing Throttle Ass'y. Includes 34 to 36
-
35250000036 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
36250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
37512059698 CoverCover
-
38250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
39732601143 Flanged ScrewFlanged Screw
-
40512060084 Throttle CableThrottle Cable
-
41512059750 ProtectorProtector
-
42234081100 Flat Washer 8 mmFlat Washer 8 mm
-
43414753500 CirclipCirclip
-
44293750042 Tie ClampTie Clamp
-
45414274500 CirclipCirclip
-
46293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
47512059266 Choke Cable. Includes 47 to 48Choke Cable. Includes 47 to 48
-
48394103300 Lock Washer, Interior TeethLock Washer, Interior Teeth
-
49512059094 Plastic NutPlastic Nut
-
50512059535 Rope GuideRope Guide
-
51512059536 TubeTube
-
52415080200 Polyurethane HosePolyurethane Hose
-
53293710035 Straight FittingStraight Fitting
-
54572045500 T-ConnectorT-Connector
-
55512060056 Calibrated ModuleCalibrated Module
-
56207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
57233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
58509000171 Formed HoseFormed Hose
-
59509000407 Hose 8 mmHose 8 mm
-
60509000407 Hose 8 mmHose 8 mm
-
61512059324 Valve 5/16''Valve 5/16''
-
62414655700 Spring ClampSpring Clamp
-
63293650170 Hose ClampHose Clamp
-
64512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
65293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
