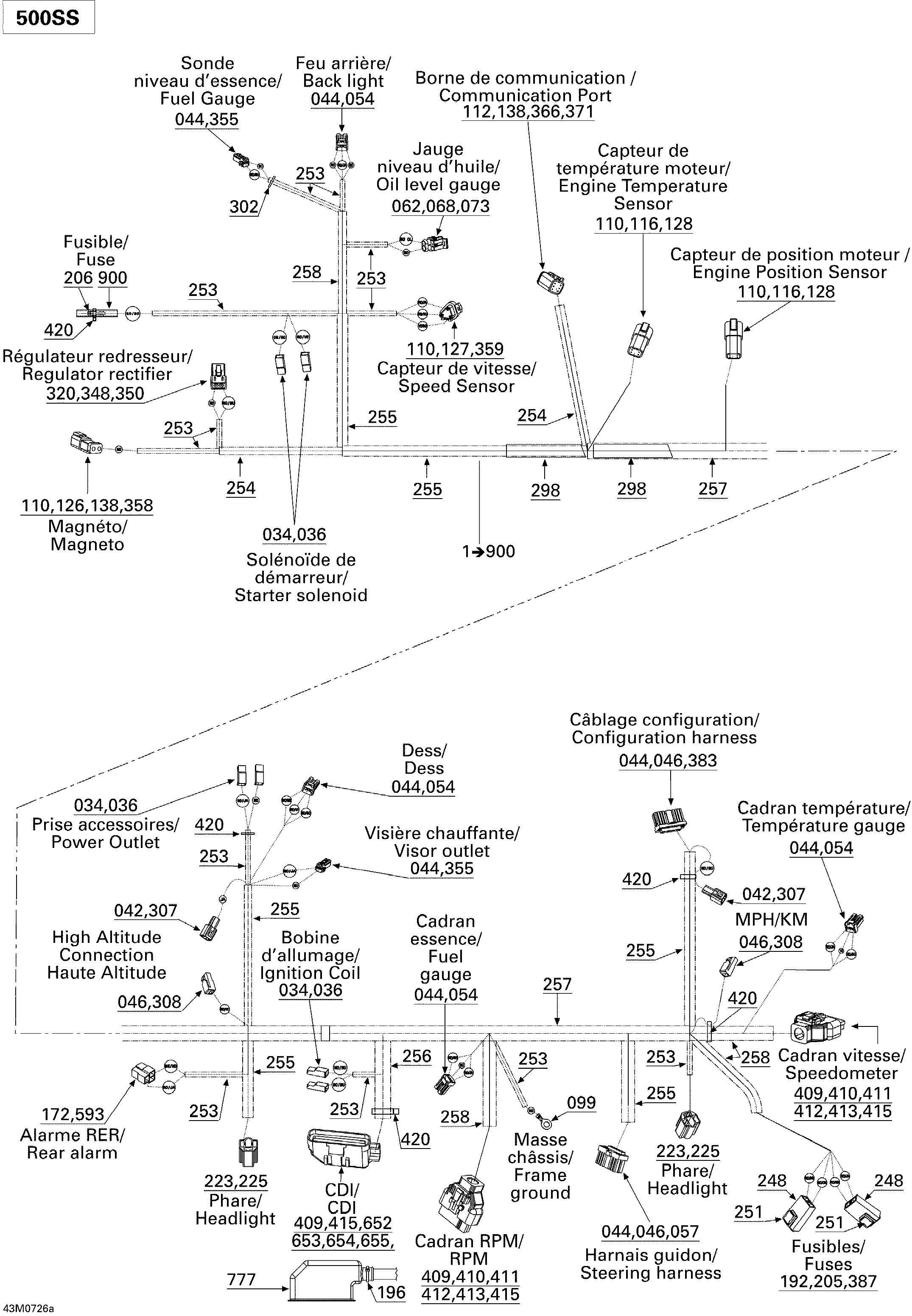

10- Electrical Harness 500SS для BRP Ski-Doo GTX Sport 500 SS - 2007
-
№АртикулНазвание
-
1515176426 Frame Wiring Harness. Includes 1 to 900Frame Wiring Harness. Includes 1 to 900
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
42515175273 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
57515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
62278001014 Female TerminalFemale Terminal
-
68409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
73278001013 Wire SealWire Seal
-
99278000992 Open BarrelOpen Barrel
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
116278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
128278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
205409011600 Female TerminalFemale Terminal
-
206409004200 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
248409004000 Fuse HolderFuse Holder
-
251409014200 ClipClip
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 TubingTubing
-
258415079900 Tubing 10 mmTubing 10 mm
-
298293740005 Vinyl Tape 3/4'', BlackVinyl Tape 3/4'', Black
-
302293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
307515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
308515175510 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
320515175567 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
350278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
358515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
359515175666 Male HousingMale Housing
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
413515175804 BlockBlock
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
593515176069 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
652515176221 Female HousingFemale Housing
-
653515176222 Wire SealWire Seal
-
654515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
655515176224 Terminal SupportTerminal Support
-
777515176485 Protection CapProtection Cap
-
900415079200 HoseHose
