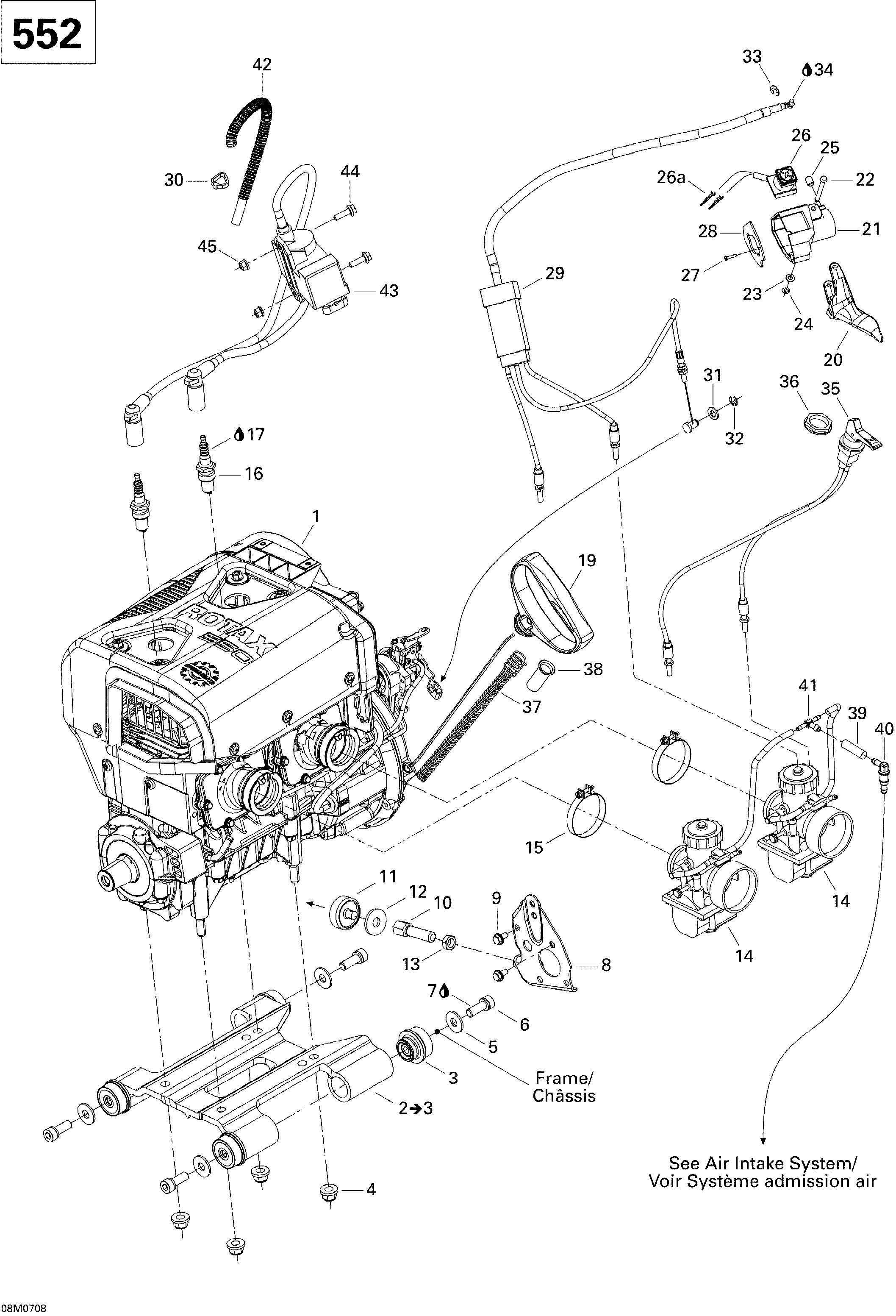

01- Engine And Engine Support для BRP Ski-Doo MX Z 550F - 2007
-
№АртикулНазвание
-
1400509770 Engine 552Engine 552
-
2512060034 Engine Support. Includes 2 to 3Engine Support. Includes 2 to 3
-
3512059691 Rubber MountRubber Mount
-
4233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5506151251 WasherWasher
-
6235202544 Torx Low Head Socket Screw M10 X 25Torx Low Head Socket Screw M10 X 25
-
7413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
8512059910 Support PlateSupport Plate
-
9207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
10512058800 Stopper ScrewStopper Screw
-
11512059610 StopperStopper
-
12512059057 WasherWasher
-
13732610019 RH Hex Jam Nut M12RH Hex Jam Nut M12
-
14403138772 Carburetor VM34-617Carburetor VM34-617
-
15512059834 Gemi ClampGemi Clamp
-
16414961100 Spark Plug, NGK Br9esSpark Plug, NGK Br9es
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
19572084400 Starter GripStarter Grip
-
20512060214 Handle Assy. FANHandle Assy. FAN
-
20512060214 Handle Assy. 550XHandle Assy. 550X
-
21512060193 Throttle HousingThrottle Housing
-
22414438700 Lever PinLever Pin
-
23234051600 Flat Washer M5Flat Washer M5
-
24293370050 CirclipCirclip
-
25414440800 Set Screw M8 X 10Set Screw M8 X 10
-
26515176091 Kill SwitchKill Switch
-
26a515175232 Male TerminalMale Terminal
-
27250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
28512059507 PlatePlate
-
29512059913 Throttle CableThrottle Cable
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31234081100 Flat Washer 8 mmFlat Washer 8 mm
-
32414753500 CirclipCirclip
-
33414274500 CirclipCirclip
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35512059914 Choke CableChoke Cable
-
36512060016 Plastic NutPlastic Nut
-
37512059535 Rope GuideRope Guide
-
38512059536 TubeTube
-
39415080200 Polyurethane HosePolyurethane Hose
-
40414580600 Elbow Male ConnectorElbow Male Connector
-
41572045500 T-ConnectorT-Connector
-
42409901700 Tubing 9 mmTubing 9 mm
-
43512060040 Calibrated ModuleCalibrated Module
-
44207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
45233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
