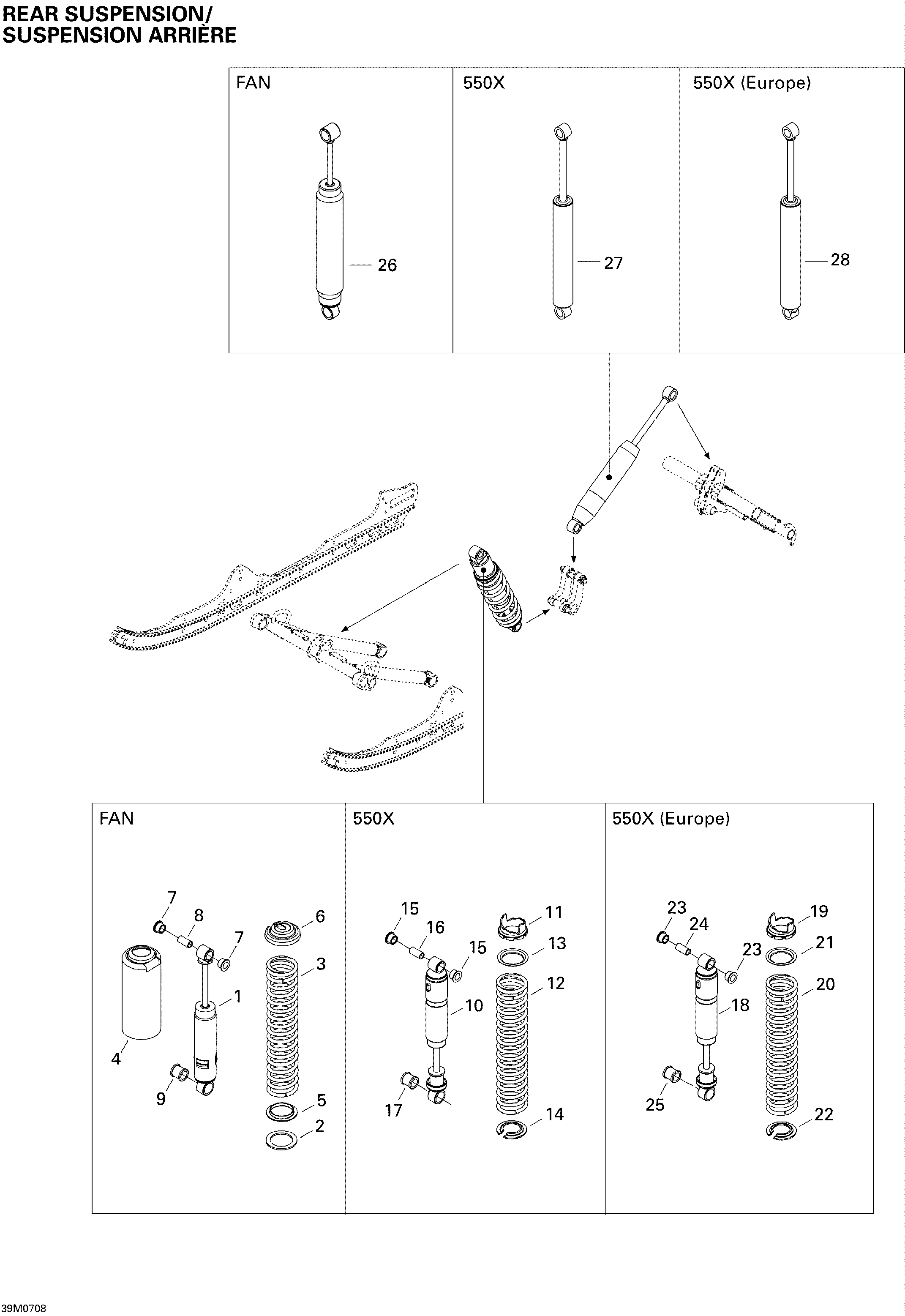

08- Rear Suspension Shocks FAN для BRP Ski-Doo MX Z 550F - 2007
-
№АртикулНазвание
-
1503190992 Center Shock. FANCenter Shock. FAN
-
2505070401 Washer. FANWasher. FAN
-
3415070100 Spring. FANSpring. FAN
-
4503191126 Protector. FANProtector. FAN
-
5503187500 Spring Guide. FANSpring Guide. FAN
-
6503140600 Spring Stopper. FANSpring Stopper. FAN
-
7503189117 Cushion. FANCushion. FAN
-
8503189282 Bushing. FANBushing. FAN
-
9503189271 Cushion. FANCushion. FAN
-
26503190991 Rear Shock. FANRear Shock. FAN
