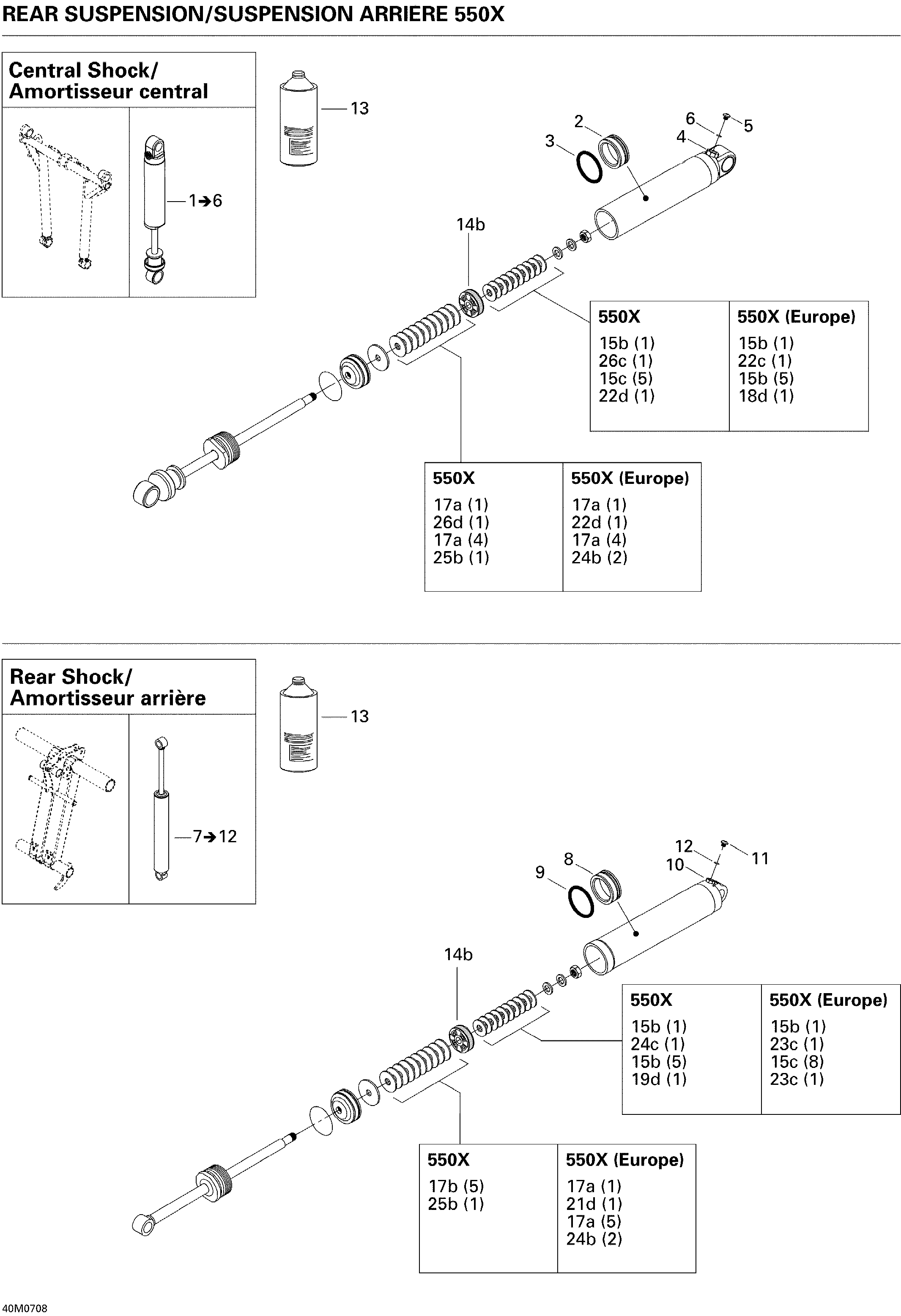

08- Take Apart Shock, Rear 550X для BRP Ski-Doo MX Z 550X - 2007
-
№АртикулНазвание
-
1503191294 Center Shock. Includes 1 to 6Center Shock. Includes 1 to 6
-
1503191463 Center Shock. Includes 1 to 6, EuropeCenter Shock. Includes 1 to 6, Europe
-
2415097900 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4505070398 Air Valve RingAir Valve Ring
-
5505070399 ScrewScrew
-
6505070400 O-RingO-Ring
-
7503191297 Rear Shock. Includes 7 to 12Rear Shock. Includes 7 to 12
-
7503191465 Rear Shock. Includes 7 to 12, EuropeRear Shock. Includes 7 to 12, Europe
-
8415097900 Free PistonFree Piston
-
9414888312 O-RingO-Ring
-
10505070398 Air Valve RingAir Valve Ring
-
11505070399 ScrewScrew
-
12505070400 O-RingO-Ring
-
13293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
14a414888304 Piston, C36Piston, C36
-
14c414888305 Piston, 2 X 0.3-2, C36Piston, 2 X 0.3-2, C36
-
14e414888306 Piston, 2 X 0.3-4, C36Piston, 2 X 0.3-4, C36
-
14g414888307 Piston, 2 X 0.3-6, C36Piston, 2 X 0.3-6, C36
-
15a415039100 Leaf Valve O30 X 0.254, C36Leaf Valve O30 X 0.254, C36
-
15b414888318 Leaf Valve O30 X 0.203, C36Leaf Valve O30 X 0.203, C36
-
15c414888319 Leaf Valve O30 X 0.152, C36Leaf Valve O30 X 0.152, C36
-
16b414888320 Leaf Valve O28 X 0.203, C36Leaf Valve O28 X 0.203, C36
-
16c414888321 Leaf Valve O28 X 0.152, C36Leaf Valve O28 X 0.152, C36
-
17a415039000 Leaf Valve O26 X 0.254, C36Leaf Valve O26 X 0.254, C36
-
17b414888322 Leaf Valve O26 X 0.203, C36Leaf Valve O26 X 0.203, C36
-
17c414888323 Leaf Valve O26 X 0.152, C36Leaf Valve O26 X 0.152, C36
-
19b414888324 Leaf Valve O22 X 0.203, C36Leaf Valve O22 X 0.203, C36
-
19c414888325 Leaf Valve O22 X 0.152, C36Leaf Valve O22 X 0.152, C36
-
20d414888340 Leaf Valve O21 X 0.114, C36Leaf Valve O21 X 0.114, C36
-
21b414888326 Leaf Valve O20 X 0.203, C36Leaf Valve O20 X 0.203, C36
-
21c414888327 Leaf Valve O20 X 0.152, C36Leaf Valve O20 X 0.152, C36
-
21d414888328 Leaf Valve O20 X 0.114, C36Leaf Valve O20 X 0.114, C36
-
23b414888329 Leaf Valve O18 X 0.203, C36Leaf Valve O18 X 0.203, C36
-
23C414888330 Leaf Valve O18 X 0.152, C36Leaf Valve O18 X 0.152, C36
-
25a414888331 Leaf Valve O16 X 0.254, C36Leaf Valve O16 X 0.254, C36
-
25b414888332 Leaf Valve O16 X 0.203, C36Leaf Valve O16 X 0.203, C36
-
25c414888333 Leaf Valve O16 X 0.152, C36Leaf Valve O16 X 0.152, C36
-
25d415038900 Leaf Valve O16 X 0.114, C36Leaf Valve O16 X 0.114, C36
-
26a414888334 Leaf Valve O15 X 0.254, C36Leaf Valve O15 X 0.254, C36
-
26b414888335 Leaf Valve O15 X 0.203, C36Leaf Valve O15 X 0.203, C36
-
26c414888336 Leaf Valve O15 X 0.152, C36Leaf Valve O15 X 0.152, C36
-
26d414888337 Leaf Valve O15 X 0.114, C36Leaf Valve O15 X 0.114, C36
-
29a503189538 Leaf Valve O12 X 0.254, C36Leaf Valve O12 X 0.254, C36
-
29b414888338 Leaf Valve O12 X 0.203, C36Leaf Valve O12 X 0.203, C36
-
29c414888339 Leaf Valve O12 X 0.152, C36Leaf Valve O12 X 0.152, C36
-
29D415038800 Leaf Valve O12 X 0.114, C36Leaf Valve O12 X 0.114, C36
