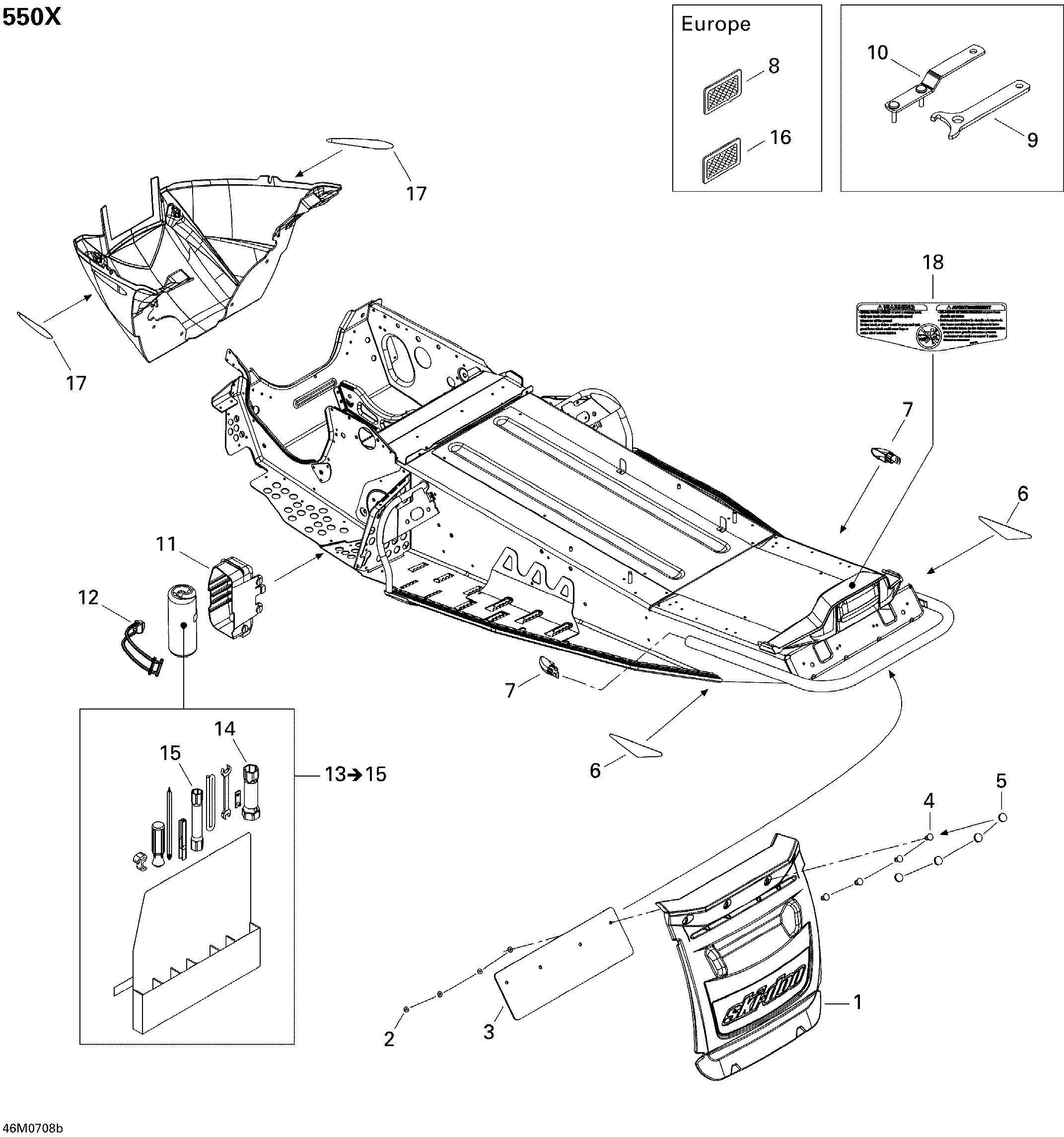

09- Utilities 550X для BRP Ski-Doo MX Z 550X - 2007
-
№АртикулНазвание
-
1520000596 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000237 Rear Reflector, RedRear Reflector, Red
-
6520000311 Rear Reflector, Amber. EuropeRear Reflector, Amber. Europe
-
7520000272 CapCap
-
8520000271 Reflector Amber, Europe. EuropeReflector Amber, Europe. Europe
-
9529032900 Adjustment WrenchAdjustment Wrench
-
10520000126 Adjustment WrenchAdjustment Wrench
-
11520000322 TrunkTrunk
-
12520000528 LatchLatch
-
13529000025 Tool Kit. Includes 13 to 15Tool Kit. Includes 13 to 15
-
14529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
15295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
16415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
17516001336 Front ReflectorFront Reflector
-
18516003034 Warning Label, Track SecurityWarning Label, Track Security
