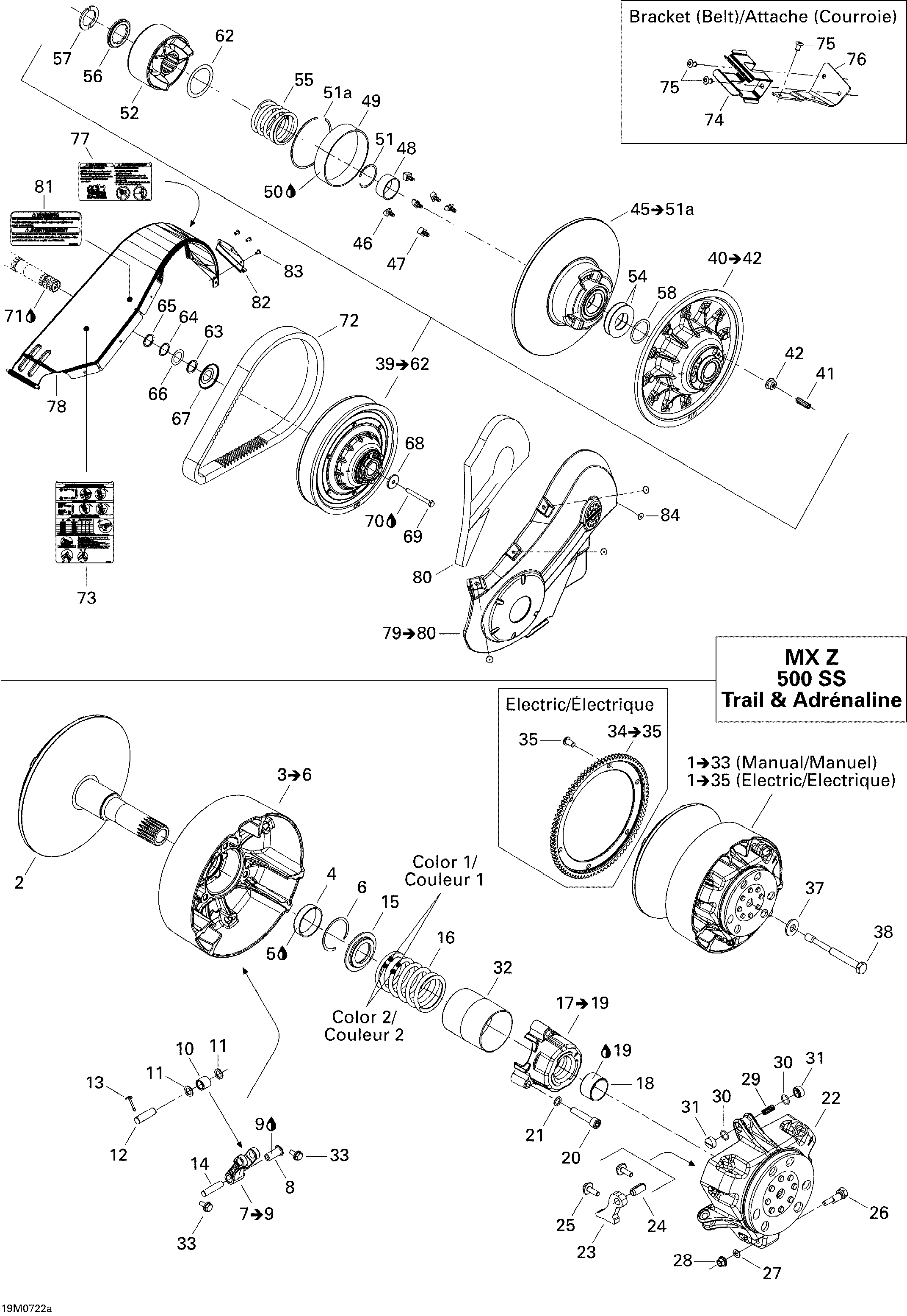

05- Pulley System 500SS для BRP Ski-Doo MX Z Trail 500SS - 2007
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417222762 RollerRoller
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16417222371 Spring, Green/whiteSpring, Green/white
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor CupGovernor Cup
-
23417222515 Ramp 412Ramp 412
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
26417222955 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
29417005700 SpringSpring
-
30732401030 O-RingO-Ring
-
31417005800 Slider ShoeSlider Shoe
-
32417009205 GuardGuard
-
33210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
34417222829 Ring Gear. Electrique StartRing Gear. Electrique Start
-
35250000243 Torx Screw M8 X 16, Scotch Grip. Electrique StartTorx Screw M8 X 16, Scotch Grip. Electrique Start
-
37250200006 Washer-spring Conical 14 mmWasher-spring Conical 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417127022 Fixed Flange Ass'yFixed Flange Ass'y
-
41206262599 Socket Set ScrewSocket Set Screw
-
42233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
45417126909 Sliding Flange Ass'y. Includes 45 to 51aSliding Flange Ass'y. Includes 45 to 51a
-
46417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
47417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
48417126901 BushingBushing
-
49417126902 BushingBushing
-
50413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
51371911200 CirclipCirclip
-
51a417126878 CirclipCirclip
-
52417126574 Came Ass'yCame Ass'y
-
54504099600 Stopper WasherStopper Washer
-
55417126688 Spring, GreenSpring, Green
-
56417126733 SpacerSpacer
-
57417126734 Half KeyHalf Key
-
58504112300 ShimShim
-
62417126322 Swivel AbutmentSwivel Abutment
-
63417300252 SpacerSpacer
-
64417300265 SpacerSpacer
-
65417300252 SpacerSpacer
-
66504112000 ShimShim
-
67417300238 ProtectorProtector
-
68517302322 Strength WasherStrength Washer
-
69207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
70293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
71293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
72417300197 Drive BeltDrive Belt
-
73516002616 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
74517281905 BracketBracket
-
75390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
76417300282 BracketBracket
-
77516002674 Emergency Starting LabelEmergency Starting Label
-
78417300213 Belt GuardBelt Guard
-
79417300301 Side Protector Ass'y. Includes 79 to 80Side Protector Ass'y. Includes 79 to 80
-
80417300246 FoamFoam
-
81516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
82417300216 Belt Guard BracketBelt Guard Bracket
-
83390909200 Avex RivetAvex Rivet
-
84293150103 Pop RivetPop Rivet
