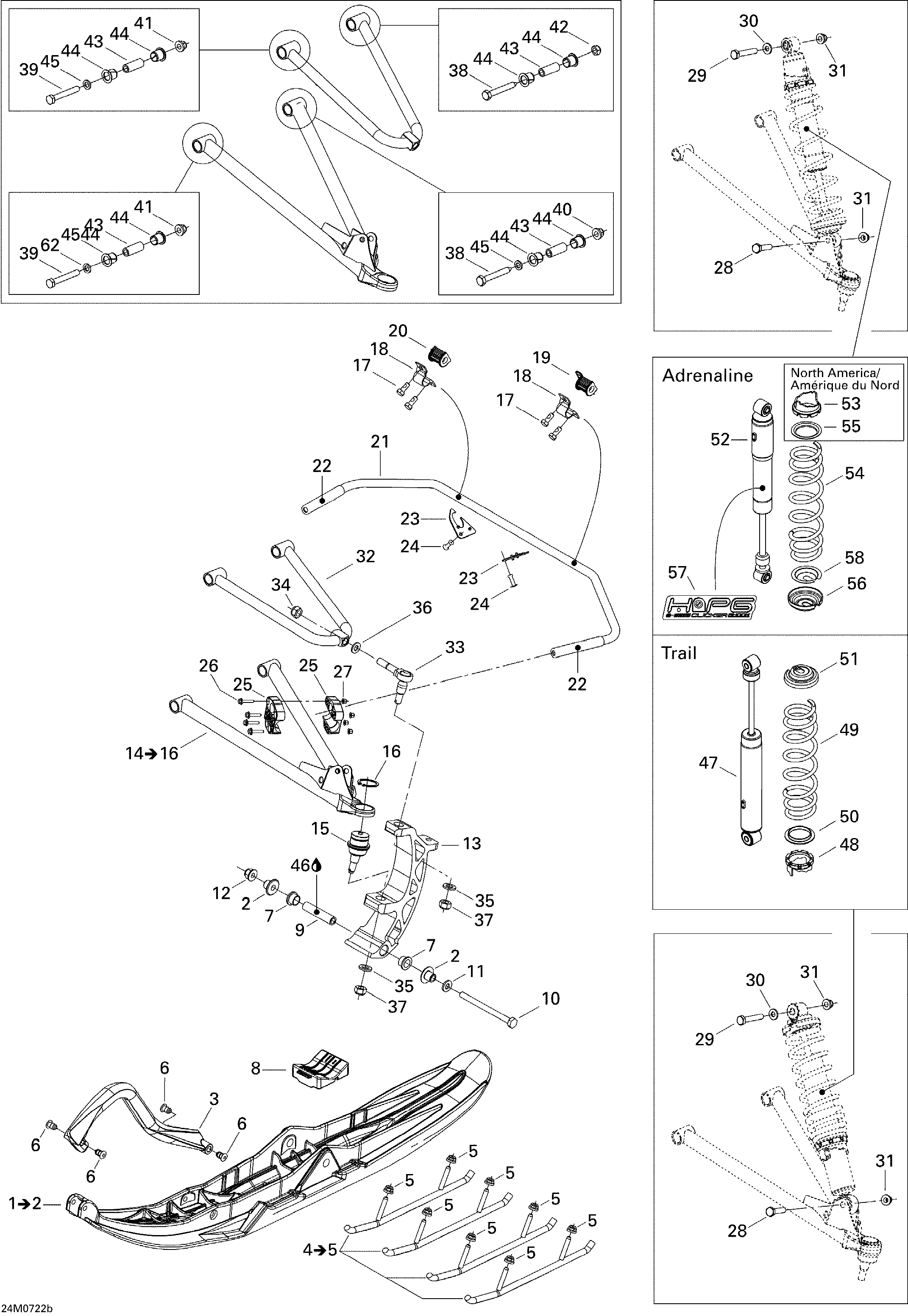

07- Front Suspension And Ski TRAIL для BRP Ski-Doo MX Z Trail 500SS - 2007
-
№АртикулНазвание
-
1505072154 RH Pilot SKI 5.7, Black. Includes 1 to 2RH Pilot SKI 5.7, Black. Includes 1 to 2
-
1505072155 LH Pilot SKI 5.7, Black. Includes 1 to 2LH Pilot SKI 5.7, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505070963 Handle, BlackHandle, Black
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Flanged Nut M10Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512500 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860512400 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505070664 LH BushingLH Bushing
-
20505070912 RH BushingRH Bushing
-
21505070948 StabilisatorStabilisator
-
22505071039 Stabilisator BootStabilisator Boot
-
23505071253 PlugPlug
-
24293150103 Pop RivetPop Rivet
-
25505071268 RH Slider HalfRH Slider Half
-
25505071269 LH Slider HalfLH Slider Half
-
26207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
27233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
28207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
29207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
30503189564 WasherWasher
-
31233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
32505071756 Upper ArmUpper Arm
-
33505072047 Upper Ball JointUpper Ball Joint
-
34250000047 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
35234021410 Flat Washer 12 mmFlat Washer 12 mm
-
36503189276 WasherWasher
-
37250000047 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
38250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
39250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
40250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
41250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
42250100073 Elastic Flanged Nut M10. RightElastic Flanged Nut M10. Right
-
42232501416 Elastic Flanged Nut M10. LeftElastic Flanged Nut M10. Left
-
43505070567 BushingBushing
-
44505070566 Arm BushingArm Bushing
-
45503189564 WasherWasher
-
46219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
47505071662 Front ShockFront Shock
-
48503183700 Cam 45°Cam 45°
-
49505071833 SpringSpring
-
50503187500 Spring GuideSpring Guide
-
51503140600 Spring StopperSpring Stopper
-
56503140600 Spring StopperSpring Stopper
-
57505072222 HPG DecalHPG Decal
-
58503141600 CapCap
