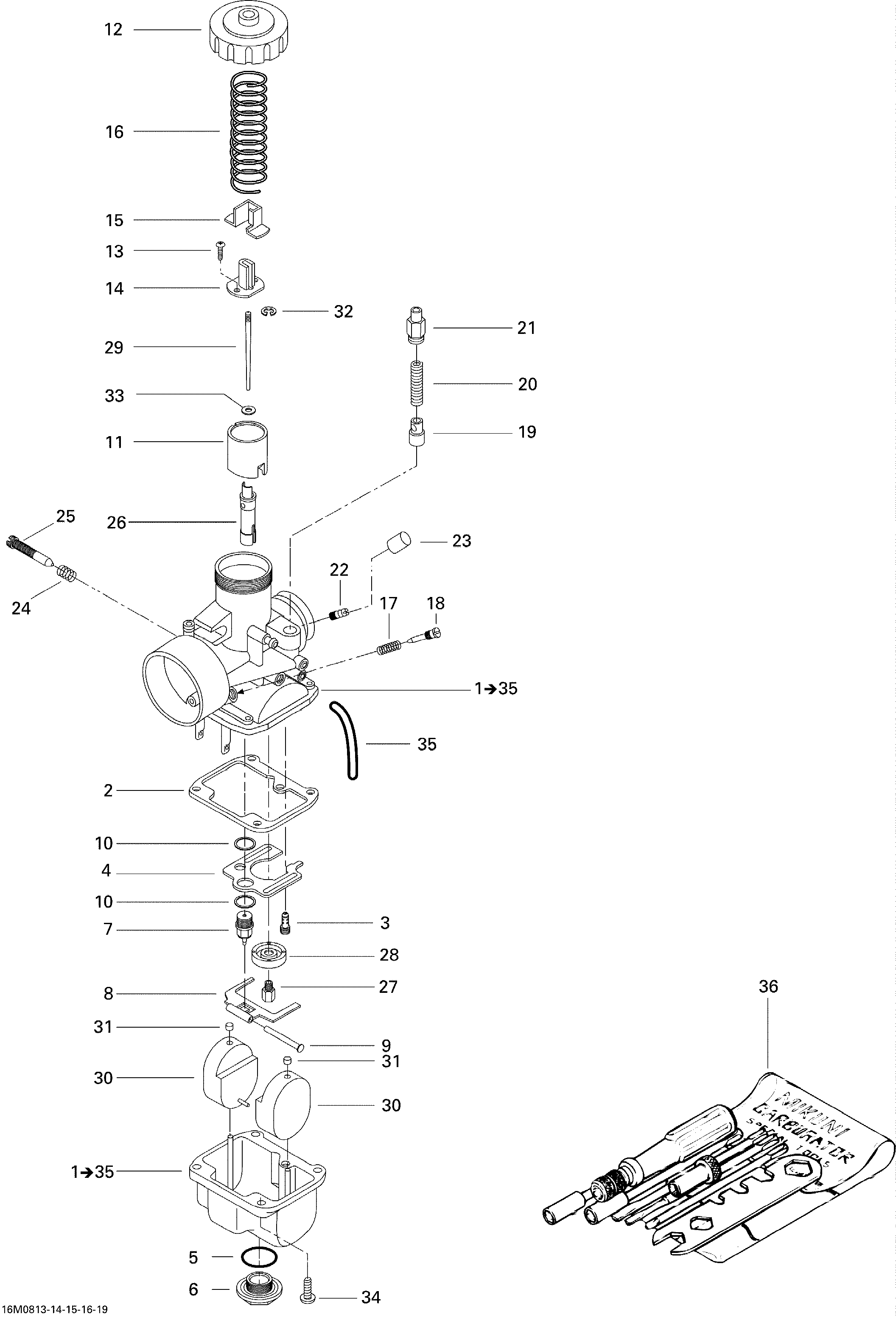

02- Carburetor для BRP Ski-Doo Freestyle Back Country 550F - 2008
-
№АртикулНазвание
-
1403138786 Carburetor VM30-214. Includes 1 to 35Carburetor VM30-214. Includes 1 to 35
-
2404104200 GasketGasket
-
3404109400 Pilot Jet 45Pilot Jet 45
-
4404109600 BaffleBaffle
-
5404107300 O-RingO-Ring
-
6404107400 Drain Plug ScrewDrain Plug Screw
-
7404147500 Needle Valve 1.2Needle Valve 1.2
-
8404107600 Float LeverFloat Lever
-
9404103300 Lever PinLever Pin
-
10404101600 Seat WasherSeat Washer
-
11404128400 Piston Valve 2.5Piston Valve 2.5
-
12404103700 CoverCover
-
13404121300 Screw With WasherScrew With Washer
-
14404161987 PackingPacking
-
15404122100 CoverCover
-
16404154800 SpringSpring
-
17404101800 SpringSpring
-
18404102300 Air ScrewAir Screw
-
19404161986 Plunger Ass'yPlunger Ass'y
-
20404127400 SpringSpring
-
21404161100 Guide HolderGuide Holder
-
22404153400 NippleNipple
-
23404156600 CapCap
-
24404101700 SpringSpring
-
25404109700 Idle Speed ScrewIdle Speed Screw
-
26404162072 Needle Jet 159-P-7Needle Jet 159-P-7
-
27404119000 Main Jet, MJ 190Main Jet, MJ 190
-
28404110900 Baffle RingBaffle Ring
-
29404162113 Needle J8-6BFY46Needle J8-6BFY46
-
31404105800 CapCap
-
32404152400 E-RingE-Ring
-
33404117000 PackingPacking
-
34404102000 Screw With Lock WasherScrew With Lock Washer
-
35404161991 HoseHose
-
36404112000 Tool KitTool Kit
