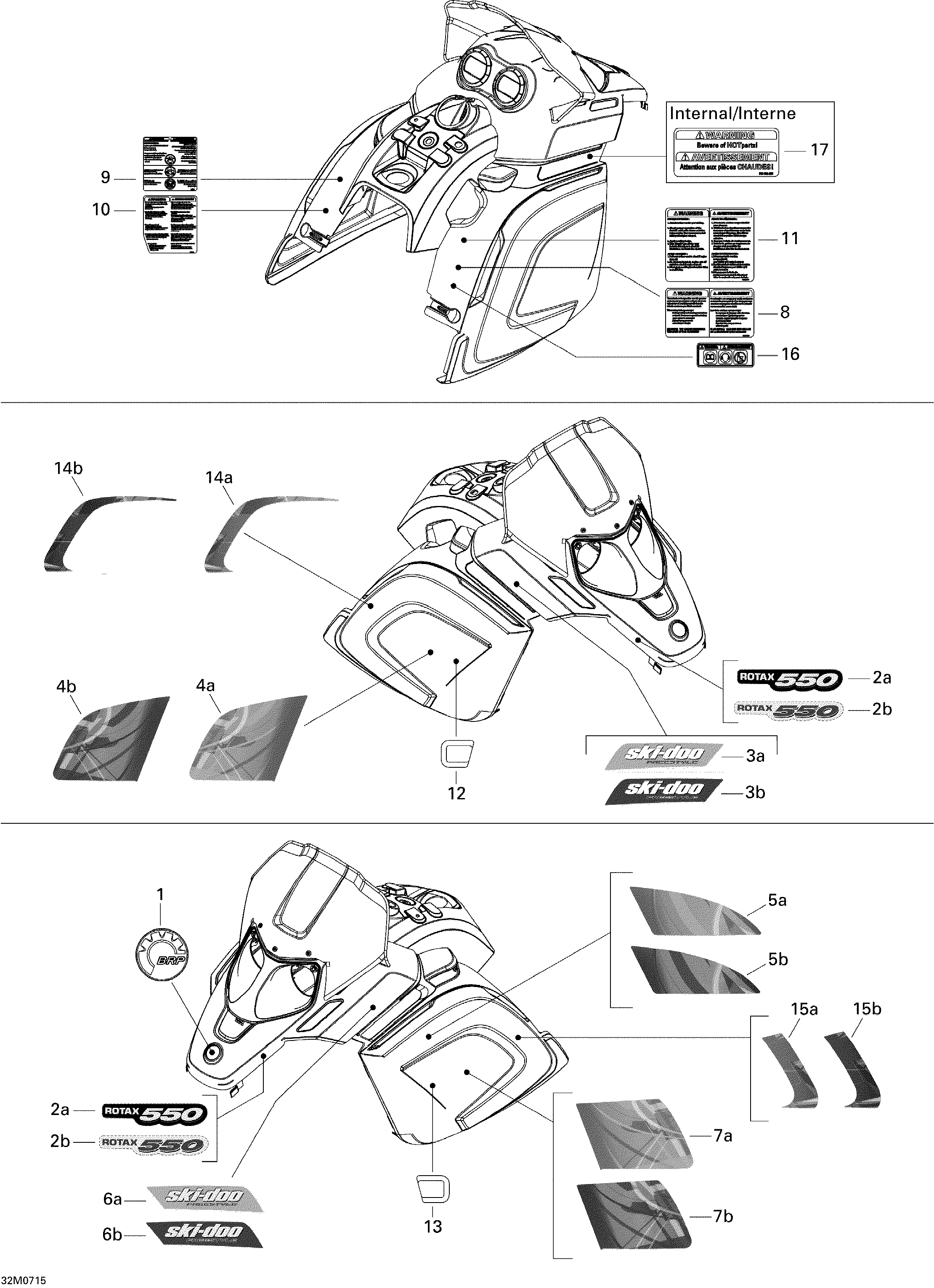

09- Decals для BRP Ski-Doo Freestyle Back Country 550F - 2008
-
№АртикулНазвание
-
1219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
2a516003405 Hood Decal, Rotax 550. Black-Grey ModelHood Decal, Rotax 550. Black-Grey Model
-
2b516003542 Hood Decal, Rotax 550. Grey-Red ModelHood Decal, Rotax 550. Grey-Red Model
-
3a516003421 RH Upper Side Decal. Black-Grey ModelRH Upper Side Decal. Black-Grey Model
-
3b516003428 RH Upper Side Decal. Grey-Red ModelRH Upper Side Decal. Grey-Red Model
-
4a516003423 RH Side Decal. Black-Grey ModelRH Side Decal. Black-Grey Model
-
4b516003430 RH Side Decal. Grey-Red ModelRH Side Decal. Grey-Red Model
-
5a516003424 LH Side Decal. Black-Grey ModelLH Side Decal. Black-Grey Model
-
5b516003431 LH Side Decal. Grey-Red ModelLH Side Decal. Grey-Red Model
-
6a516003420 LH Upper Side Decal. Black-Grey ModelLH Upper Side Decal. Black-Grey Model
-
6b516003427 LH Upper Side Decal. Grey-Red ModelLH Upper Side Decal. Grey-Red Model
-
7A516003422 LH Side Decal. Black-Grey ModelLH Side Decal. Black-Grey Model
-
7b516003429 LH Side Decal. Grey-Red ModelLH Side Decal. Grey-Red Model
-
8516003026 Security Label, Passenger Number. Grey-Red ModelSecurity Label, Passenger Number. Grey-Red Model
-
9516002908 Security Label, GeneralSecurity Label, General
-
10516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
11516003024 Security Label, StartingSecurity Label, Starting
-
12516001910 RH Protector DecalRH Protector Decal
-
13516001911 LH Protector DecalLH Protector Decal
-
14a516003426 RH External Side Decal. Black-Grey ModelRH External Side Decal. Black-Grey Model
-
14b516003433 RH External Side Decal. Grey-Red ModelRH External Side Decal. Grey-Red Model
-
15a516003425 LH External Side Decal. Black-Grey ModelLH External Side Decal. Black-Grey Model
-
15b516003432 LH External Side Decal. Grey-Red ModelLH External Side Decal. Grey-Red Model
-
16516003027 Europe Pictogram Decal. EuropeEurope Pictogram Decal. Europe
-
17516002965 Security Label, Hot PartsSecurity Label, Hot Parts
