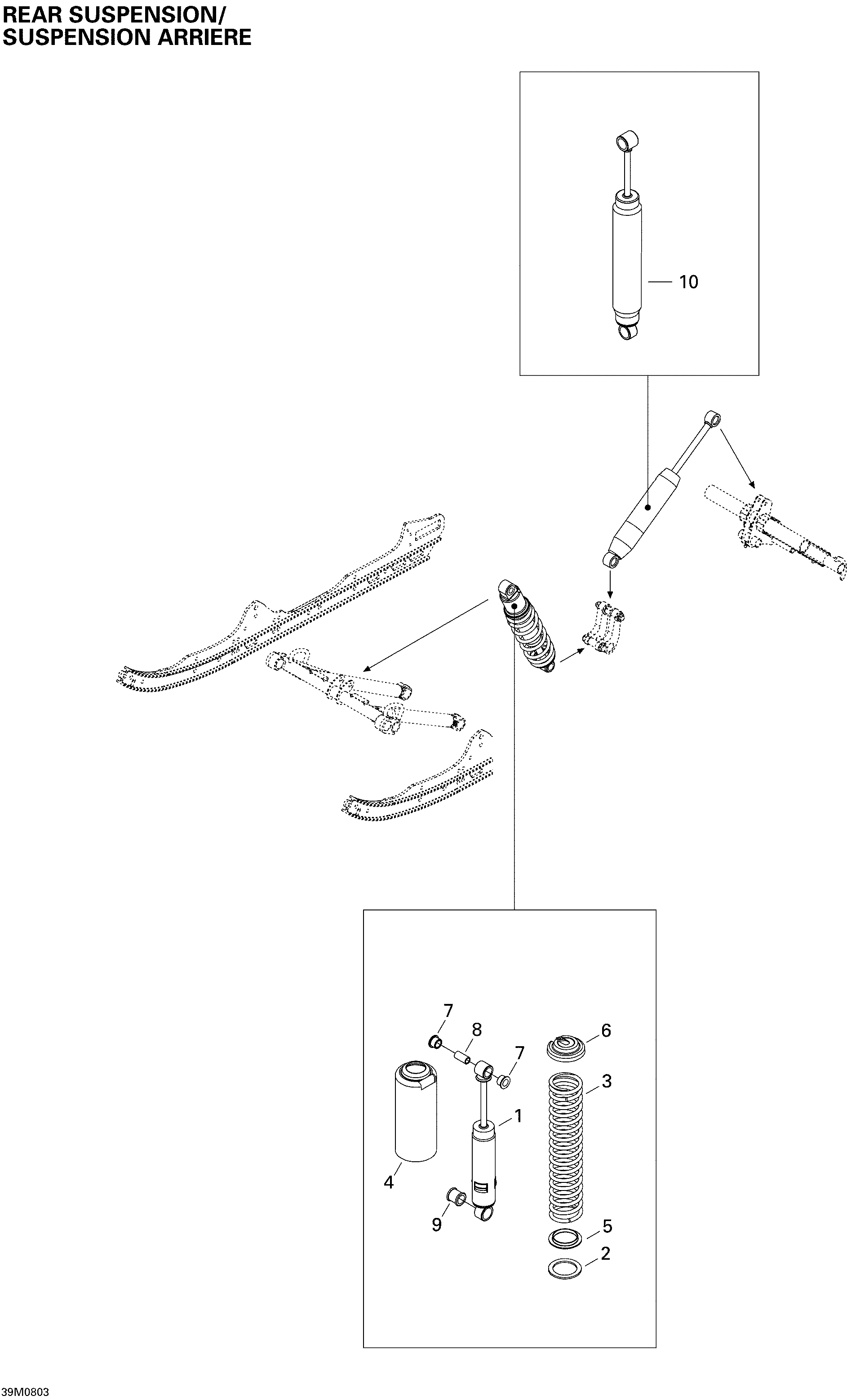

08- Rear Suspension Shocks для BRP Ski-Doo GSX 550F - 2008
-
№АртикулНазвание
-
1503190992 Center ShockCenter Shock
-
2505070401 WasherWasher
-
3415070100 SpringSpring
-
4503191126 ProtectorProtector
-
5503187500 Spring GuideSpring Guide
-
6503140600 Spring StopperSpring Stopper
-
7503189117 CushionCushion
-
8503189282 BushingBushing
-
9503189271 CushionCushion
-
10503190991 Rear ShockRear Shock
