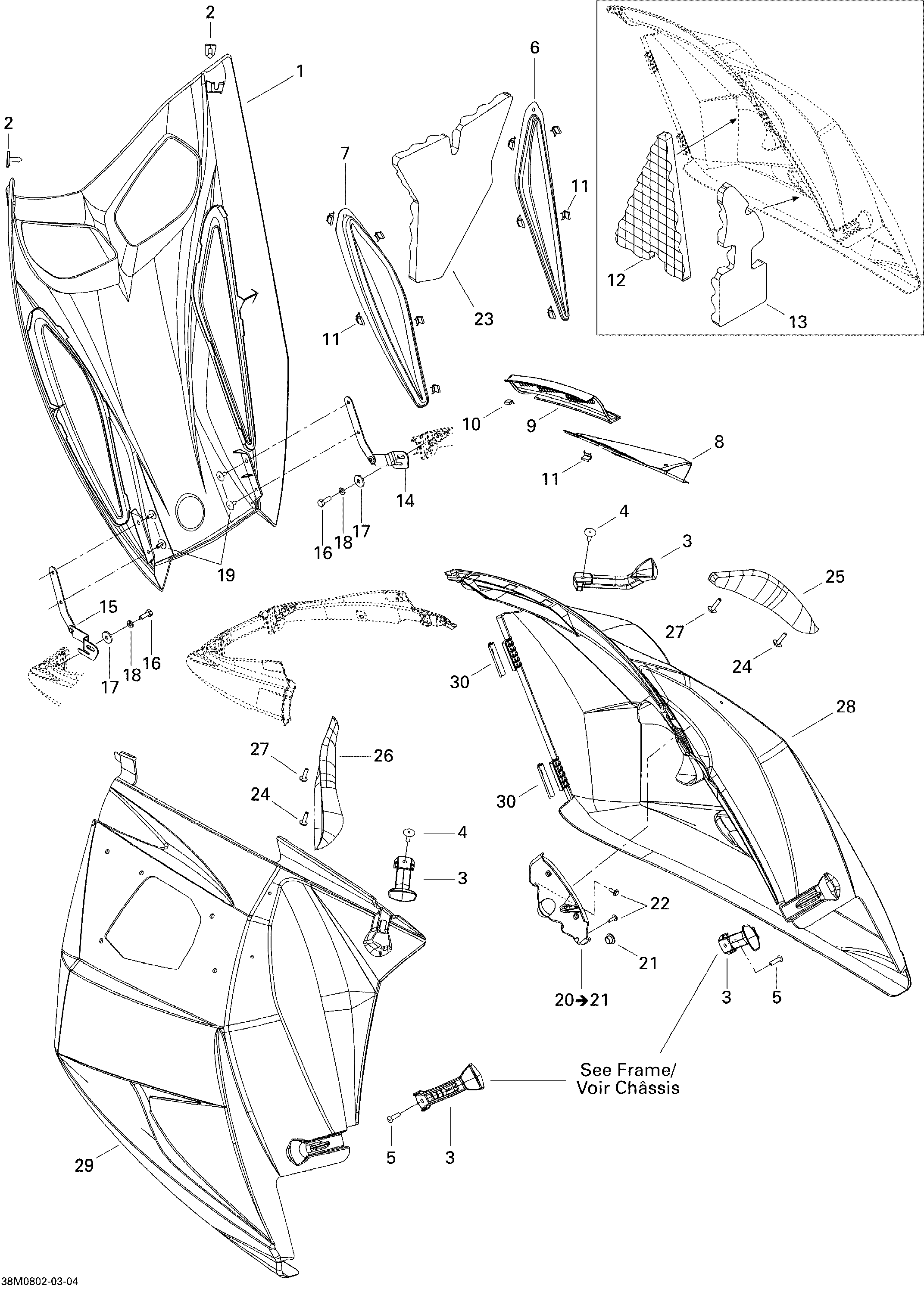

09- Hood для BRP Ski-Doo GSX 550F - 2008
-
№АртикулНазвание
-
1517302788 Hood, BlackHood, Black
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517302936 RH Hood GrillRH Hood Grill
-
7517302937 LH Hood GrillLH Hood Grill
-
8517302938 RH Panel GrillRH Panel Grill
-
9509000333 Air Intake GrillAir Intake Grill
-
10517302674 ClipClip
-
11517302789 ClipClip
-
12517303082 RH Panel Front FoamRH Panel Front Foam
-
13517303492 RH Panel Rear FoamRH Panel Rear Foam
-
14517303668 RH Hinge Ass'yRH Hinge Ass'y
-
15517303669 LH Hinge Ass'yLH Hinge Ass'y
-
16207161844 Hex. Screw M6 X 18Hex. Screw M6 X 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer M6, BlackLock Washer M6, Black
-
19390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
20517303482 RH ConsoleRH Console
-
21275500241 Cap, BlackCap, Black
-
22241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
23517303466 Hood FoamHood Foam
-
24250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
25517302800 RH Air DeflectorRH Air Deflector
-
26517302801 LH Air DeflectorLH Air Deflector
-
27250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
28517303254 RH Panel, BlackRH Panel, Black
-
29517303255 LH Panel, BlackLH Panel, Black
-
30517302823 Hinge LockHinge Lock
