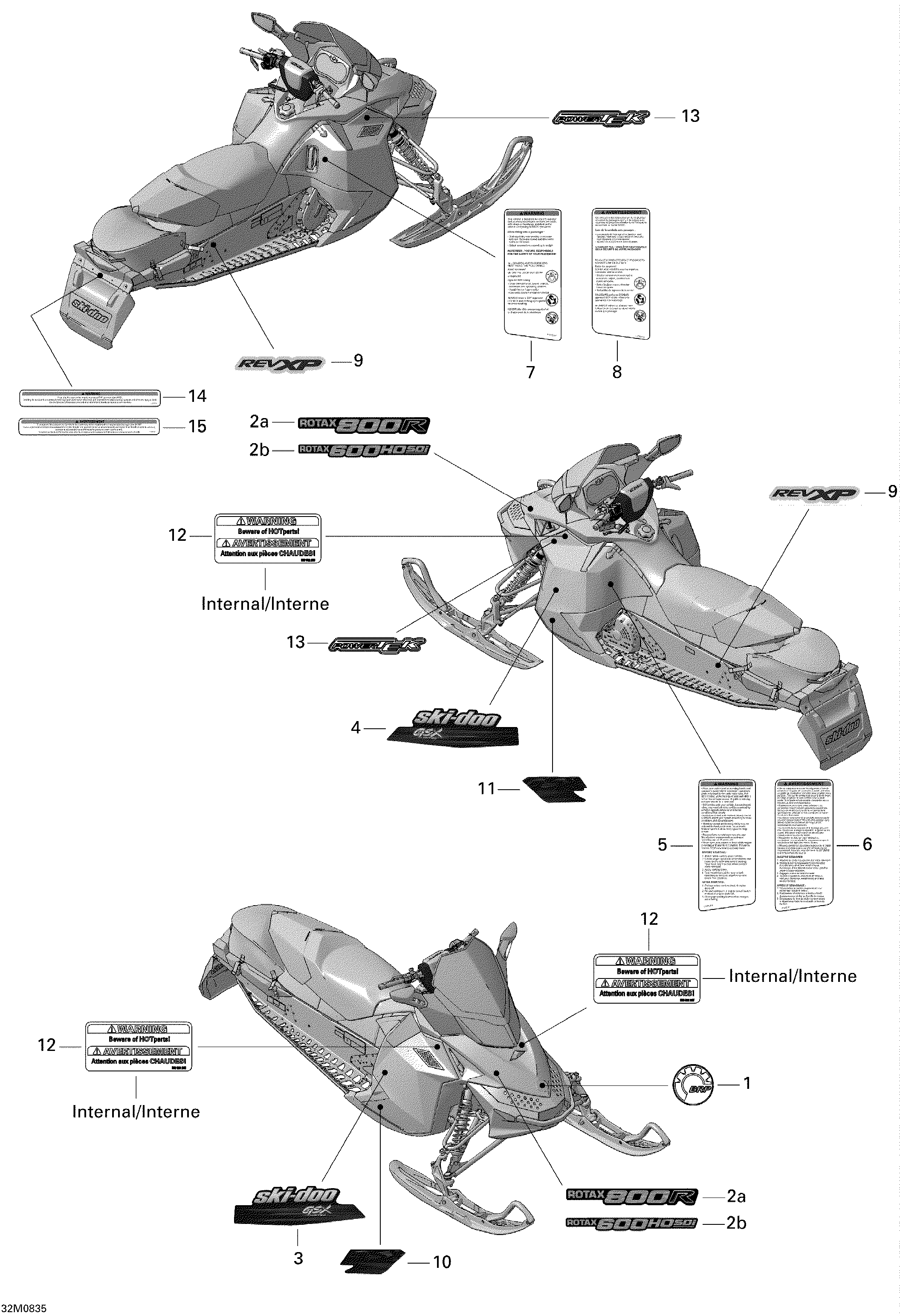

09- Decals 600HO SDI для BRP Ski-Doo GSX LTD 600 HO SDI - 2008
-
№АртикулНазвание
-
1219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
2b516003534 Hood Decal, Rotax 600HOSDI. 600HO SDIHood Decal, Rotax 600HOSDI. 600HO SDI
-
3516003547 RH Lower DecalRH Lower Decal
-
4516003546 LH Lower DecalLH Lower Decal
-
5516003556 Decal Security, EnglishDecal Security, English
-
6516003557 Decal Security, FrenchDecal Security, French
-
7516003558 Decal Security, EnglishDecal Security, English
-
8516003559 Decal Security, FrenchDecal Security, French
-
9516003615 Decal REV XPDecal REV XP
-
10516003549 RH Lower DecalRH Lower Decal
-
11516003548 LH Lower DecalLH Lower Decal
-
12516002965 Security Label, Hot PartsSecurity Label, Hot Parts
-
14516003578 Warning Decal, EnglishWarning Decal, English
-
15516003579 Warning Decal, FrenchWarning Decal, French
