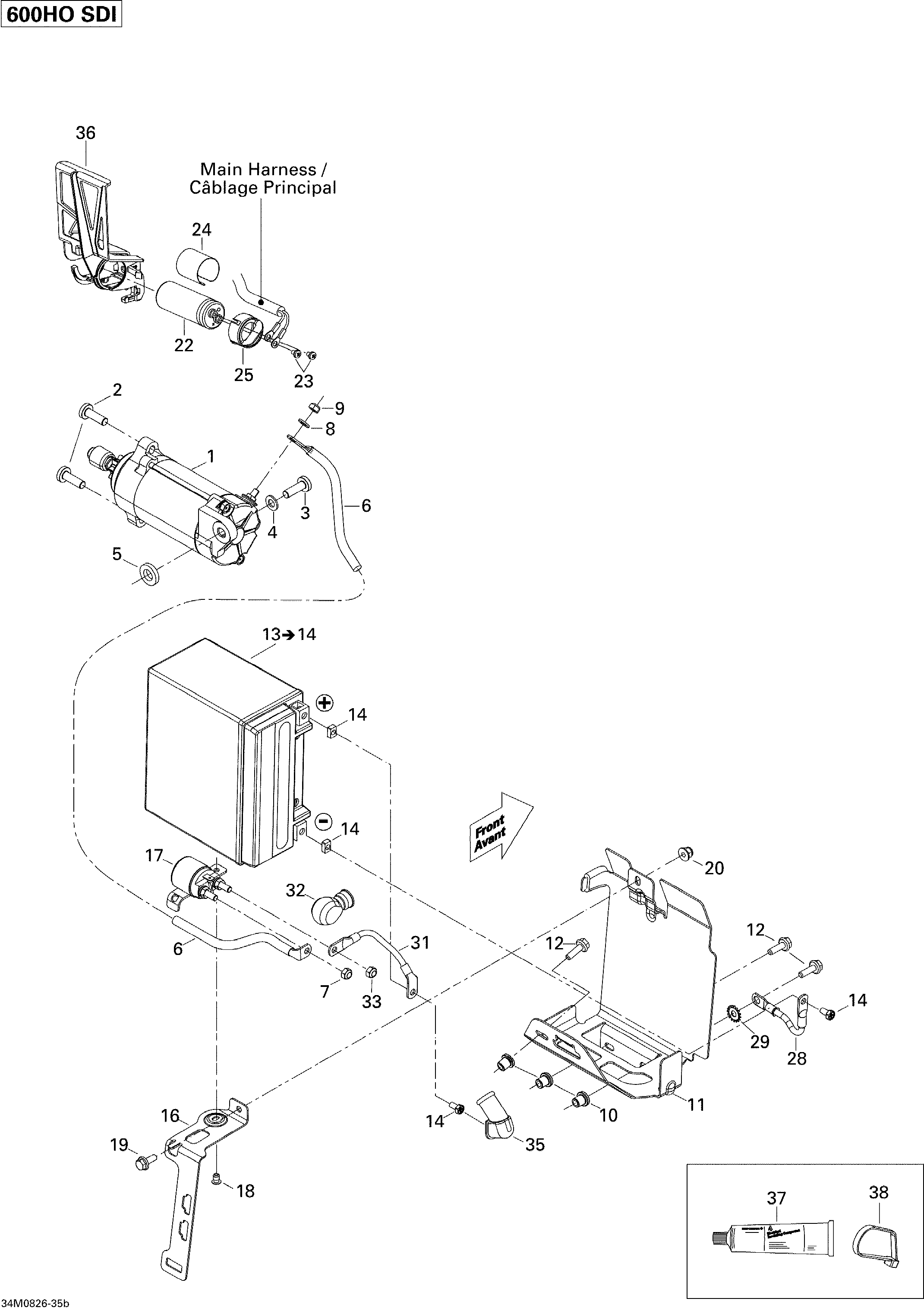

10- Battery And Starter 600HO SDI для BRP Ski-Doo GSX LTD 600 HO SDI - 2008
-
№АртикулНазвание
-
1515176399 StarterStarter
-
2250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
3207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
4250200008 Flat Washer 8 mmFlat Washer 8 mm
-
5515176500 WasherWasher
-
6515176534 Battery WireBattery Wire
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10415107300 InsertInsert
-
11515176601 Battery SupportBattery Support
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13410301203 Battery, 18 Amperes. Includes 13 to 14Battery, 18 Amperes. Includes 13 to 14
-
14295500849 Battery Fastener KitBattery Fastener Kit
-
16515176368 Battery StripBattery Strip
-
17515176501 Starter RelayStarter Relay
-
18390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
19207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22515176387 CapacitorCapacitor
-
23515176542 Screw 10-32 X 5/16''Screw 10-32 X 5/16''
-
24516002976 Capacitor DecalCapacitor Decal
-
25515176211 CapCap
-
28515176358 Ground WireGround Wire
-
29250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
31515176535 Battery WireBattery Wire
-
32570151000 Protection CapProtection Cap
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35710000495 Protector CapProtector Cap
-
36515176513 SupportSupport
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
