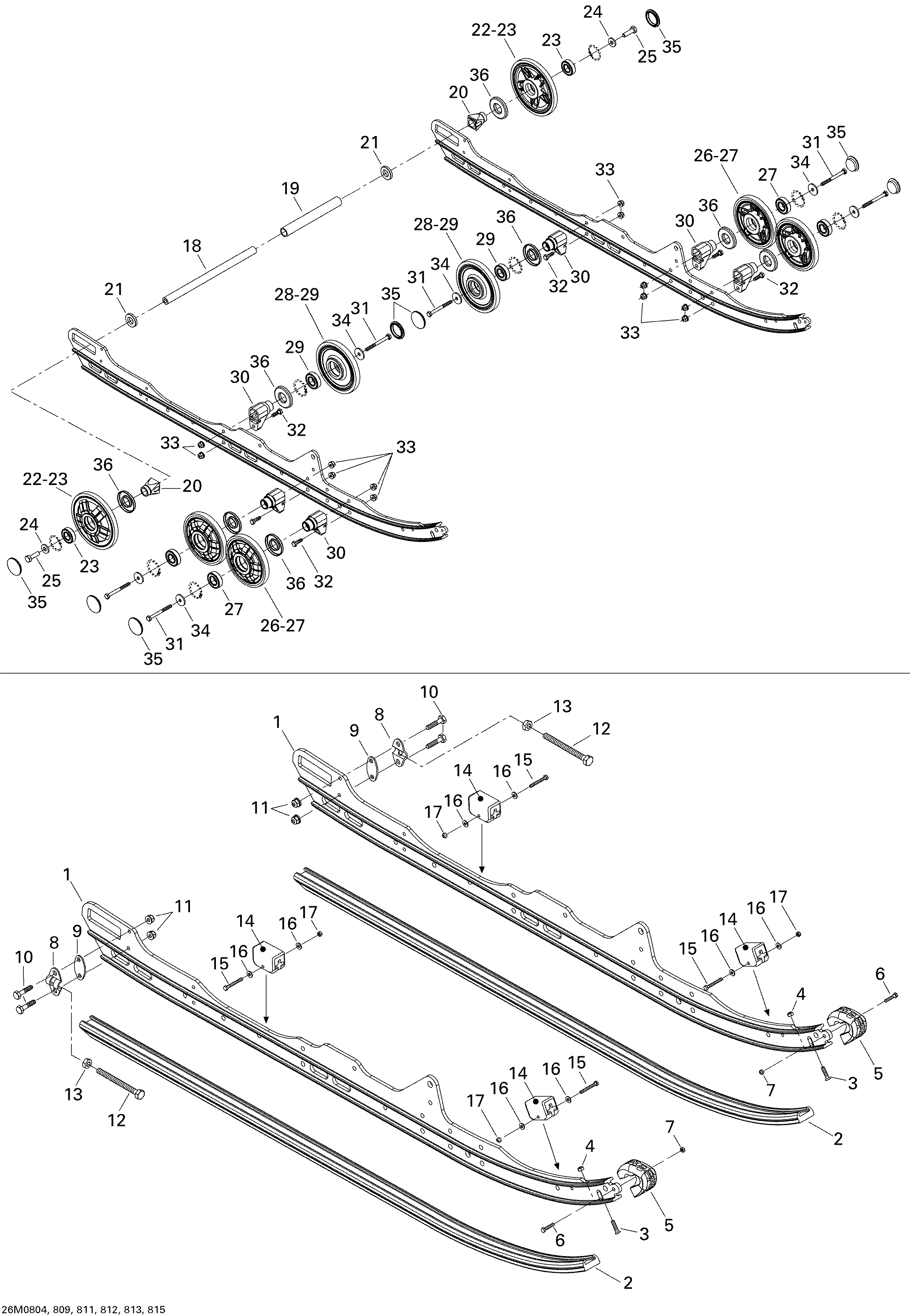

08- Rear Suspension для BRP Ski-Doo GTX 550F - 2008
-
№АртикулНазвание
-
1503191107 Runner 136''Runner 136''
-
2503189639 ShoeShoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8503155300 TensionerTensioner
-
9503189160 Tensioner SpacerTensioner Spacer
-
10207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14503190905 Rubber Stopper Ass'yRubber Stopper Ass'y
-
15207054044 Hex. Screw M5 X 40Hex. Screw M5 X 40
-
16391301700 WasherWasher
-
17232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
18503190429 Rear AxleRear Axle
-
19503191108 SpacerSpacer
-
20503190428 Rear Wheel SpacerRear Wheel Spacer
-
21503190432 WasherWasher
-
22503191109 Wheel 165 With Pattern Ass'y, Yellow. Yellow, Includes 23Wheel 165 With Pattern Ass'y, Yellow. Yellow, Includes 23
-
22503191110 Wheel 165 mm, Full Moon. Full Moon, Includes 23Wheel 165 mm, Full Moon. Full Moon, Includes 23
-
22503191111 Wheel 165 mm, Viper Red. Viper Red, Includes 23Wheel 165 mm, Viper Red. Viper Red, Includes 23
-
23503190396 Ball BearingBall Bearing
-
24503190439 WasherWasher
-
25250000019 Hex. Screw With NylonHex. Screw With Nylon
-
26503191313 Wheel 141 With Pattern Ass'y, Full Moon. Full Moon, Includes 27Wheel 141 With Pattern Ass'y, Full Moon. Full Moon, Includes 27
-
27503190396 Ball BearingBall Bearing
-
28503191316 Wheel 141 Ass'y. Includes 29Wheel 141 Ass'y. Includes 29
-
29503190396 Ball BearingBall Bearing
-
30503190580 SupportSupport
-
31207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
32207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34211200041 WasherWasher
-
35570063600 Wheel CapWheel Cap
-
36503190434 Labyrinth SealLabyrinth Seal
