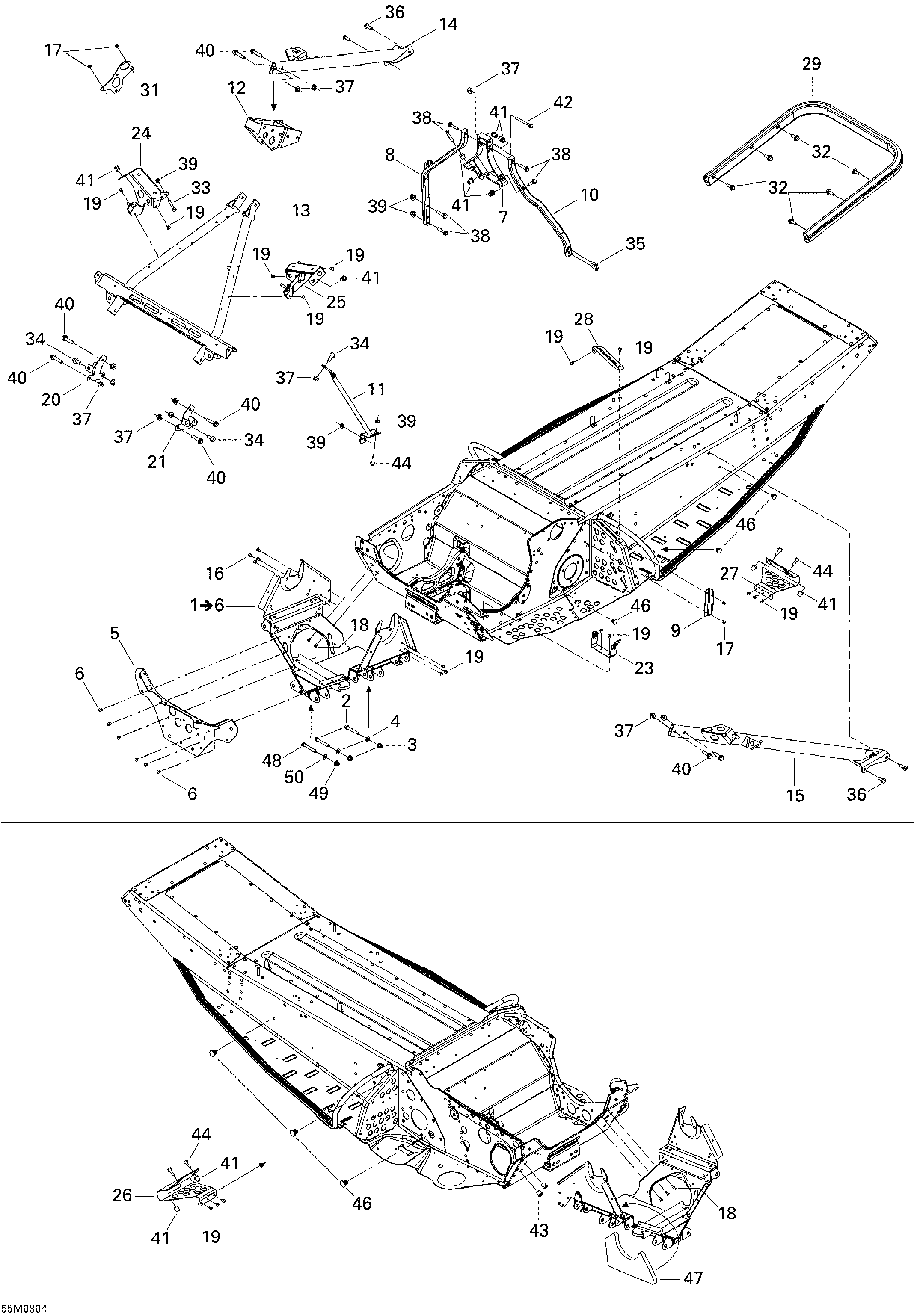

09- Frame and Components для BRP Ski-Doo GTX 550F - 2008
-
№АртикулНазвание
-
1518325423 Cross Member. Includes 1 to 6Cross Member. Includes 1 to 6
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6390909100 Avex RivetAvex Rivet
-
7518324377 Center StiffenerCenter Stiffener
-
8518324397 RH Handle SupportRH Handle Support
-
9518317504 Cable ProtectorCable Protector
-
10518324376 LH Handle SupportLH Handle Support
-
11518323472 Brace, BlackBrace, Black
-
12518323854 Bracket BlockBracket Block
-
13518324739 Upper Cross MemberUpper Cross Member
-
14518324182 RH MemberRH Member
-
15518324183 LH MemberLH Member
-
16293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18390909100 Avex RivetAvex Rivet
-
19390909200 Avex RivetAvex Rivet
-
20518322461 RH Shock BracketRH Shock Bracket
-
21518322462 LH Shock BracketLH Shock Bracket
-
23518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
24518324513 RH Console SupportRH Console Support
-
25518323536 LH Console SupportLH Console Support
-
26518324391 RH Toe HoldRH Toe Hold
-
27518324392 LH Toe HoldLH Toe Hold
-
28518323105 Plate, BlackPlate, Black
-
29518324401 Rear Bumper. EuropeRear Bumper. Europe
-
29518325223 Rear Bumper. North AmericaRear Bumper. North America
-
31518324315 PlatePlate
-
32236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
33207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
34207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
35205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
36250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
37233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
38250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
41415107300 InsertInsert
-
42207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
43293450166 InsertInsert
-
44207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
46518321954 Fastener PanelFastener Panel
-
47518323453 RH Front FoamRH Front Foam
-
48207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
49233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50234081410 Flat Washer 8 mmFlat Washer 8 mm
