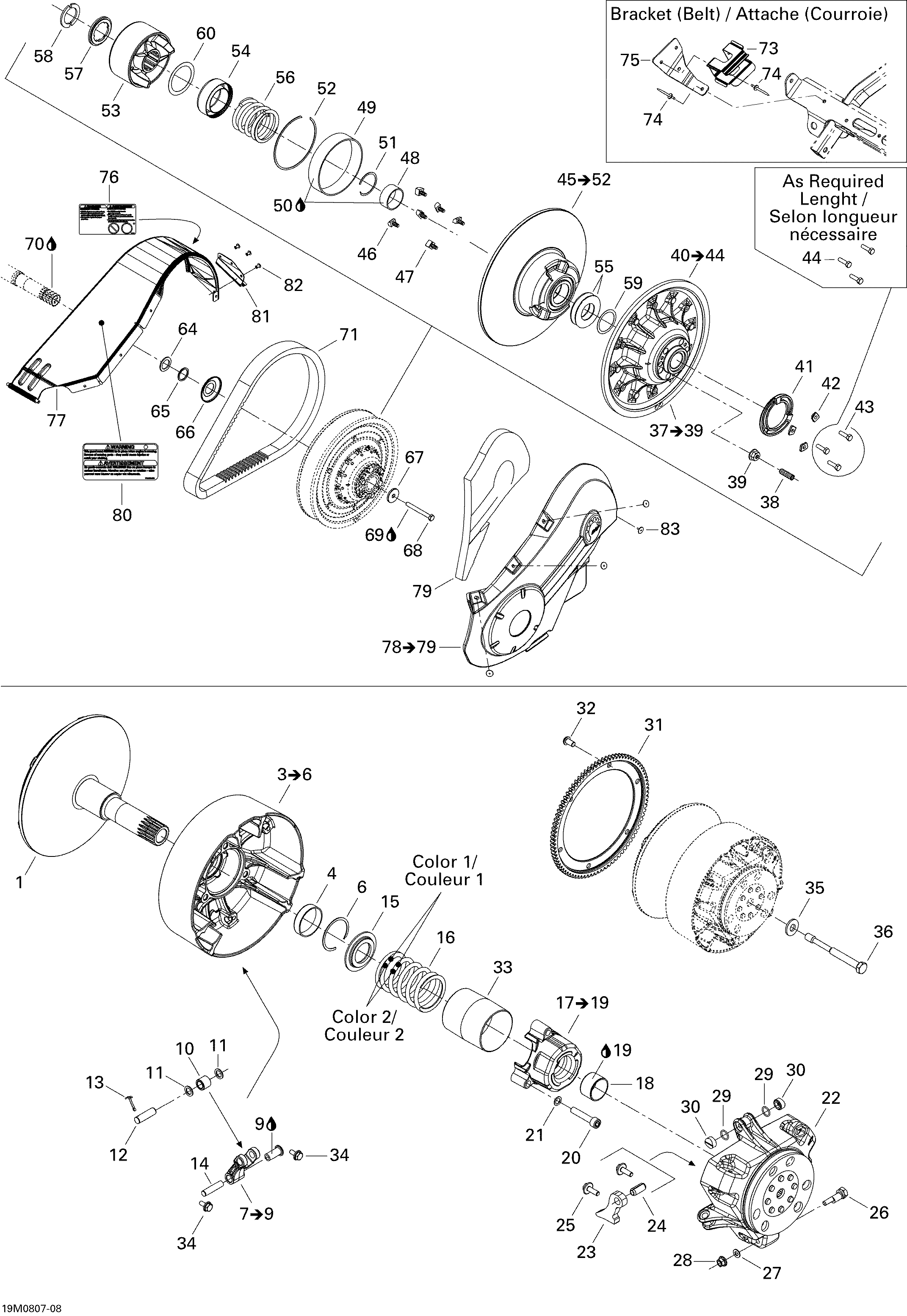

05- Pulley System для BRP Ski-Doo GTX SPORT 600 HO SDI - 2008
-
№АртикулНазвание
-
1417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417222762 RollerRoller
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414689500 Spring, Blue/yellowSpring, Blue/yellow
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor CupGovernor Cup
-
23417222596 Ramp 410Ramp 410
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
26417222955 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417223021 Slider ShoeSlider Shoe
-
31417223042 Ring GearRing Gear
-
32250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
33417009205 GuardGuard
-
34210361296 Hex. Forming Screw M6 X 12Hex. Forming Screw M6 X 12
-
35250200006 Spring Washer 14 mmSpring Washer 14 mm
-
36417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126807 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
44207162244 Hex. Screw M6 X 22Hex. Screw M6 X 22
-
45417126909 Sliding Flange Ass'ySliding Flange Ass'y
-
46417126373 Rear Cam Slider Shoe, RedRear Cam Slider Shoe, Red
-
47417126374 Front Cam Slider Shoe, BlackFront Cam Slider Shoe, Black
-
48417126901 BushingBushing
-
49417126902 BushingBushing
-
50413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
51371911200 CirclipCirclip
-
52417126878 CirclipCirclip
-
53417126385 Cam Ass'yCam Ass'y
-
54417126381 GuardGuard
-
55504099600 Stopper WasherStopper Washer
-
56417126687 Spring, BlackSpring, Black
-
57417126733 SpacerSpacer
-
58417126734 Half KeyHalf Key
-
59504112300 ShimShim
-
60417126322 Swivel AbutmentSwivel Abutment
-
64417300252 SpacerSpacer
-
64417300265 SpacerSpacer
-
65504112000 ShimShim
-
66417300238 ProtectorProtector
-
67517302322 Strength WasherStrength Washer
-
68207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
69293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
70293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
71417300197 Drive BeltDrive Belt
-
73517281905 BracketBracket
-
74390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
75417300282 BracketBracket
-
76516002674 Emergency Starting LabelEmergency Starting Label
-
77417300213 Belt GuardBelt Guard
-
78417300301 Side Protector Ass'y. Includes 78 to 79Side Protector Ass'y. Includes 78 to 79
-
79417300246 FoamFoam
-
80516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
81417300216 Belt Guard BracketBelt Guard Bracket
-
82390909200 Avex RivetAvex Rivet
-
83293150103 Pop RivetPop Rivet
