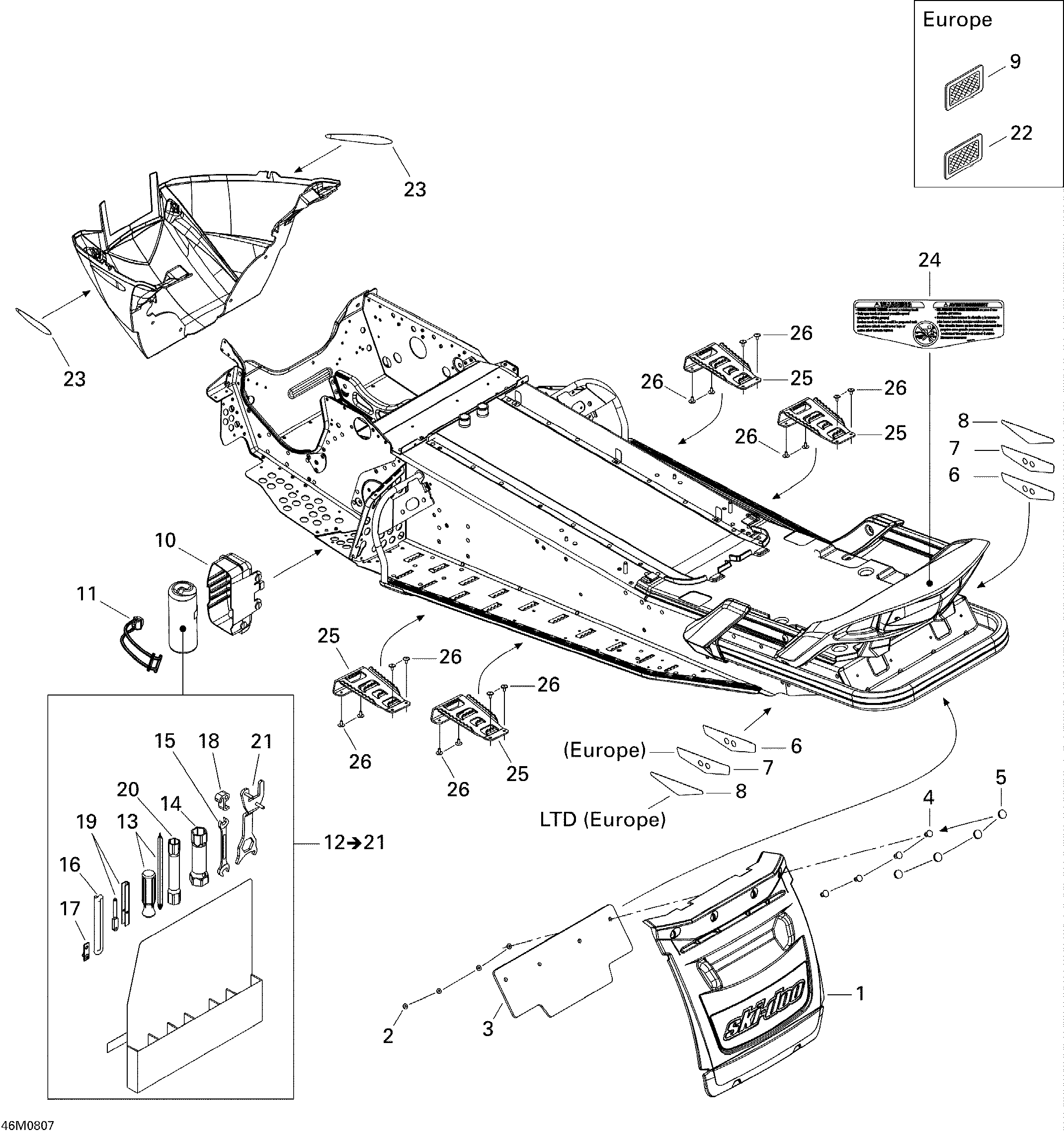

09- Utilities SPORT для BRP Ski-Doo GTX SPORT 600 HO SDI - 2008
-
№АртикулНазвание
-
1520000502 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000382 Rear ReflectorRear Reflector
-
7520000383 Rear Reflector. EuropeRear Reflector. Europe
-
9520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
10520000322 TrunkTrunk
-
11520000528 LatchLatch
-
12529000036 Tool Kit. Includes 12 to 21Tool Kit. Includes 12 to 21
-
13529000004 Driver ScrewDriver Screw
-
14529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
15529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
16412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
17529024400 Rope AdaptorRope Adaptor
-
18529019400 Starter GripStarter Grip
-
19529035501 Spacing ToolSpacing Tool
-
20295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
21520000721 WrenchWrench
-
22415037900 Reflector, White. EuropeReflector, White. Europe
-
23516001336 Front ReflectorFront Reflector
-
24516003034 Warning Label, Track SecurityWarning Label, Track Security
-
25520000492 Footrest. SportFootrest. Sport
-
26390409600 Pop Rivet 3/16''Pop Rivet 3/16''
